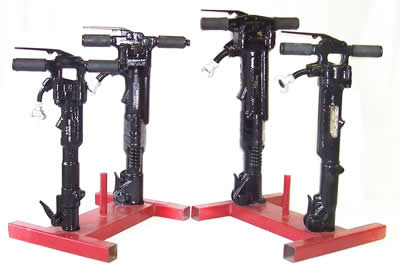

Paving Breakers
The 90# Paving Breaker is designed for big jobs such as heavy demolition and concrete breaking. The 60# Paving Breaker is a versatile, hard-hitting tool that can be used for medium to heavy demolition work and concrete breaking, and is the perfect all around breaker. The 40# and 30# Paving Breaker is a rugged, yet lightweight paving breaker designed for light to medium construction work. It is ideally suited for plant maintenance work such as light demolition of floors, pavement, frozen ground and masonry walls and is very popular for bridge deck work.
Features:
These tools are manufactured and assembled in the United States. They are made from the highest quality material to provide industrial quality performance.
- Rugged Thor-type Tools
- Multiple chuck sizes
- Working pressure of 90-100 psi.
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
Sand Rammer, Bench Rammer, Backfill Tamper
| Part No. | Description | Weight (lb) |
Length (in) |
Bore (in) |
Stroke (in) |
BPM | Chuck Size (in) |
Air Inlet (NPT) |
Air Cons (cfm) |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX30PB-8 | 30# Paving Breaker | 34 | 22.5 | 1.75 | 3.375 | 1550 | 7⁄8x3-1⁄4 | 3⁄8 | 49 | $1,625.00
|
| TX30PB-1 | 30# Paving Breaker | 34 | 22.5 | 1.75 | 3.375 | 1500 | <1x4-1⁄4 | 3⁄8 | 49 | $1,625.00
|
| 40# Paving Breaker | 42 | 25.125 | 1.73 | 5.75 | 900 | 1x4-1⁄4 | 1⁄2x3⁄4 | 56 | $1,850.00
|
|
| TX60PB-4 | 60# Paving Breaker | 67 | 25.625 | 2.25 | 4.0937 | 1400 | 1-1⁄4x6 | 3⁄4 | 59 | $1,855.00
|
| TX60PB-8 | 60# Paving Breaker | 67 | 25.625 | 2.25 | 4.0937 | 1400 | 1-1⁄8x6 | 3⁄4 | 59 | $1,855.00
|
| TX90PB-4 | 90# Paving Breaker | 92.5 | 28.75 | 2.625 | 6.0625 | 1250 | <1-1⁄4x6 | 3⁄4 | 75 | $1,910.00
|
| TX90PB-8 | 90# Paving Breaker | 92.5 | 28.75 | 2.625 | 6.0625 | 1250 | <1-1⁄8x6 | 3⁄4 | 75 | $1,910.00
|
| TX60SD | 60# Spike Driver | 67 | 25.625 | 2.25 | 4.0937 | 1400 | 3⁄4 | 59 | $2,155.00
|
|
| TX90SD | 90# Spike Driver | 92.5 | 28.75 | 2.625 | 6.0625 | 1250 | sup>3⁄4 | 75 | $2,330.00
|
| CONSUMABLE TOOLS | |
|---|---|
| Paving Breaker Tools | Post Driver Tools |
| ACCESSORIES | ||
|---|---|---|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check | WCSML | $11.00
|
| Hose Whip Assembly with 3.7oz Lubricator | TX7HW | $99.10
|
| Hose Whip Assembly with 7oz Lubricator | TX12HW | $134.25
|
| Air King Universal Coupling | AM8 | $12.00
|
