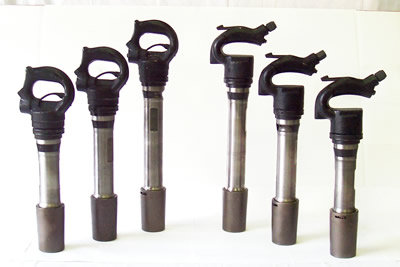

Rivet Busters
Pound for pound, there is no hammer with more hitting power than a rivet buster. Even a paving breaker would need to be at least twice as heavy to deliver an equivalent blow. This super-power can still be controlled thanks to low blow frequency and teasing throttle. That's why the rivet buster is one of the favorite tools of demolition contractors in the US. Users have discovered many new applications for rivet busters for working in both concrete and steel. No longer is the buster used exclusively by iron workers for forming and cutting rivets, but has now found its way into the hands of operators who need the most powerful tool for the job.
Features:
- American Made -Guaranteed to be of the highest quality.
- Most reasonable priced replacement valve assemby and interchanges with other compatible rivet busters.
- Positive retention of rivet buster piston to prevent possible injuries
- Uses a steel throttle valve
- Two-step piston design
- Barrel cylinder has a bridge built in for safety - piston will not fall out or be shot out of tool avoiding personal injury
- Jumbo safety retainer
- Rugged steel machined handle
- Adjustable exhaust deflector
- Heat treated polished steel barrel

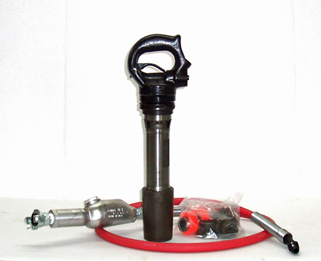

The TX-133RB is designed to operate at 90 psi. It is built to use jumbo steel and upper/lower sleeve and can be converted to run standard steel if desired.
Shipped with hose whip assembly with filter lubricator hose whip assembly (TX8HWF1⁄2, 2 upper sleeves, 2 lower sleeves, 2 rubber bumpers and 2 springs.
Now also shipped with 12" Chisel and Moil Point
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| Part No | Description | Stroke (in) | Weight (lb) | Length (in) | Bore (in) | BPM | Chuck Size (in) | Air Inlet (in) | Air Cons. (cfm) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX133-6RB | Rivet Buster 6" | 6 | 26 | 20.5 | 1-3⁄16 x 6 | 1500 | Jumbo .866 | 3⁄8 | 44 | $1,450.00
|
| TX133-8RB | Rivet Buster 8" | 8 | 30 | 22.5 | 1-3⁄16 x 8 | 1400-1600 | Jumbo .866 | 3⁄8 | 44 | $1,495.00
|
| TX133-11RB | Rivet Buster 11" | 11 | 33 | 25.5 | 1-3⁄16 x 11 | 850 | Jumbo .866 | 3⁄8 | 44 | $1,880.00
|
| TX133-6RB-OT | Rivet Buster 6"-Outside Trigger | 6 | 26 | 20.5 | 1-3⁄16 x 6 | 1500 | Jumbo .866 | 3⁄8 | 44 | $1,725.00
|
| TX133-8RB-OT | Rivet Buster 8"-Outside Trigger | 8 | 30 | 22.5 | 1-3⁄16 x 8 | 1400-1600 | Jumbo .866 | 3⁄8 | 44 | $1,800.00
|
| TX133-11RB-OT | Rivet Buster 11"-Outside Trigger | 11 | 33 | 25.5 | 1-3⁄16 x 11 | 850 | Jumbo .866 | 3⁄8 | 44 | $2,100.00
|
| Documentation | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Spare Parts List | ||||||||||
| Accessories | ||
|---|---|---|

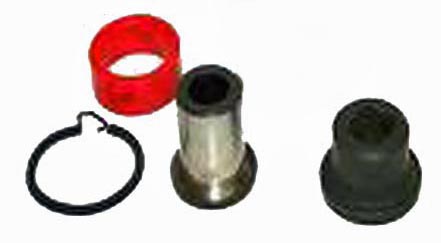

| TX133KIT | Rivet Buster Accessory Kit - Includes 2 each Upper Sleeve, Lower Sleeve, Rubber Bumper and Lock Spring | $85.10
|

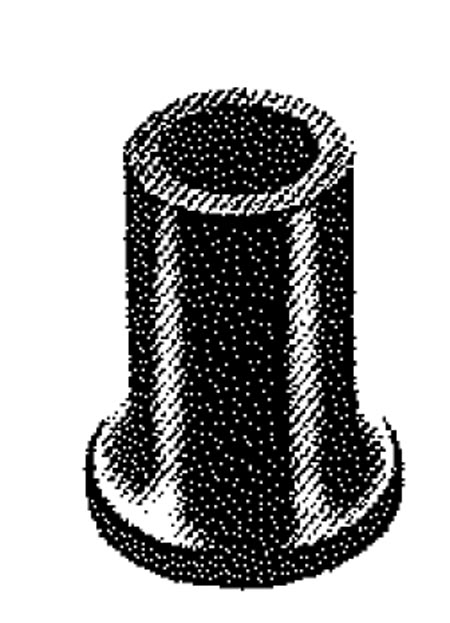

| TP2101 | Upper Sleeve | $16.75
|

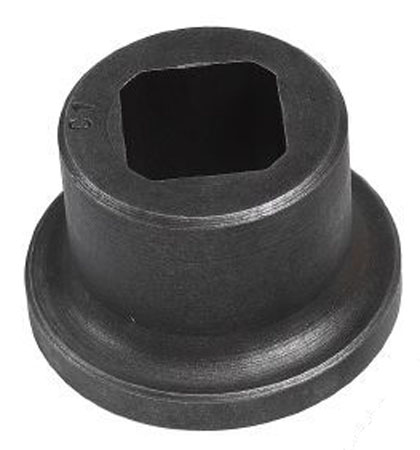

| TP2103 | Lower Sleeve | $20.95
|

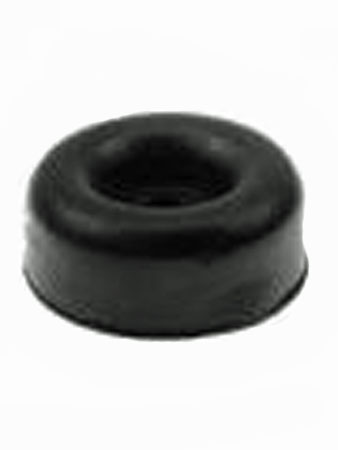

| 2104-4 | Rubber Bumper | $6.85
|
| 1851 | Retainer | $146.80
|
| 2194 | Retainer Spring | $2.65
|
| 2101-15 | Upper Sleeve - to convert to standard steel | $16.75
|
| 2103-15 | Lower Sleeve - to convert to standard steel | $20.95
|
| TP2104 | Rubber Bumper - to convert to standard steel | $4.45
|
| TX8HWF1/2 | Hose Whip Assembly with Filter Lubricator (TX1LF) - 6' x 1⁄2" Hose and 1⁄2" MPT Bent Swivel Hose End | $149.00
|
| RDO1G | Rock Drill Oil - 1 Gallon | $42.00
|
| RDO5G | Rock Drill Oil - 5 Gallon | $122.00
|
| LO-10PF | Line Oiler | $81.00
|
| WCSML | Whip Check | $11.00
|
| AIRH-19-50R | Contractors Air Hose | $124.00
|
| Consumable Tools |
|---|
| Rivet Buster Tools |
