Long Reach Piston Scaler
Texas Pneumatic scalers have been proven throughout the industrial job sites, as well as construction and marine repair industry.

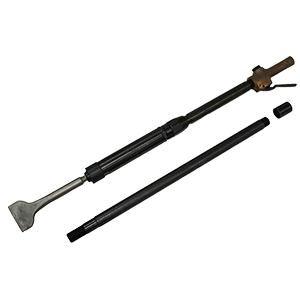

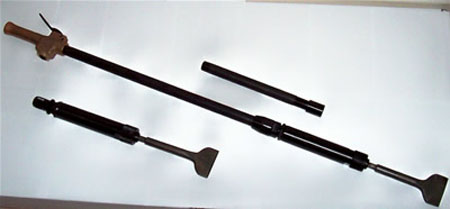

Long Reach/Push Throttle Chisel Scaler
This tool hits twice as hard as a regular scaler. It has a 2" stroke on the piston compared to 1-1⁄4" on the TX1B.
- Proudly made in the USA
- World class value pricing
- Quality equal to or better than competitively made scalers
Tool Applications
Long Reach Scaler
- Tile and non-skid removal
- Grease and paint removal
- Glue and resin removal
- Barnacle and heavy scale removal
Push Throttle Scaler
- For use in foundry casting cleaning
| Part No | Description | Weight (lb) | Length (in) | Bore (in) | Stroke (in) | Impact Rate | Air Inlet (NPT) | Air Cons. (cfm) | Min Hose Size (in) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX2LRCS | Long Reach Scaler | 14 | 48 or 60 | 15⁄16 | 2 | 3400 | 1⁄2 | 10-12 | 1⁄2 | $780.00
|
| TX2PTCS | Long Reach Scaler - Push Throttle | 6 | 17-1⁄2" | 15⁄16 | 2 | 3400 | 1⁄4 | 10-12 | 3⁄8 | $560.00
|
| TX2LTCS | Long Reach Scaler - Lever Throttle | 6 | 17-1⁄2" | 15⁄16 | 2 | 3400 | 1⁄4 | 10-12 | 3⁄8 | $535.00
|
| TX2LR-RK | Long Reach Scaler Repair Kit | $131.05
|
||||||||

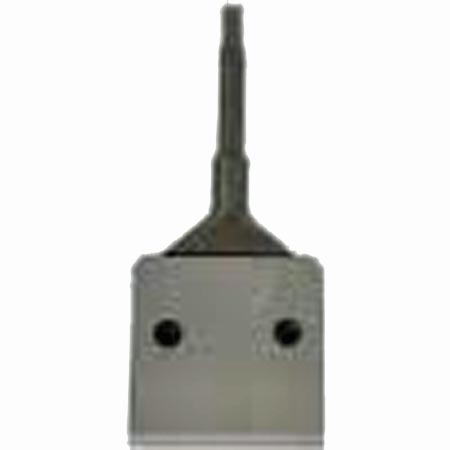

Chisels and Scraper Blades
| Part No | Description | Price |
|---|---|---|
| TX20000 | Chisel - 3" x 9" Flat Chisel | $47.10
|
| TX20029 | Chisel - 3⁄4" x 5-1⁄2" Flat Chisel | $18.30
|
| TX20030 | Chisel - 1-3⁄8" x 5" Flat Chisel | $19.70
|
| TX20031 | Chisel - 1-3⁄8" x 5" Spoon Chisel | $19.70
|

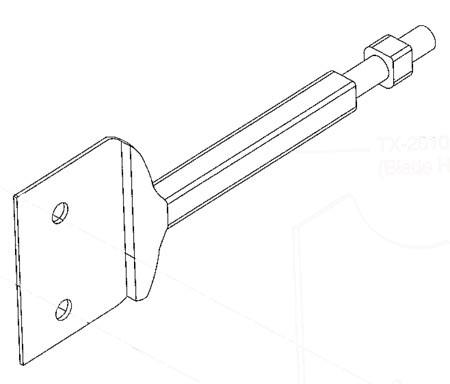

| TX20100 | Blade Holder Only | $97.45
|
| TX20104 | Scraper Blade - 4" with Holder | $140.00
|
| TX20108 | Scraper Blade - 8" with Holder | $147.00
|
| TX20112 | Scraper Blade - 12" with Holder | $153.00
|
| Documentation |
|---|
| Spare Parts List |

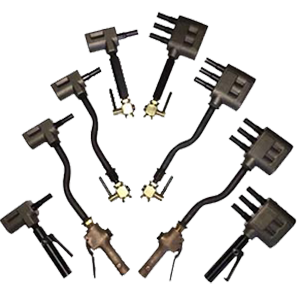

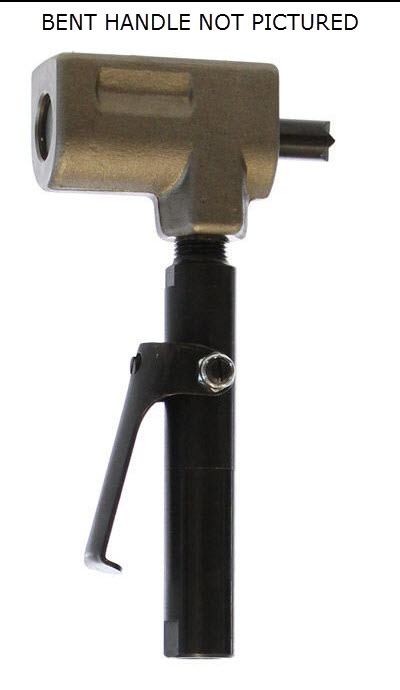

S1 / T3 Piston-Type Scalers
Piston Scalers are used for many different surface preparation projects. They can be used to remove heavy rust, scale, paint or industrial coatings from metal surfaces. The can also be used to rough concrete prior to resurfacing.
The pistons used for these applications range from standard steel to carbide-tipped or REXALLOY®™ which is a solid cobalt alloy. However, solid cobalt alloy pistons should not be used for concrete surface preparations. It has been found that silica in concrete causes heat buildup in REXALLOY®™ pistons which in turn, causes the pistons to wear more rapidly. REXALLOY®™ pistons should ONLY be used on metal surfaces and primarily for their spark resistance.
REXALLOY®™ pistons are spark resistant per parameters used by OSHA in reference to US Naval Report No NGF-T-1-157, NAVORD 5202, agreeing that "ANY" spark produced from impact with this REXALLOY®™ part will be a cold spark not conductivfe of ingnition in hazardous enviroments. They are non-magnetic, rust-proof and carbide hard.
Features
- Rugged steel body
- Lever operated snap handle
- Optional brass air cock valve available
- Variety of pistons available
Tool Applications
- Removing rust and paint
- Removing cement from steel
- Roughing cement
- Piston scalers can be used in areas that standard model scalers will not fit
PROUDLY MADE IN THE USA
| Part No | Description | Weight (lb) | Length (in) | Bore (in) | Stroke (in) | Impact Rate | Air Inlet (NPT) | Air Cons. (cfm) | Min Hose Size (in) | Price |
|---|---|---|---|---|---|---|---|---|---|---|

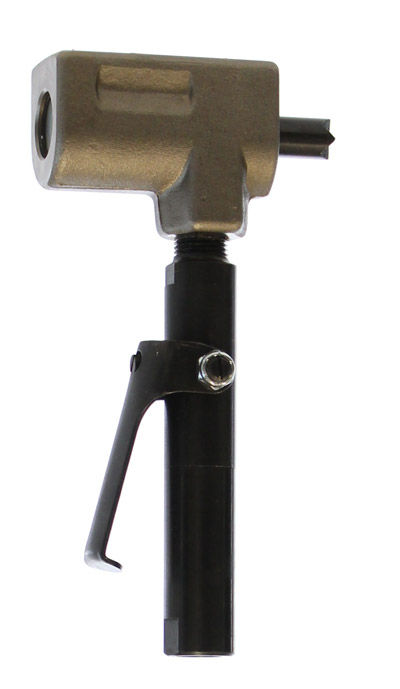

| S1 | Single Piston Scaler | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $600.00
|
| S1-151 | Single Piston Scaler with REXALLOY Piston | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $770.00
|
| S1-AC | Single Piston Scaler with Air Cock Valve | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $600.00
|
| S1-AC-151 | Single Piston Scaler with Air Cock Valve and Rexalloy® ™ Piston | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $770.00
|
| S1-BH | Single Piston Scaler with Bent Handle | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $640.00
|
| S1-BH-151 | Single Piston Scaler with Bent Handle and Rexalloy® ™ Piston | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $815.00
|
| S1-BH-AC | Single Piston Scaler with Bent Handle and Air Cock Valve | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $640.00
|
| S1-BH-AC-151 | Single Piston Scaler with Bent Handle, Air Cock Valve and Rexalloy® ™ Piston | 5 | 9 | 1 | 13⁄16 | 4000 | 3⁄8 | 9 | 3⁄8 | $815.00
|

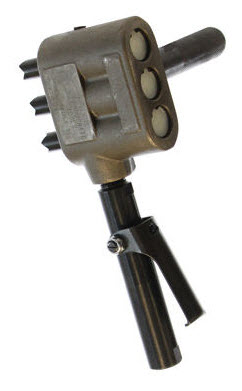

| T3 | Triple Piston Scaler | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $775.00
|
| T3-150 | Triple Piston Scaler with Carbide Tip Piston | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $1,285.00
|
| T3-151 | Triple Piston Scaler with Rexalloy® ™ Piston | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $1,285.00
|
| T3-AC | Triple Piston Scaler with Air Cock Valve | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $775.00
|
| T3-AC-151 | Triple Piston Scaler with Air Cock Valve and Rexalloy® ™ Piston | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $1,285.00
|
| T3-BH | Triple Piston Scaler with Bent Handle | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $820.00
|
| T3-BH-151 | Triple Scaler Piston with Bent Handle and Rexalloy® ™ Piston | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $1,330.00
|
| T3-BH-AC | Triple Piston Scaler with Bent Handle and Air Cock Valve | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $820.00
|
| T3-BH-AC-151 | Triple Piston Scaler with Bent Handle, Air Cock Valve and Rexalloy® ™ Piston | 9 | 11 | 1 | 13⁄16 | 5200 | 3⁄8 | 15 | 3⁄8 | $1,330.00
|

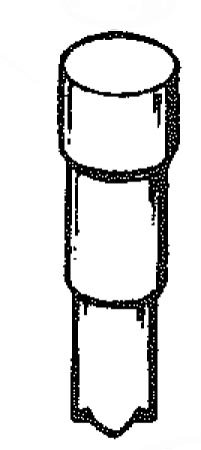

Replacement Pistons and Repair Kits
| Part No | Description | Price |
|---|---|---|

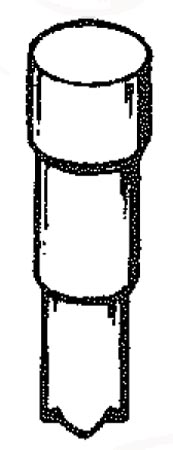

| TX00146 | Standard Steel Piston | $66.60
|
| TX00149 | Carbide Tipped Piston - Chisel Point | CALL |
| TX00150 | Carbide Tipped Piston - Star Point | $238.10
|
| TX00151 | Rexalloy® ™: Solid Cobalt Alloy Pistons - Star Point | $238.10
|
| TX00155 | Rexalloy® ™: Solid Cobalt Alloy Poistons - Chisel Point | $249.40
|

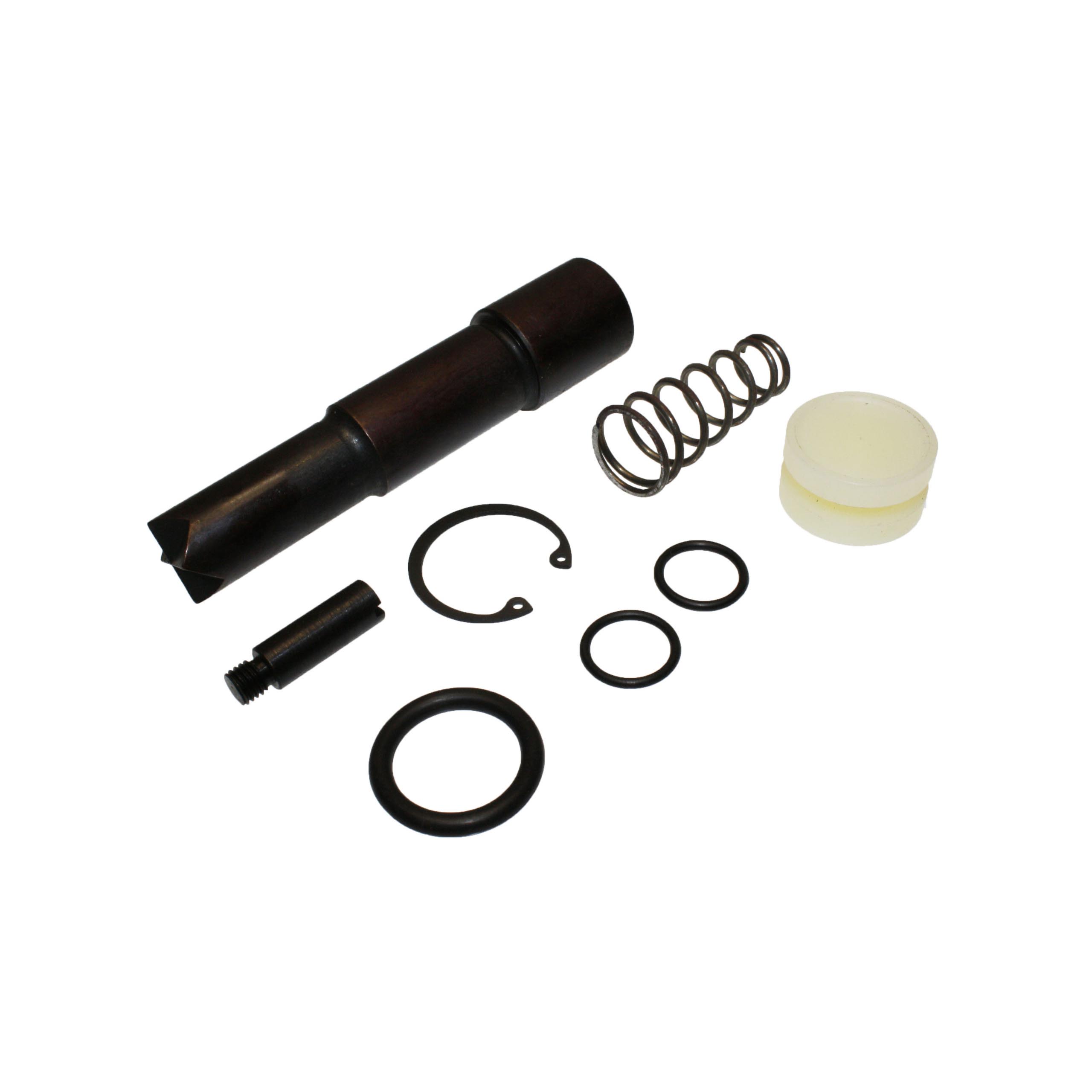

| S1RK | S1 Single Piston Scaler Repair Kit | $106.05
|
| T3RK | Scraper Blade - 8" with Holder | $265.60
|
| TX20112 | T3 Triple Piston Scaler Repair Kit | $153.00
|

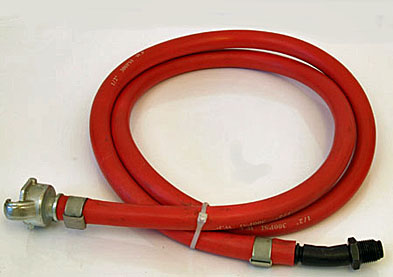

| HWA6-CF/407 | Whip Hose Assembly | $55.45
|
| Documentation |
|---|
| Spare Parts List |
