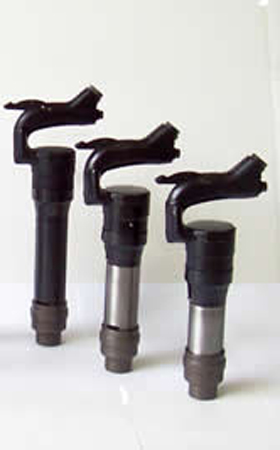

Chipping Hammers
With 2", 3" and 4" cylinder options, Texas Pneumatic offers a very complete range of chipping hammers for all types of construction and industrial applications
Features:
- Made in the USA
- Rocker valve assembly for less maintenance
- American quality forged steel handle
- 2", 3" and 4" stroke pistons
- Available in round or hex bushing
- High quality alloy steel barrel
- Rugged construction for use shipyards, refineries and oil field equipment manufacturers

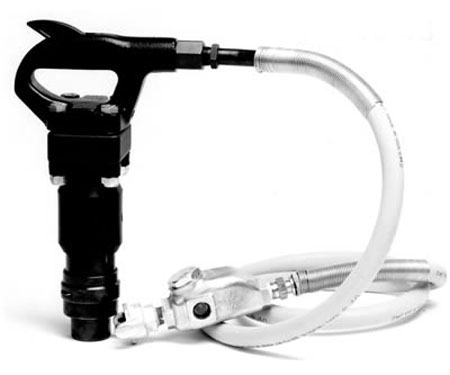

4-Bolt Chipping Hammer Additional Features:
- 4-Bolt design for longer life of handle
- Quick change retainer for ease in change tools
- Hose swivel so hose tracks operator movement
- Lubricator to enhance tool life
4-Bolt Chipping Hammer Price ONLY includes TX4HW Hose Whip Assembly (6' x 1/2" ID hose, TX0L lubricator, 7/8-24 Thread connector), a 1291-TPT2 Deluxe Quick Change Retainer, and a 12" moil point and standard chisel.
| Part No | Description | Bore (in) | Piston Stroke (in) | BPM | Hose Size (in) | Overall Length (in) | Air Cons (cfm) | Weight (lb) | Price |
|---|---|---|---|---|---|---|---|---|---|
| TXCH2-4B-H | 4-Bolt Chipping Hammer - HEX | 1-1⁄8 | 2 | 2100 | 1⁄2 | 14-1⁄2 | 32-34 | 18 | $640.00
|
| TXCH2-4B-R | 4-Bolt Chipping Hammer - ROUND | 1-1⁄8 | 2 | 2100 | 1⁄2 | 14-1⁄2 | 32-34 | 18 | $640.00
|
| TXCH3-4B-H | 4-Bolt Chipping Hammer - HEX | 1-1⁄8 | 3 | 1650 | 1⁄2 | 15-1⁄2 | 33-35 | 19 | $640.00
|
| TXCH3-4B-R | 4-Bolt Chipping Hammer - ROUND | 1-1⁄8 | 3 | 1650 | 1⁄2 | 15-1⁄2 | 33-35 | 19 | $640.00
|
| TXCH4-4B-H | 4-Bolt Chipping Hammer - HEX | 1-1⁄8 | 4 | 1375 | 1⁄2 | 16-1⁄2 | 34-36 | 20 | $640.00
|
| TXCH4-4B-R | 4-Bolt Chipping Hammer - ROUND | 1-1⁄8 | 4 | 1375 | 1⁄2 | 16-1⁄2 | 34-36 | 20 | $640.00
|
| Part No | Description | Bore (in) | Piston Stroke (in) | BPM | Hose Size (in) | Overall Length (in) | Air Cons (cfm) | Weight (lb) | Price |
|---|---|---|---|---|---|---|---|---|---|
| TXCH2-H | Chipping Hammer - HEX | 1-1⁄8 | 2 | 2100 | 1⁄2 | 16-1⁄4 | 32 | 15.7 | $780.00
|
| TXCH2-R | Chipping Hammer - ROUND | 1-1⁄8 | 2 | 2100 | 1⁄2 | 16-1⁄4 | 32 | 15.7 | $780.00
|
| TXCH3-H | Chipping Hammer - HEX | 1-1⁄8 | 3 | 1650 | 1⁄2 | 17-23⁄32 | 33 | 16.7 | $780.00
|
| TXCH3-R | Chipping Hammer - ROUND | 1-1⁄8 | 3 | 1650 | 1⁄2 | 17-23⁄32 | 33 | 16.7 | $780.00
|
| TXCH4-H | Chipping Hammer - HEX | 1-1⁄8 | 4 | 1375 | 1⁄2 | 19-7⁄32 | 34 | 18.1 | $780.00
|
| TXCH4-R | Chipping Hammer - ROUND | 1-1⁄8 | 4 | 1375 | 1⁄2 | 19-7⁄32 | 34 | 18.1 | $780.00
|
| Documentation | |
|---|---|
| 4-Bolt Chipping Hammer Spare Parts List | Standard Chipping Hammer Spare Parts List |
| Consumable Tools |
|---|
| Chipping Hammer Tools |
| Accessories | ||
|---|---|---|

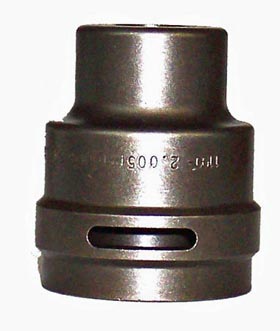

| Retainer | 1190-FTC1 | $57.90
|
| Deluxe Quick Change Retainer | 1291-TPT2 | $120.05
|
| Retainer Lock Spring | 1194-2 | $2.00
|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check | WCSML | $11.00
|
| Air Contractors Hose | AIRH-19-50R | $124.00
|
| Hose Whip Assembly | TX4HW | $111.50
|
