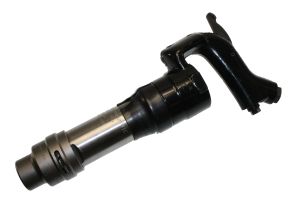

TXCH3-R Chipping Hammer
With 2", 3" and 4" cylinder options, Texas Pneumatic offers a very complete range of chipping hammers for all types of construction and industrial applications
Texas Pneumatic is proud to offer chipping hammers completely made in the USA. We will guarantee the quality of this chipping hammer versus any chipping hammer in the world.
Features:
- Made in the USA
- Hose swivel so hose tracks operator movement
- Rugged construction for use shipyards, refineries and oil field equipment manufacturers
- Rocker valve assembly for less maintenance
- American quality forged steel handle
- 2", 3" and 4" stroke pistons
- Available in round or hex bushing
- High quality alloy steel barrel
| SPECIFICATIONS | ||
|---|---|---|
| TXCH3-R | $780.00
|
|
| Bore (in) | 1-1⁄8 | |
| Piston Stroke (in) | 3 | |
| BPM | 1650 | |
| Hose Size (in) | 1⁄2 | |
| Overall Length (in) | 17-23⁄32 | |
| Air Consumption (cfm) | 33 | |
| Weight (lb) | 16.7 | |
| CONSUMABLES |
|---|
| Chipping Hammer Tools |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Retainer | 1190-FTC1 | $57.90
|
| Deluxe Quick Change Retainer | 1291-TPT2 | $120.05
|
| Retainer Lock Spring | 1194-2 | $2.00
|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check | WCSML | $11.00
|
| Contractors Air Hose | AIRH-19-50R | $124.00
|
| Hose Whip Assembly (SOLD SEPERATELY) | TX4HW | $111.50
|
