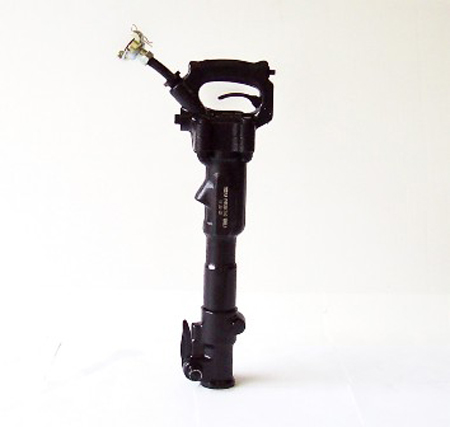

Clay Digger
The TX30CD comes in a chuck sizes of either 7⁄8" x 3-1⁄4" or 1" x 4-1⁄4".
These tools are manufactured and assembled in the United States. They are made from the highest quality material to provide industrial quality performance.
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| Part No | Description | Weight (lb) | Length (in) | Bore (in) | Stroke (in) | BPM | Chuck Size (in) | Air Inlet (NPT) | Air Cons. (cfm) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX30CD-8 | Clay Digger | 30 | 23 | 1.75 | 3.375 | 1550 | 7⁄8 x 3-1⁄4 | 3⁄8 | 49 | $1,650.00
|
| TX30CD-1 | Clay Digger | 30 | 23 | 1.75 | 3.375 | 1550 | 1 x 4-1⁄4 | 3⁄8 | 49 | $1,650.00
|
| Documentation |
|---|
| Spare Parts List |
| Consumable Tools |
|---|
| Paving Breaker Tools |
| Accessories &Amp; Common Replaceable Parts | ||
|---|---|---|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check |
WCSML |
$11.00
|
| Contractors Air Hose |
AIRH-19-50R |
$124.00
|
| Hose Whip Assy w/ 1.4oz Lubricator | TX2HW | $86.65
|
| Hose Whip Assy w/ 3.7oz Lubricator | TX5HW | $99.10
|
