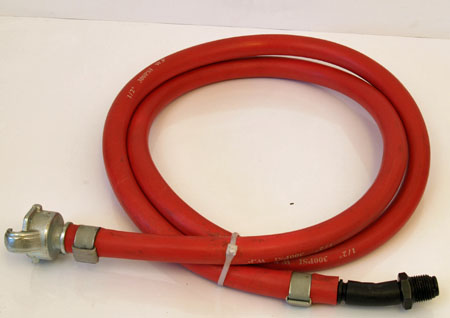

Hose Whip Assemblies and Lubricators
Features:
- All USA made components
- 300# working pressure
- Absolute oil resistance
- Solid band clamps
- Equipped with spring guard at tool end
- Standard 6' length
Hose Whip Assembly with Lubricator
| Part No. | Chicago Coupling | Lubricator | Hose ID (in) |
Connector | Price |
|---|---|---|---|---|---|
| TX1HW | Crowsfoot | TX-0L | 1⁄2 | 1⁄4" MPT | $86.65
|
| TX2HW | Crowsfoot | TX-0L | 1⁄2 | 3⁄8" MPT | $86.65
|
| TX3HW | Crowsfoot | TX-0L | 1⁄2 | 1⁄2" MPT | $86.65
|
| TX4HW | Crowsfoot | TX-0L | 1⁄2 | 7⁄8"-24 Thread Hose Swivel | $111.50
|
| TX4HW1/2 | Crowsfoot | TX-0L | 1⁄2 | 1⁄2" Bent Swivel | $111.50
|
| TX5HW | Crowsfoot | TX-1L | 1⁄2 | 3⁄8" MPT | $99.10
|
| TX6HW | Crowsfoot | TX-1L | 1⁄2 | 1⁄2" MPT | $99.10
|
| TX7HW | Crowsfoot | TX-1L | 1⁄2 | 3⁄4" MPT | $99.10
|
| TX8HW | Crowsfoot | TX-1L | 1⁄2 | 7⁄8"-24 Thread Hose Swivel | $123.60
|
| TX8HW1/2 | Crowsfoot | TX-1L | 1⁄2 | 1⁄2" Bent Swivel | $123.60
|
| TX9HW | Crowsfoot | TX-1L | 1⁄2 | Crowsfoot | $99.10
|
| TX10HW | Crowsfoot | TX-2L | 1⁄2 | Crowsfoot | $117.40
|
| TX11HW | Crowsfoot | TX-2L | 1⁄2 | 1⁄2" MPT | $117.40
|
| TX12HW | Crowsfoot | TX-2L | 3⁄4 | 3⁄4" MPT | $134.25
|
| TX12HW1/2 | Crowsfoot | TX-2L | 3⁄4 | 1⁄2" MPT | $134.25
|
| TX13HW | Crowsfoot | TX-2L | 3⁄4 | 1" MPT | $134.25
|
| TX14HW | Crowsfoot | TX-2L | 1⁄2 | 7⁄8"-24 Thread Hose Swivel | $140.75
|
| TX15HW | Crowsfoot | TX-3L | 1⁄2 | Crowsfoot | $165.90
|
| TX16HW | Crowsfoot | TX-3L | 3⁄4 | 3⁄4" MPT | $165.90
|
| TX17HW | Crowsfoot | TX-3L | 3⁄4 | 1" MPT | $165.90
|
Hose Whip Assemblies (no lubricators)
| Part No. | Chicago Coupling | Hose ID (in) |
Connector | Price |
|---|---|---|---|---|
| HWA6-408/1087 | 1⁄2" MPT | 1⁄2 | 7⁄8" - 24 Thd Swivel | $73.90
|
| HWA6-408/406 | 1⁄2" MPT | 1⁄2 | 1⁄4" MPT | $59.15
|
| HWA6-408/407 | 1⁄2" MPT | 1⁄2 | 3⁄8" MPT | $59.15
|
| HWA6-408/408 | 1⁄2" MPT | 1⁄2 | 1⁄2" MPT | $59.15
|
| HWA6-409/1087 | 3⁄4" MPT | 1⁄2 | 7⁄8"-24 Thd Swivel | $81.25
|
| HWA6-409/407 | 3⁄4" MPT | 1⁄2 | 3⁄8" MPT | $59.15
|
| HWA6-409/408 | 3⁄4" MPT | 1⁄2 | 1⁄2" MPT | $62.80
|
| HWA6-409/988 | 3⁄4" MPT | 1⁄2 | 1⁄2" MPT Swivel | $81.25
|
| HWA6-CF/1087 | Crowsfoot | 1⁄2 | 7⁄8"-24 Thd Swivel | $73.85
|
| HWA6-CF/406 | Crowsfoot | 1⁄2 | 1⁄4" MPT | $55.45
|
| HWA6-CF/407 | Crowsfoot | 1⁄2 | 3⁄8" MPT | $55.45
|
| HWA6-CF/407S | Crowsfoot | 1⁄2 | 3⁄8" MPT Straight Swivel | $73.85
|
| HWA6-CF/408 | Crowsfoot | 1⁄2 | 1⁄2" MPT | $59.15
|
| HWA6-CF/411 | Crowsfoot | 3⁄4 | 3⁄4" MPT | $84.65
|
| HWA6-CF/418 | Crowsfoot | 1⁄2 | 3⁄8" FPT | QUOTE |
| HWA6-CF/986 | Crowsfoot | 1⁄2 | 7⁄8"-24 Thd Swivel | $73.85
|
| HWA6-CF/988 | Crowsfoot | 1⁄2 | 1⁄2" MPT Swivel | $73.85
|
| HWA6-CF/CF | Crowsfoot | 1⁄2 | Crowsfoot | $55.45
|
| HWA-CF/0 | Crowsfoot | 1⁄2 | None | CALL |
| HWA8-408/1087 | 1⁄2" MPT | 1⁄2 | 7⁄8"-24 Thd Swivel | $83.75
|
| HWA8-408/408 | 1⁄2" MPT | 1⁄2 | 1⁄2" MPT | $69.00
|
| HWA8-CF/1087 | Crowsfoot | 1⁄2 | 7⁄8"-24 Thd Swivel | $80.00
|
| HWA8-408/408 | 1⁄2" MPT | 1⁄2 | 1⁄2" MPT | $69.00
|
| HWA8-CF/1087 | Crowsfoot | 1⁄2 | 7⁄8"-24 Thd Swivel | $80.00
|
| HWA8-CF/406 | Crowsfoot | 1⁄2 | 1⁄4" MPT | $61.55
|
| HWA8-CF/988 | Crowsfoot | 1⁄2 | 1⁄2" MPT Swivel | $80.00
|
| HWA8-CF/CF | Crowsfoot | 8' - 1⁄2 | Crowsfoot | $61.55
|
| 9246020363 | Crowsfoot | 10' - 1⁄2 | 3⁄8" NPT Bent Swivel | $122.89
|
Hydraulic Hose Whip Assemblies
| Part No. | Chicago Coupling | Lubricator | Hose ID (in) |
Connector | Price |
|---|---|---|---|---|---|
| TX3HW-HYD | TX-0L | 1⁄2 | 1⁄2" MPT | $123.60
|
|
| TX4HW-HYD | TX-0L | 1⁄2 | TX-03000 Swivel | $148.15
|
|
| TX6HW-HYD | TX-1L | 1⁄2 | 1⁄2" MPT | $136.00
|
|
| TX11HW-HYD | TX-2L | 1⁄2 | 1⁄2" MPT | $154.35
|
|
| TX122000-1212 | 1⁄2 | 1⁄2" MPT both ends | $60.35
|
Hose Whip Assemblies with Combination In-Line Filter Lubricator
| Part No. | Chicago Coupling | Lubricator | Hose ID (in) |
Connector | Price |
|---|---|---|---|---|---|
| TX1HW-F | Crowsfoot | TX-0L-F | 1⁄2 | 1⁄4" MPT | $112.10
|
| TX2HW-F | Crowsfoot | TX-0L-F | 1⁄2 | 3⁄8" MPT | $112.10
|
| TX3HW-F | Crowsfoot | TX-0L-F | 1⁄2 | 1⁄2" MPT | $112.10
|
| TX4HW-F | Crowsfoot | TX-0L-F | 1⁄2 | 7⁄8"-24 Thread Hose Swivel | $136.60
|
| TX4HWF1/2 | Crowsfoot | TX-0L-F | 1⁄2 | 1⁄2" MPT Swivel | $136.60
|
| TX5HW-F | Crowsfoot | TX-1L-F | 1⁄2 | 3⁄8" MPT | $124.50
|
| TX6HW-F | Crowsfoot | TX-1L-F | 1⁄2 | 1⁄2" MPT | $124.50
|
| TX7HW-F | Crowsfoot | TX-1L-F | 1⁄2 | 3⁄4" MPT | $124.50
|
| TX8HW-F | Crowsfoot | TX-1L-F | 1⁄2 | 7⁄8"-24 Thread Hose Swivel | $149.00
|
| TX8HWF1/2 | Crowsfoot | TX-1L-F | 1⁄2 | 1⁄2" MPT Swivel | $149.00
|
| TX9HW-F | Crowsfoot | TX-1L-F | 1⁄2 | Crowsfoot | $124.50
|
Steel Hose Ends for Use With Combination In-Line Filter Lubricator Hose Whip Assemblies
| Part No. | Chicago Coupling | Hose ID (in) |
Connector | Price |
|---|---|---|---|---|
| TX00408 | 1⁄2" MPT | 1⁄2" ID | 1⁄2" Barb | $13.40
|
| TX00410 | 1⁄2" MPT | 1⁄2" ID | 3⁄4" Barb | $18.50
|
| TX00409 | 3⁄4" MPT | 1⁄2" ID | 1⁄2" Barb | $17.00
|
| TX00411 | 3⁄4" MPT | 3⁄4" ID | 3⁄4" Barb | $16.25
|
