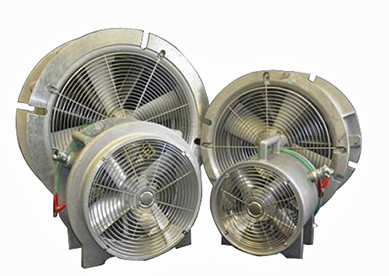

High Velocity Jet Fans
Why is it called a Jet Fan?
This four-bladed vane axial fan is called a Jet Fan because a high-velocity jet of compressed air is ejected from the trailing edge of the blade. This results in the forward rotation of the fan wheel just like a jet plane is pushed forward by the high-velocity jet ejected from the rear of the jet engine.
Features:
- Use for general ventilation in any location where compressed air is available. Use as blower or exhauster.
- Suited for ventilation of tanks, process vessels, or other confined areas for the removal of hazardous fumes or contaminated air from welding, sandblasting and other operations.
- Rated operating pressure 40-110 PSI.
- Design allows for lower RPMs while still moving more air.
- Bearings are packed with a hi-tech synthetic lubricant for longer life.
- Propeller precision balanced by removing material from end of blades.
- Electro-polished stainless steel fan guard.
- Heat-treated to T6 aircraft aluminum specifications.
- Super-duty, high quality, high pressure air seal for longer service.
- Heaviest-duty fan in the industry.
- Hi-tech four blade design.
- Guide vanes to eliminating turbulence which smooths air flow and increases efficiency.
- Fan design by one of the foremost fan engineers in the world.
Jet Fans
| Model | Description | Flange Dia. (in) | Weight (lb) | Inlet | Max PSI | Compressed Air Pressure (psi) | Compressed Air Consumption (cfm) | Air Flow (Free Flow) | Average RPM | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TXJF12 | 12" Jet Fan | 12 | 41 | 3⁄4" FPT | 120 |
40
60
80
100
120
|
55
78
101
130
141
|
1684
2161
2550
2866
3120
|
3190
4200
5021
5805
6305
|
$2,305.00
|
| TXJF16 | 16" Jet Fan | 16 | 63 | 3⁄4" FPT | 120 |
40
60
80
100
120
|
54
79
100
128
139
|
2541
3349
3702
4216
4774
|
2173
2896
3279
3792
4311
|
$2,685.00
|
| TXJF20 | 20" Jet Fan | 20 | 95 | 3⁄4" NPT | 110 |
40
60
80
100
120
|
60
114
186
292
|
2080
2695
3225
3670
|
$2,980.00
|
|
| TXJF24 | 24" Jet Fan | 24 | 132 | 1" NPT | 110 |
40
60
80
100
|
76
147
225
338
|
|
1565
2053
2570
3138
|
$5,325.00
|
| Documentation | |
|---|---|
| Spare Parts List | |
| Accessories | ||
|---|---|---|

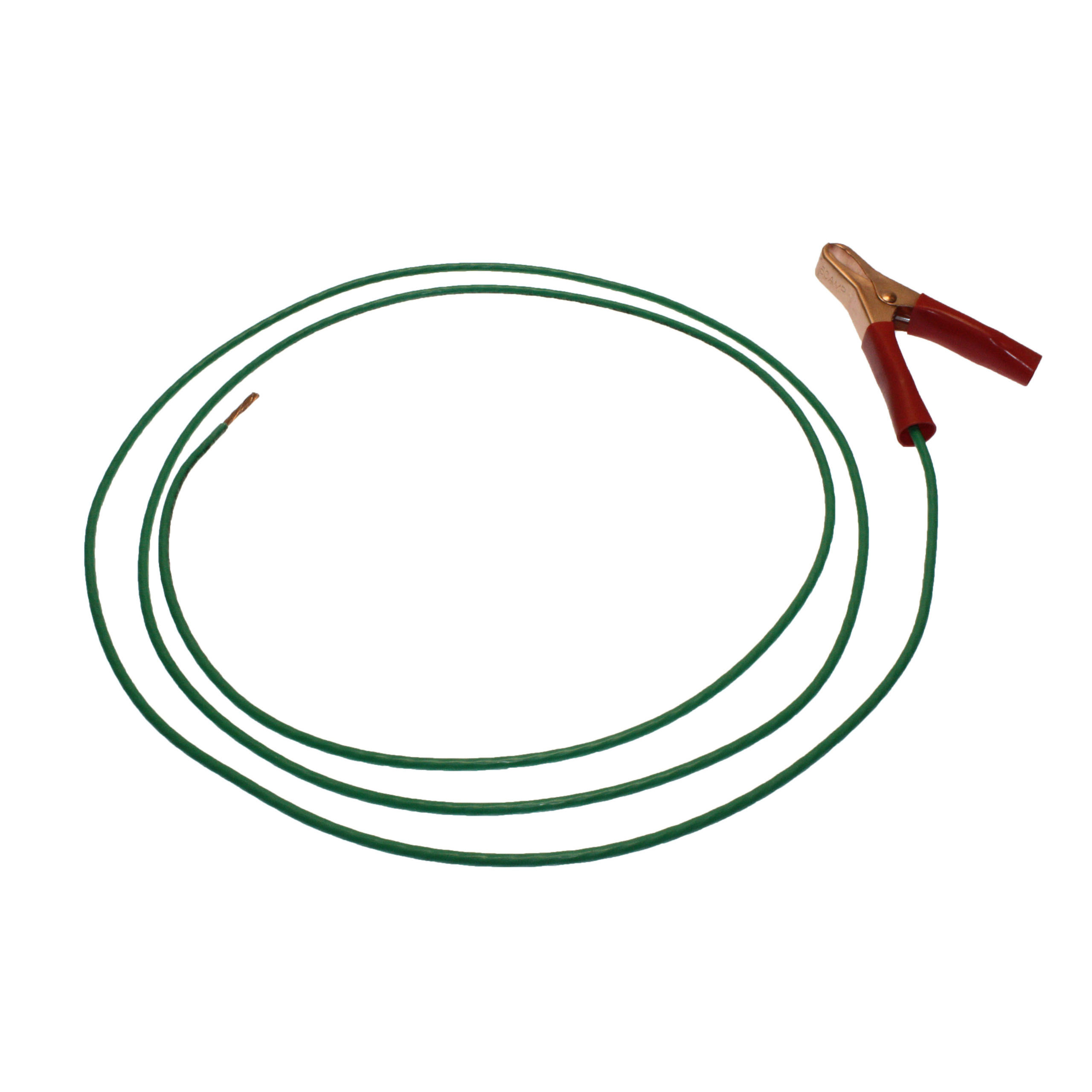

| AM29 | Grounding Clamp with 6 ft. of Wire | $16.70
|
| TXJFRF | Jet Fan Refurbishing Kit for 20" and 24" Jet Fans | $535.00
|
| TXJFRK | Jet Fan Repair Kit for 20" and 24" Jet Fams | $535.00
|

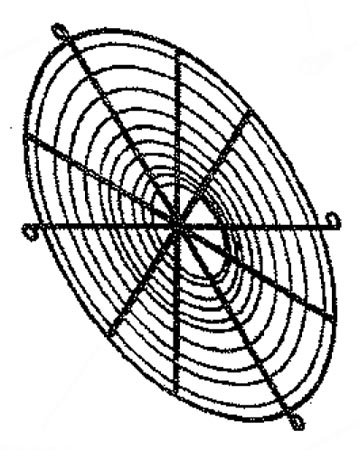

| TXJF2004 | 20" Stainless Steel Fan Guard | $138.65
|
| TXJF2404 | 24" Stainless Steel Fan Guard | $208.35
|

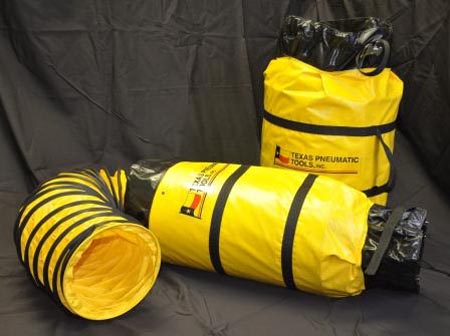

| TXSAC-N-GO-12 | Air Ducting - 12" | $405.00
|
| TXSAC-N-GO-16 | Air Ducting - 16" | $490.00
|
| TXSAC-N-GO-20 | Air Ducting - 20" | $675.00
|

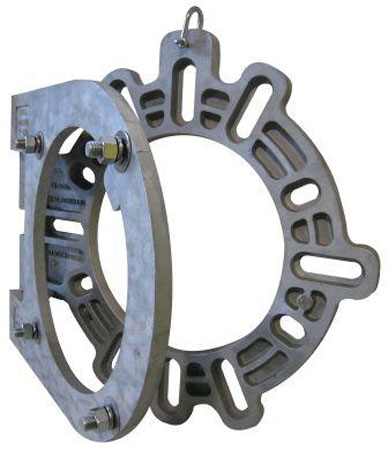

What is a Swing Gate?
This device is used to provide an additional entry/exit point for a confined space. Typically, a fan is bolted directly to a tank flange. Once bolted in place, the opening can only be used by the fan for ventilating the confined space. A swing gate will still allow the opening to be used as a ventilation point, but it can also be used as an additional entry/exit point in case of emergency.
A worker inside of a tank would need to gently push on the hand paddle that is molded into the casting. The fan will swing away and allow the worker to exit the space. A worker on the outside of a tank would merely pull on the flange of the Jet Fan to swing the fan away and allow for entry into the space.
The flange is kept closed by a magnet. There are no locking devices. The magnet is a superior mechanism to our competitor's method of a hook & loop fastener (similar to Velcro). The magnet will not lose adhesion over time or deteriorate by weather. A slight bump or tug is all that is needed to push or pull the fan open. Mounting the Jet Fan on the Swing Plate with the air inlet towards the hinge will not inhibit the ability to open the gate. In addition, the Jet Fan's grounding wire should also be affixed on the hinge side of the unit.
All exposed components are stainless steel or aluminum.
Mounting flange configured to match tank flanges with holes starting in top center position OR level across the centerline. Our competitor's gates can only be used for flanges mounted with the top two holes level across the centerline. Heat treated to T6 aircraft aluminum specifications. Stainless Steel Shackle used for lifting point.
Unit shipped with Stainless 1" bolts, flat washers, lock washers and nuts for attaching a Jet Fan to the Swing Plate.
| Part No. | Description | Price |
|---|---|---|
| TXSG20 | 20" Swing Gate | $2,530.00
|
| TXSG24 | 24" Swing Gate | $2,770.00
|
| Documentation | |
|---|---|
| Spare Parts List | |

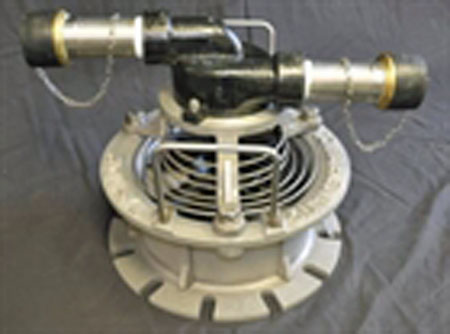

Water Driven Fan with Stainless Steel Water Motor
Shipped with supply-type fan blade unless exhaust blade is specified. Optional exhaust blades can be purchased seperately.
Not made in the USA
| Open Loop Flow Data | Closed Loop Flow Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Description | Flange Dia. (in) | Weight (lb) | Water Pressure (psi) | Air Flow (Free Flow) | Water Cons (gal/min) | Avg. RPM | Water Pressure (psi) | Air Flow (Free Flow) | Water Cons (gal/min) | Avg. RPM | Price |
| TXWD12 | 12" Water Driven Fan |
18
|
56
|
100
125
150
|
3463
3845
4096
|
160
182
193
|
4366
4857
5185
|
100
125
150
|
2245
2815
3269
|
106
134
155
|
2827
3552
4097
|
$2,515.00
|
| TXWD16 | 16" Water Driven Fan |
22
|
69
|
100
125
150
|
4479
5567
6119
|
156
190
209
|
2585
3214
3532
|
100
125
150
|
3455
4329
5029
|
125
153
174
|
1981
4491
2900
|
$3,040.00
|
|
Water Motor Inlet/ Outlet: 2" FPT |
||||||||||||
| Documentation | |
|---|---|
|
Spare Parts List
|
|
| Accessories | ||
|---|---|---|
| AM29 | Grounding Clamp with 6" Wire |
$16.70 |
| TXJFRF | Jet Fan Refurbishing Kit |
$535.00 |
| TXJFRK | Jet Fan Repair Kit |
$535.00 |
