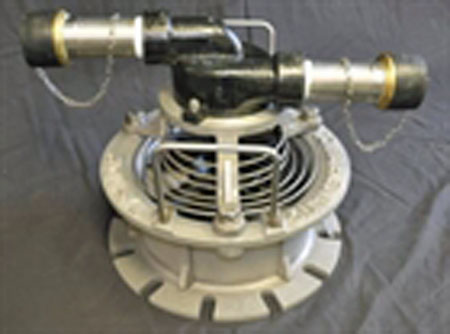

TXWD16 - 16" Water Driven Fan
16" Water Driven fan with a stainless steel water motor.
Shipped with supply-type fan balde unless exhaust blade is specified. Optional exhaust blades can be purchased seperately.
Not made in USA
| Specifications | |
|---|---|
| TXWD16 | $3,040.00
|
| Butterworth Flange Dia. (in) | 22 |
| Weight (lb) | 69 |
| Water Motor Inlet/Outlet | 2" FPT |
| Water Hose Connector | 2-1⁄2" NST (male) |
| Max Water Pressure (psi) | 150 |
| Outside Diameter | 24-1⁄2" x 12" |
| Performance | ||||||||
|---|---|---|---|---|---|---|---|---|
| Open loop flow data | Closed loop flow data | |||||||
|
Water Pressure
(psi)
|
AirFlow
Free Flow
(cfm)
|
Water
Consumption
(gal/min)
|
Average
RPM
|
Water Pressure
(psi)
|
AirFlow
Free Flow
(cfm)
|
Water
Consumption
(gal/min)
|
Average
RPM
|
|
|
100
|
4479
|
156
|
2585
|
100
|
3455
|
125
|
1981
|
|
|
125
|
5567
|
190
|
3214
|
125
|
4329
|
153
|
4491
|
|
|
150
|
6119
|
209
|
3532
|
150
|
5029
|
174
|
2900
|
|
| Documentation |
|---|
| Spare Parts List |
| Accessories | ||
|---|---|---|
| Grounding Clamp with 6' Wire | AM29 | $16.70
|
| Jet Fan Refurbishing Kit | TXJFRF | $535.00
|
| Jet Fan Repair Kit | TXJFRK | $535.00
|
