Foundry Tools - Sand Rammer, Bench Rammer, Backfill Tamper
The Texas Pneumatic rammers are proven in the field. They have a smooth-finished, black-oxided body. They are tough, yet easy to handle. These rammers can be used in various applications for foundry purposes, as well as construction-related areas.
Features:
- Made in USA
- High performance with minimum operator fatigue
- Easy start and stop features
- Lightweight rugged construction
- Adjustable packing gland
- Fast hitting
- Greatly improves the quality of casting in all types of foundry applications
Tool Applications:
- Packing Sand
- Packing plastic alumnea in fire walls
- Packing cast stone

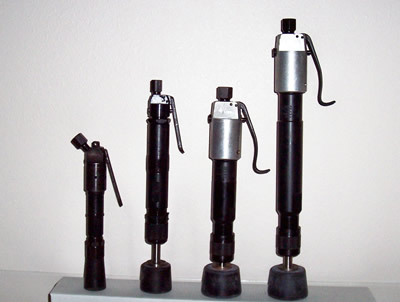

Sand Rammer, Bench Rammer, Backfill Tamper
| Part No. | Description | Air Cons. (cfm) |
Stroke (in) |
Weight (lbs) |
Length incl. butt (in) |
Bore (in) |
BPM | Taper | Inlet | Min Hose Size (in) |
Price |
|---|---|---|---|---|---|---|---|---|---|---|---|

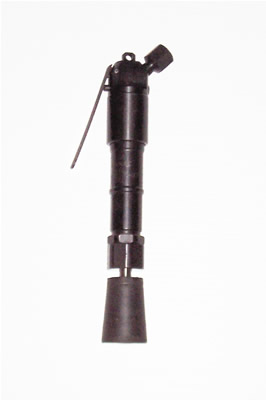

| TX00 | Sand Rammer | 12 | 2 | 4 | 12 | .7 | 1600 | 401 | 3⁄8 | $470.00
|
|
| TX70B | Sand Rammer | 15 | 2 | 7 | 16 | 1 | 2500 | 802 | 1⁄4" NPT | 3⁄8 | $580.00
|
| TX70B-NR | Sand Rammer-Non Revolving Piston | 15 | 2 | 7 | 16 | 1 | 2500 | 802 | 1⁄4" NPT | 3⁄8 | $705.00
|
| TX70B-NRLR | Sand Rammer-Non Revolving Piston & Long Reach Handle | 15 | 2 | 7 | 16 | 1 | 2500 | 802 | 1⁄4" NPT | 3⁄8 | $930.00
|
| TX8-212 | Bench Rammer | 13 | 2-1⁄2 | 7 | 16.5 | 1 | 1725 | 802 | 3⁄8 | 1⁄2 | $735.00
|
| TX8-2-12NR | Bench Rammer - Non-Revolving Piston | 15 | 2-1⁄2 | 7 | 16.25 | 1 | 1725 | 802 | 1⁄2 NPT | $840.00
|
|
| TX8-2-12LR | Bench Rammer - Long Reach | 15 | 2-1⁄2 | 10 | 43 | 1 | 1725 | 802 | 1⁄2 NPT | $1,035.00
|
|
| TX8-4 | Bench Rammer | 19 | 4 | 10 | 21.5 | 1 | 1240 | 802 | 3⁄8 | 1⁄2 | $1,280.00
|
| TX8-4LR | Bench Rammer - Long Reach | 15 | 4 | 10 | 48 | 1 | 1240 | 802 | 1⁄2 NPT | $1,315.00
|
|
| TX6TN | Backfill Tamper | 38.5 | 5.5 | 40 | 48.25 | 1.5 | 800 | 804 | 1⁄2 | - | $1,525.00
|
| TX9HW | Hose Whip Assembly - 6' hose, TX1L Lubricator, Crowsfoot connections | $99.10
|
|||||||||
| TX1HW | Hose Whip Assembly - 6' hose, TX0L Lubricator, Crowsfoot coupling, 1⁄4" MPT connector | $86.65
|
|||||||||
| TX70BRK | TX70B Repair Kit | $125.95
|
|||||||||

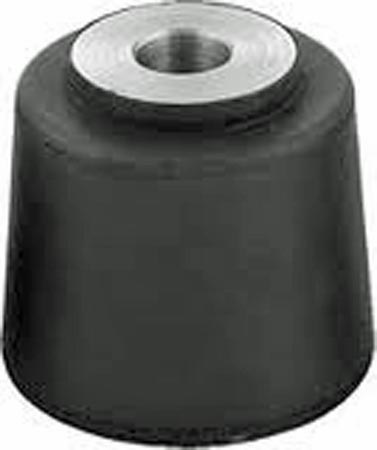

Rammer and Tamper Butts
| Part No. | Description | TX70B Rammer | TX00 Rammer | TX8-2.5 Bench Rammer (including Non-Revolving Piston and Long Reach) | TX8-4 Bench Rammer (including Non-Revolving Piston and Long Reach) | TX6-TN Backfill Tamper | Price | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TX00199 | 2-3⁄8" Aluminum Rubber Butt | Included | Optional | Optional | $96.95
|
||||||
| TX00200 | 3" Aluminum Rubber Butt | Included | Included | $96.95
|
|||||||
| TX00201 | 2-1⁄2" Steel Butt | Optional | Optional | $96.95
|
|||||||
| TX00208 | 2-3⁄4" Open Hearth Butt | Optional | Optional | Optional | $116.35
|
||||||
| TX00209 | 2-3⁄8" All Aluminum Butt | Optional | Optional | Optional | $96.95
|
||||||
| TX00210 | 3" All Aluminum Butt | Optional | Optional | $96.95
|
|||||||
| TX00211 | 2-5⁄8" Square Aluminum Butt | Optional | Optional | $96.95
|
|||||||
| TX00212 | 2-3⁄8" Neoprene Butt | Optional | $96.95
|
||||||||
| TX00212S | 2-3⁄8" Neoprene Butt with Steel Insert | Optional | CALL | ||||||||
| TX002012 | 1-5⁄8" Rubber Butt | Included | $74.35
|
||||||||
| TX00230BS | 6" Malleable Iron Butt | Included | $226.15
|
||||||||

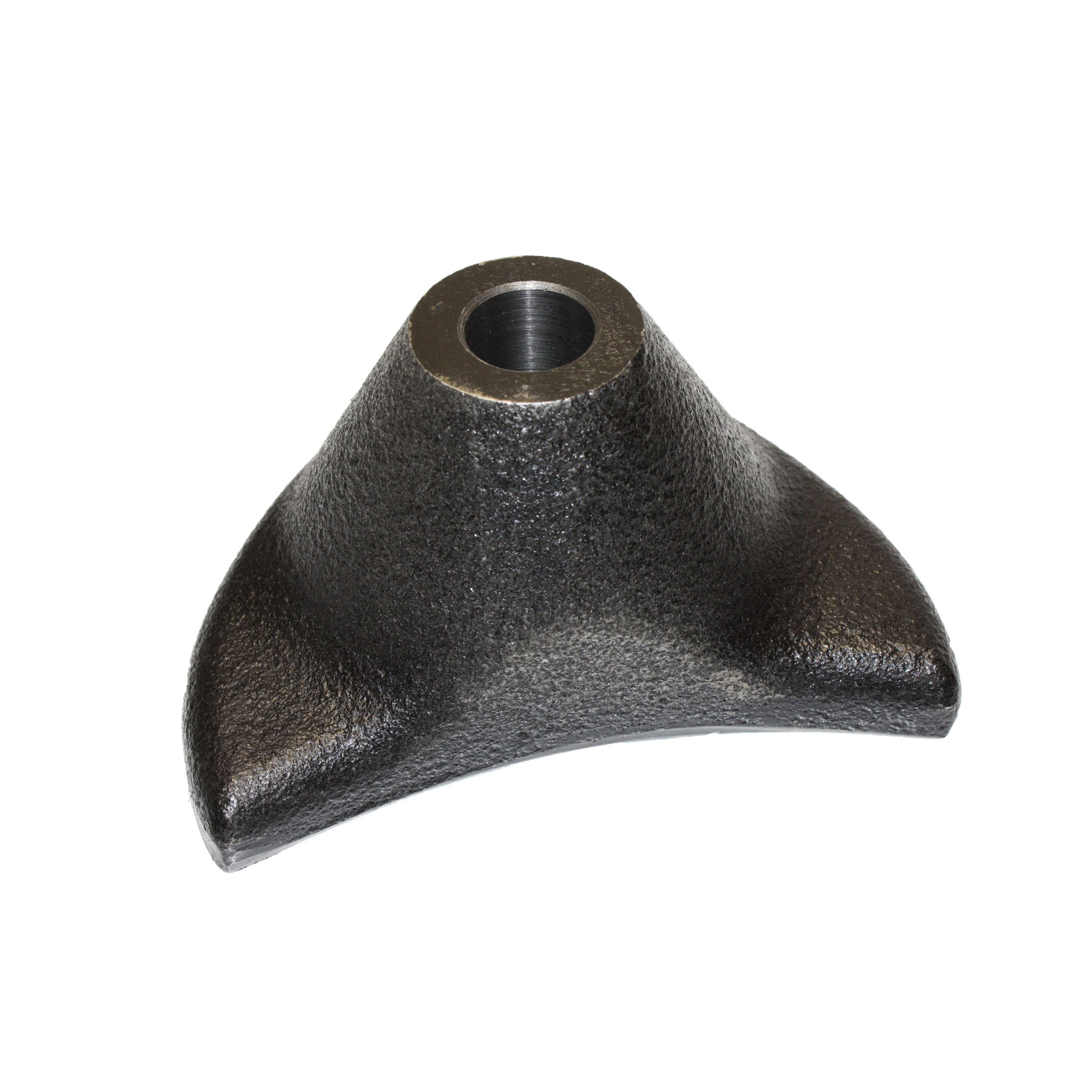

| TX00231 | Kidney Butt | Optional | $169.35
|
||||||||
| Documentation | |
|---|---|
| TX70B Sand Rammer Spare Parts List | TX00 Sand Rammer Spare Parts List |
| TX8 - 2-1⁄2 and 4" Bench Rammer Spare Parts List | TX6TN Backfill Tamper Spare Parts List |
