TX6TN Backfill Tamper
The Texas Pneumatic rammers are proven in the field. They have a smooth-finished, black oxided body. They are tough, yet easy to handle. These rammers can be used various applications for foundry purposes, as well as construction-related areas.
Features:
- Made in USA
- High performance with minimum operator fatigue
- Easy start and stop features
- Lightweight rugged construction
- Adjustable packing gland
- Fast hitting
- Greatly improves the quality of casting in all types of foundry applications as well as packing sand, packing plastic alumnea in fire walls, and packing cast stone
Tool Applications:
- Packing sand
- Packing plastic alumnea in fire walls
- Packing cast stone
Shipped with TX9HW Whip Hose and Oiler and 5-3⁄4" Malleable Iron Butt
SPECIFICATIONS
| Pneumatic Rammer | TX6TN | $1,525.00
|
|
| Specifications | |
|---|---|
| Air Consumption (cfm) | 38.5 |
| Stroke (in) | 5.5 |
| Weight (lb) | 40 |
| Length, including butt (in) | 48.25 |
| Bore (in) | 1.5 |
| Blows per Minute | 800 |
| Taper | 804 |
| Inlet | 1⁄2" |
| Minimum Hose Size (in) | -- |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Hose Whip Assembly | TX9HW | $99.10
|

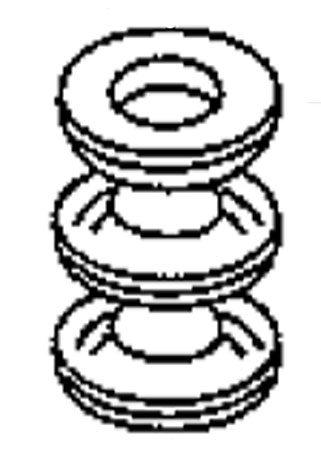

| Plunger Packing Set | TX60029 | <$54.30
|
| Packing Nut | TX60023 | $2.75
|
| 6" Malleable Iron Butt | TX00230BS | $226.15
|
| Kidney Butt | TX00231 | $169.35
|
