Dust Collection System



Portable Dust Collection systems conform with OSHA Directive 1926.1153 for Crystalline Silica containment.  These compressed air powered systems can be used with percussion tools, rock drills, saws or grinders that are powered by compressed air or electricity.  The HEPA fiters have a 2-3 year life expectancy, can be easily cleaned with compressed air and can occasionally be washed.

Since these Dust Collection Systems do not use water as an aid in dust reduction, they can be used all year long and in all climates.  The systems are small and portable for use indoors or outdoors.  The collected dust and debris is not considered hazardous waste so it can be discarded with the trash.

In order to lessen the potential risk of exposure to airborne dust, filters and canisters are located a minimum of 30 feet from the operator via vacuum hoses or ducting.  When canisters require the dust and debris to be removed, the large plastic bags allow plenty of room to seal the dust prior to removal from the canister.

FEATURES

  • Conforms to OSHA Standard 1926.1153
  • Filters down to .3 microns with 99.97% efficiency
  • The system can be located within a 30' radius from work area to lessen possible silica exposure
  • The cyclonic pre-separator removes more thatn 90% of dust and debris prior to the HEPA filter
  • Works with all air powered tools or electric tools
  • Portable and easily manuvered around worksite
  • HEPA filter has a 2 to 3 year life expectancy and can be washed
  • The dirt and debris can be thrown away (No wet slurry that requires additional disposal practices and costs)
  • Virtually maintenance free - No moving parts
  • MADE IN USA
Part No. Description Price

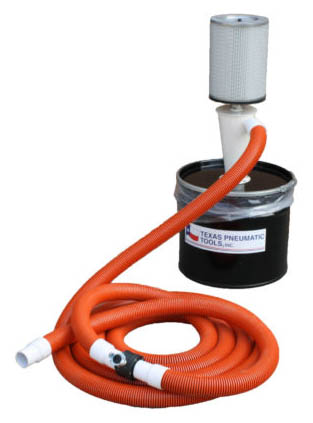

TX-DCS2 2" Dust Collection System w/ 20 gal Canister $1,830.00
TX-DCS2-30 2" Dust Collection System w/ 30 gal Canister $1,910.00

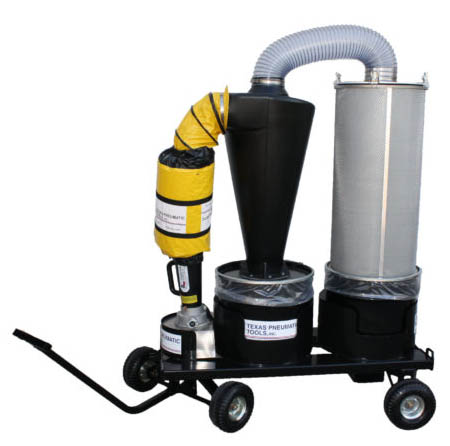

TX-DCS3 3" Dust Collection System $3,250.00
TX-DCS-MU3 3-Way Multi-User Dust Collection System $4,895.00

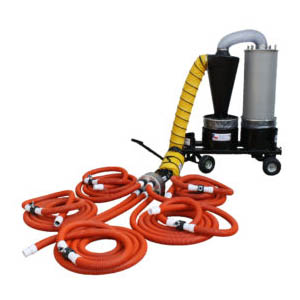

TX-DCS-MU5 5-Way Multi-User Dust Collection System $6,425.00

$150 Flat Rate LTL/Truck Shipping to Commercial destinations*
$250 flat rate for Residential destinations in Continental US. Rates will be quoted for Alaska, Hawaii and all international destinations.

SPECIFICATIONS

    TX-DCS2 TX-DCS2-30 TX-DCS3 TX-DCS-MU3 TX-DCS-MU5
No of Users/Unit   1 1 1 3 5
Vacuum Air Flow cfm 430 430 1100 1290 (430 each) 2150 (430 each)
Vacuum Suction in of H2O 42 42 12 42 per line 42 per line
Compressed Air Consumption cfm 40 40 45 120 245
Vacuum Hose Length feet 30 * 30 * 30 ** 30 60 ***
Hose Dia./Connector in 2 2 8 2 2
Canister Size gal 20 20 20 20 20
Filter Type   HEPA HEP HEPA HEPA HEPA
Length in 20 20 59 20 59
Width in 20 20 30 20 30
Height in 47 47 80 47 80
Total Weight lbs 50 + 50 + 244 ++ 115 + 332 ++

* 1 x 5' section & 1 x 25' section

** 3 x 5' section, 3 x 25' section

*** 5 x 5' section, 5 x 25' sections, 1 x 30' ducting section

All flow rates are measured with hoses and filters attached

+ Includes vacuum hoses & TX-2AM air movers

++ Includes vacuum hoses, TX-AM air movers & cart

ACCESSORIES

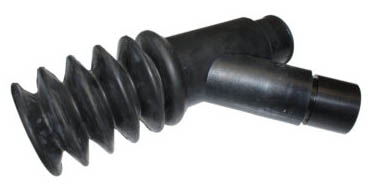

Dust Shroud for 1190 Style Retainers TX-DCS50 $304.50

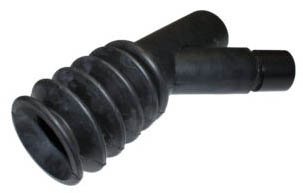

Dust Shroud for 1291 Style Retainers TX-DCS51 $304.50
Dust Shroud for Rivet Busters TX-DCS53 $304.50

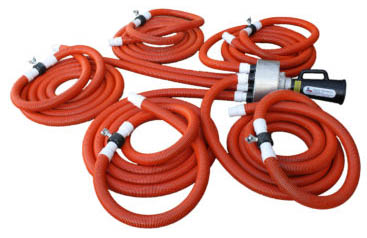

Multi-Unit Dust Collection Attachment TX-DCSMU5A $3,790.00
Kit for Connecting Tool & Vacuum to One Air Line TX-DCS-KIT $91.85
