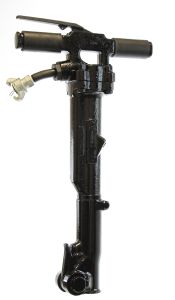

TX40PB Paving Breaker
The 40# and 30# paving breaker is a rugged, yet light weight paving breaker designed for light to medium construction work. It is ideally suited for plant maintenance work such as light demolition of floors, pavement, frozen ground and masonry walls and is very popular for bridge deck work.
These tools are manufactured and assembled in the United States. They are made from the highest quality material to provide industrial quality performance.
Features:
- Made in USA
- Rugged Thor-type tools
- Multiple chuck sizes
- Working pressure of 90-100 psi
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
SPECIFICATIONS
| TX40PB | $1,850.00
|
|
| Weight (lb) | 42 | |
| Length (in) | 25.125 | |
| Bore (in) | 1.73 | |
| Stroke (in) | 5.75 | |
| BPM | 900 | |
| Chuck Size (in) | 1 x 4-1⁄4 | |
| Air Inlet (NPT) (in) | 1⁄2 x 3⁄4 | |
| Air Consumption (cfm) | 56 | |
| CONSUMABLE TOOLS | |
|---|---|
| Paving Breaker Tools | Post Driver Tools |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Back Head Spring | 66410 | QUOTE |
| Back Head Bolt | 43040A | $19.85
|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Back Head Bolt Washer | 50734 | $1.20
|
| Line Oiler | LO-10PF | $81.00
|
| Back Head Bolt Nut | 43040B | $4.65
|
| Whip Check | WCSML | $11.00
|
| Steel Retainer | 43527 | $55.95
|
| Contractors Air Hose | AIRH-19-50R | $124.00
|
| Retainer Bolt | 43524B | $29.85
|
| Hose Whip Assy w/ 3.7oz Lubricator | TX7HW | $99.10
|
| Retainer Bolt Nut | 43525 | $3.10
|
| Hose Whip Assy w/ 7oz Lubricator | TX12HW | $134.25
|
| Retainer Bolt Lock Washer | 43007 | $1.10
|
| Air King Universal Coupling | AM8 | $12.00
|
| Retainer Bolt Bushing | 43523 | $9.80
|

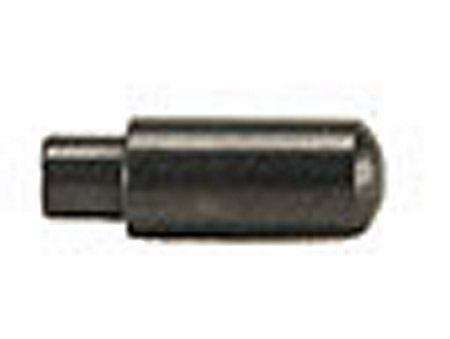

| Retainer Plunger | 43522 | $9.80
|
| Retainer Plunger Spring | 43521 | $7.10
|
