TX182 Chisel/Needle Scaler Kit
Features:
- Made in the USA
- World class value pricing
- Quality equal to or better than competitively made scalers
- Tools have been proven in thousands of applications
- Tens of thousands of these tools are in the field
- Completely convertible from needle to chisel scaler and visa versa
Applications:
- De-rusing and cleaning of metals
- Peening of welded joints
- Cleaning castings
- Cleaning welding slag
- Removing barnacles
- Removing paint, rust and dirt
- Chipping stone, concrete and brick
- Needle scalers adjust to any surface contour automatically

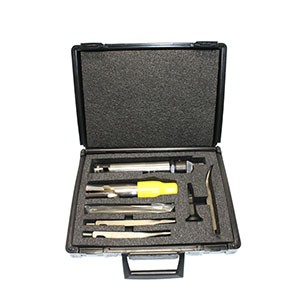

Includes:
- TX182 Chisel Scaler
- Round Needle Attachment with set of 5" needles - p/n NS11A
- 7" x 3⁄4" Flat Chisel - p/n 612
- 7" x 1-3⁄8" Flat Chisel - p/n 613
- 7" x 1-3⁄8" Angle Chise - p/n 614
- Set of 19-7" needles - p/n TX00719
- Black Plastic Case - p/n TX1B-CASE
| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| TX182NS-MK | $550.00
|
||||
| Weight (lb) | 6.31 | ||||
| Length (in) | 17" with chisel | ||||
| Air Consumption (cfm) | 13 | ||||
| Bore (in) | 15⁄16 | ||||
| Stroke (in) | 1-1⁄16 | ||||
| BPM | 4000 | ||||
| Air Inlet (NPT) (in) | 1⁄4 | ||||
| Minimum Hose Size (in) | 3⁄8 | ||||
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | |||||
|---|---|---|---|---|---|
| TX182 Chisel Scaler Repair Kit | TX182RK | $7.80
|
|||
| 5" x .125 Stainless Steel Scaler Needle | TX00018 | $1.75
|
Set of 19 | TX00018-19 | $33.25
|
| 5" x .125 Steel Scaler Needle | TX00043 | $1.00
|
Set of 19 | TX00519 | $10.45
|
| 5" x .125 Beryllium Copper Needle | TX00119 | $5.85
|
Set of 19 | TX00119-19 | $111.15
|
| 7" x .125 Stainless Steel Needle | TX00019 | $2.00
|
Set of 19 | TX00019-19 | $38.00
|
| 7" x .125 Steel Scaler Needle | TX00024 | $1.00
|
Set of 19 | TX00719 | $10.45
|
| 7" x .125 Beryllium Copper Needle | TX00120 | $7.10
|
Set of 19 | TX00120-19 | $134.90
|
| 7"" Blank Chisel | 611 | $9.80
|
|||
| 7" x 3⁄4" Flat Chisel | 612 | $11.20
|
12" x 3⁄4" Flat Chisel | 612-12 | $14.20
|
| 7" x 1-3⁄8" Flat Chisel | 613 | $12.05
|
12" x 1-3⁄8" Flat Chisel | 613-12 | $15.40
|
| 7" x 1-3⁄8" Angle Chisel | 614 | $12.05
|
12" x 1-3⁄8" Angle Chisel | 614-12 | $15.40
|
| 7" x 2" Scraper Chisel | 615 | $28.90
|
|||
