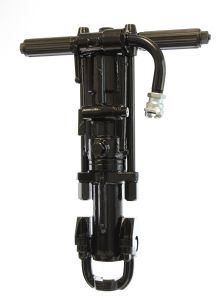

TX60RD-1 Rock Drill
These tools are manufactured and assembled in the United States. They are made from the highest mquality material to provide industrial quality performance.
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| TX60RD-1 | $2,990.00
|
||||
| Weight (lb) | 61 | ||||
| Length (in) | 23.75 | ||||
| Bore (in) | 2.625 | ||||
| Stroke (in) | 3.22 | ||||
| BPM | 2250 | ||||
| RPM | 200 | ||||
| Chuck Size (in) | 1 x 4-1⁄4 | ||||
| Air Inlet (NPT) | 3⁄4 | ||||
| Air Consumption (cfm) | 98 | ||||
| CONSUMABLES |
|---|
| Whirlibits |
| Thread Steel & Bits |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Side Rod | 43215 | $131.80
|
| Side Rod Nut | 43213 | $26.95
|
| Side Rod Washer | 423059 | $2.60
|
| Retainer - 7⁄8 x 3-1⁄4" | 43371 | $411.45
|
| Retainer - 1 x 4-1⁄4 | 43369 | $377.80
|
| Retainer Bolt | 33863 | $19.85
|
| Retainer Bolt Nut | 43350 | $1.75
|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check | WCSML | $11.00
|
| Contractors Air Hose | AIRH-19-50R | $124.00
|
| Hose Whip Assembly | TX15HW-CF | $191.90
|
