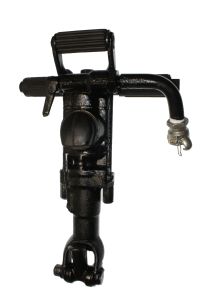

TX29RD-4-1/4 Rock Drill
These tools are manufactured and assembled in the United States. They are made from the highest mquality material to provide industrial quality performance.
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| TX29RD-8/4 | $2,315.00
|
||||
| Weight (lb) | 29 | ||||
| Length (in) | 19.5 | ||||
| Bore (in) |
2.4375
|
||||
| Stroke (in) | 1.4375 | ||||
| BPM | 2700 | ||||
| RPM | 240 | ||||
| Chuck Size (in) | 7⁄8 x 4-1⁄4 | ||||
| Air Inlet (NPT) | 3⁄4 | ||||
| Air Consumption (cfm) | 73 | ||||
| CONSUMABLES |
|---|
| Whirlibits |
| Thread Steel & Bits |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Side Rod | TX37033 | $67.80
|
| Side Rod Nut | TX37034 | $24.35
|
| Side Rod Washer | TX37035 | $2.75
|
| Retainer | TX37038 | $518.85
|
| Retainer Bolt | TX37039 | $106.05
|
| Retainer Bolt Nut | TX37040 | $12.25
|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check | WCSML | $11.00
|
| Contractors Air Hose | AIRH-19-50R | $124.00
|
| Hose Whip Assembly | TX10HW-CF | $142.25
|
