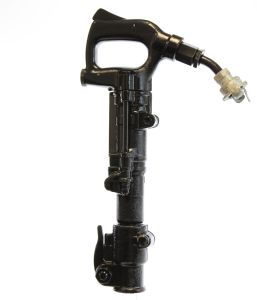

TX18HD Rock Drill
These tools are manufactured and assembled in the United States. They are made from the highest mquality material to provide industrial quality performance.
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| SPECIFICATIONS | ||
|---|---|---|
| TX18HD | $2,315.00
|
|
| Weight (lb) | 17.75 | |
| Length (in) | 18.375 | |
| Bore (in) | 1.9375 | |
| Stroke (in) | 1.89 | |
| BPM | 2900 | |
| RPM | -- | |
| Chuck Size (in) | 7⁄8 x 3-1⁄4 | |
| Air Inlet (NPT) | 3⁄8 | |
| Air Consumption (cfm) | 36 | |
| CONSUMABLES |
|---|
| Whirlibits |
| Thread Steel & Bits |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Side Rod | 98442 | $76.05
|
| Side Rod Nut | 45507 | $10.60
|
| Latch Retainer | 43752 | $152.50
|
| Retainer Bolt | 43787B | $29.25
|
| Retainer Bolt Nut | 43790 | $1.90
|
| Hose Whip Assembly | TX10HW-CF | $142.25
|
| Rock Drill Oil - 1 Gallon | RDO1G | $42.00
|
| Rock Drill Oil - 5 Gallon | RDO5G | $122.00
|
| Line Oiler | LO-10PF | $81.00
|
| Whip Check | WCSML | $11.00
|
| Contractors Air Hose | AIRH-19-50R | $124.00
|
