Darda Rock Splitters
-
Enormous splitting force up to 413 tons
-
Dust free and near silent operation
-
Vibration free
-
Light weight
-
Precision work
-
Always controllable
-
For use in close quarters and hard to access places.
-
Easy handling
Applications
Demolition of concrete and reinforced concrete
Demolition of rock and natural stone
Block quarrying in the natural stone industry
Darda Gas Powered Rock Splitters
| Gas Powered Rock Splitting Tool Assemblies Powered by 3.75 HP Briggs & Stratton Engine (5 Gal. Pump) |
||
|---|---|---|
| Part No. | Model | Price |
| D01-12 | Size 12 Darda Splitter -Complete Unit | $25,000.00
|
| D01-9 | Size 9 Darda Splitter - Complete Unit | $22,000.00
|
| D01-2 | Size 2 Darda Splitter - Complete Unit | $18,000.00
|
| D01 | Hydraulic Power Unit Only, 3.75 Hp Briggs & Stratton Gas Engine, 5 gal. Reservoir | $7,733.00
|
All Splitting Assemblies Include:
- Splitting Cylinder
- Hydraulic Power Unit
- 1 Pr. High & Low Pressure 30' Hose with Quick-Connect Couplings and Covers
- 1/2 Pint Lubricant
- Operating Instruction Manual
*Units shipped dry.

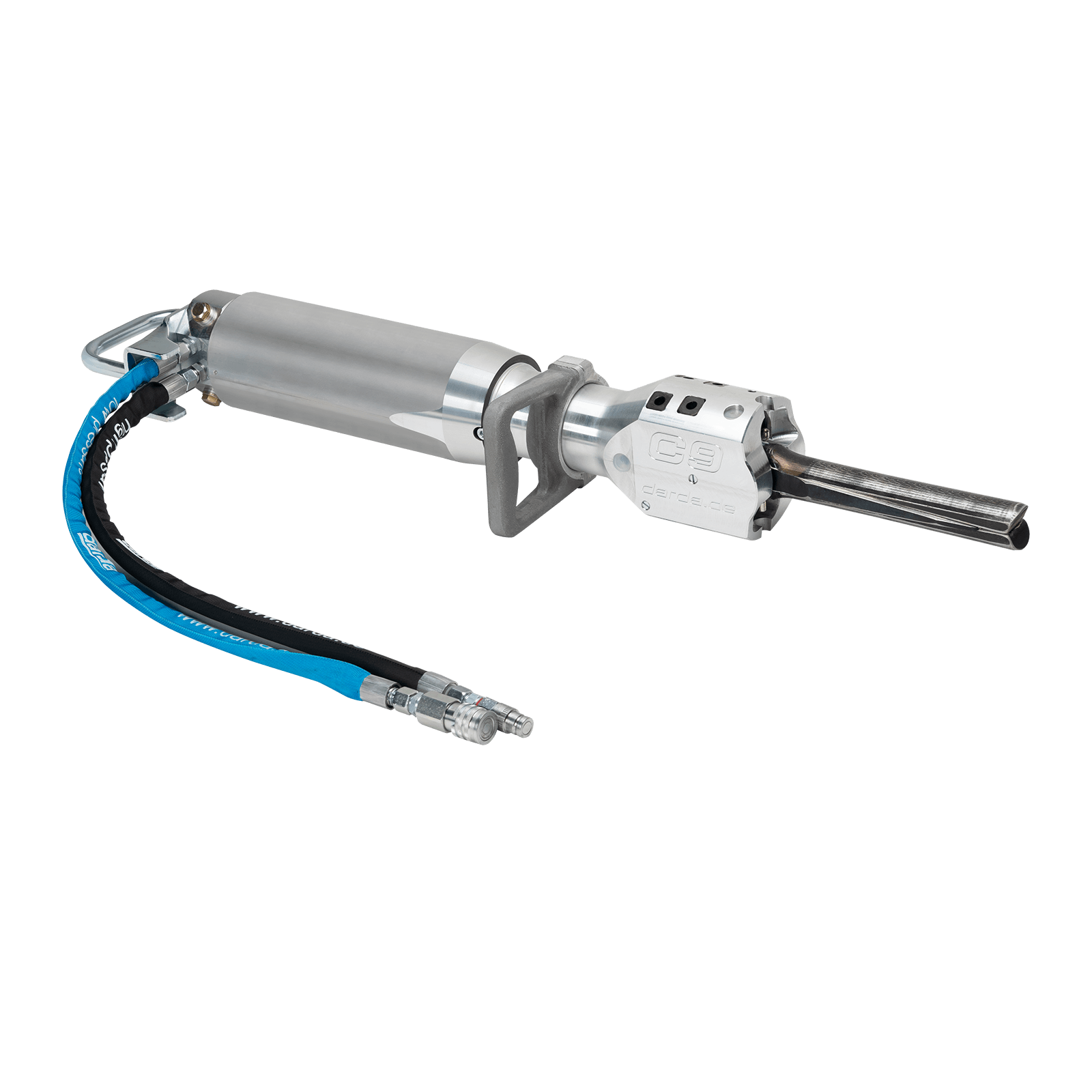

| Rock & Concrete Splitting Cylinders (No Power Pack) Includes Plug, Feathers, Whips, Quick-Connect Couplings & Covers |
||
|---|---|---|
| D00-12 | Darda Splitting Cylinder, Size 12 | $19,115.00
|
| D00-9 | Darda Splitting Cylinder, Size 9 | $15,500.00 $11,900.00
|
| D00-2 | Darda Splitting Cylinder, Size 2 | $13,692.00
|
$150 Flat Rate LTL/Truck Shipping to Commercial destinations*
$250 flat rate for Residential destinations in Continental US. Rates will be quoted for Alaska, Hawaii and all international destinations.
| Block Manifolds Used to run multiple cylinders on one power pack *Shipped complete |
||
|---|---|---|
| D016-13 | Flow Distribution Bar for 2 Cylinders - includes 2 sets of 10' high and low pressure hoses, quick-connect couplings with covers and fittings | $2,267.00
|
| D016-14 | Flow Distribution Bar for 3 Cylinders - includes 3 sets of 10' high and low pressure hoses, quick-connect couplings with covers and fittings | $2,550.00
|
| D016-15 | Flow Distribution Bar for 4 Cylinders - includes 4 sets of 10' high and low pressure hoses, quick-connect couplings with covers and fittings | $2,833.00
|
Darda ROCK SPLITTERS
DARDA CYLINDER SPECIFICATIONS
| Model | #12 |
|
#9 |
|
#2 |  |
|---|---|---|---|---|---|---|
| Weight | 68 Lbs. | 50 lbs. | 45 lbs. | |||
| Overall Length | 50 3/4" | 40" |
30" |
|||
| Maximum Expansion | .75" - 1.87" | .78" | .33" | |||
| Size Hole Required | 1 3/4" | 1 3/4" | 1 3/16" | |||
| Minimum Hole Depth | 26" | 18" | 12" | |||
| Maximum Splitting Force | 385 Tons | 220 Tons | 220 Tons |
The No. 12 cylinder, the largest and most powerful, is recommended for heavy duty jobs and reinforced concrete. The No. 9 is recommended where work is light or in a confined area. All cylinders operate up to 7100 P.S.I. A complete unit consists of a cylinder, 30ft. high and low pressure hoses, high and low pressure whips, quick connect couplings, hydraulic pump and lubricant.
ELCO PUMP SPECIFICATIONS
|
|
|
|
|
| Model | Electric 03 | Air 02 | Gasoline 01 |
|---|---|---|---|
| Weight | 74 lbs. | 70 lbs. | 78 lbs. |
| Height | 24" | 19 1/4" | 21 1/4" |
| Width | 18" | 18" | 18" |
| Depth | 12 1/2" | 12 1/2" | 12 1/2" |
| Oil Capacity | 5 Gal. | 5 Gal. | 5 Gal. |
| Motor | 3450 RPM, 115 Volts at 20 Amps & 220 Volts at 10 Amps. | Air Motor requires 50-80 cfm at 100 P.S.I. | 3.75 h.p. B & S gas engine |

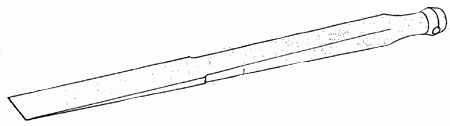

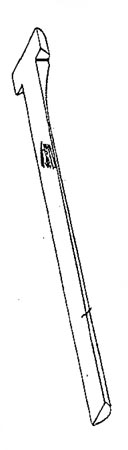

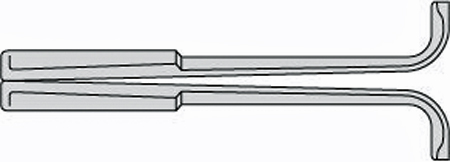

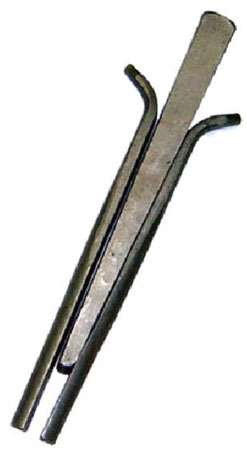

Plugs and Feathers
| Part No. | Description | Price |  |
|---|---|---|---|
| D010-2 | Plug, Size 2 | $563.00
|
|
| D010-9 | Plug, Size 9 | $791.00
|
|
| D010-12 | Plug, Size 12 | $863.00
|
|
| D011-2 | Feather, Size 2 | $517.00
|
|
| D011-812 | Feather, Size 8 11 & 12 | $873.00
|
|
| D011-9 | Feather, Size 9 | $827.00
|
|
| D011-8123 | Enlarging Feather, Size 8 & 12 | $884.00
|
|
| D011-93 | Enlarging Feather, Size 9 | $796.00
|

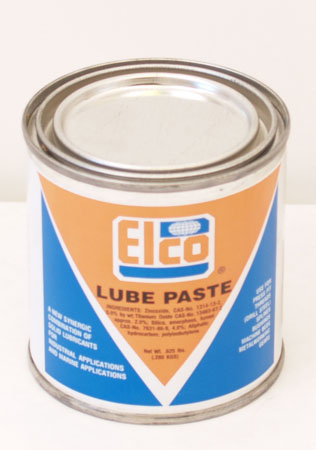

Lubricants
| Part No. | Description | Price |  |
|---|---|---|---|
| DARDA-OIL | Aero HFA Fluid - 5 Gallons | QUOTE |
|
| 2123-100-125 | Plug & Feather Lubricant - 1 Pint (1.25#) Can | $70.00
|
|
| 2123-104-125 | Plug & Feather Lubricant - 4 pack of 1 Pint (1.25#) Cans | $258.00
|
|
| 2123-106-125 | Plug & Feather Lubricant - 6 pack of 1 Pint (1.25#) Cans | $362.00
|
|
| 2123-112-125 | Plug & Feather Lubricant - 12 pack of 1 Pint (1.25#) Cans | $775.00
|
|
| 2123-106-250 | Plug & Feather Lubricant - 6 pack of 2 Pint (2.50#) Cans | $723.00
|

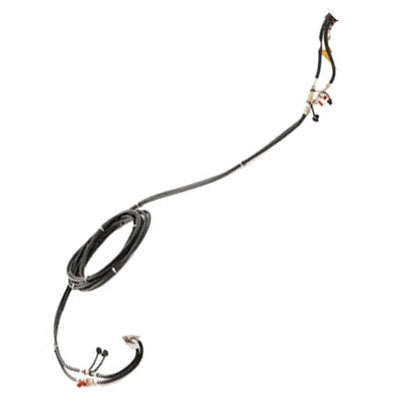

Hoses
Each hose assembly consists of one High or Low Pressure hose, one Quick Connect Coupler Set, two Coupler Covers, and either a 1/4" Female x 3/8" Male Reducer (High) or Low Pressure Hose Connector (Low).
| Part No. | Description | Price |  |
|---|---|---|---|
| DARDA-EXT-30-SET | 30' high and low pressure extensions hose set | QUOTE |
|
| DARDA-EXT-50-SET | 50' high and low pressure extensions hose set | QUOTE |
|
| DARDA-EXT-30-HP | 30' high pressure hose extensions assembly | QUOTE |
|
| DARDA-EXT-50-HP | 50' high pressure hose extensions assembly | QUOTE |
|
| DARDA-EXT-30-LP | 30' low pressure hose extensions assembly | QUOTE |
|
| DARDA-EXT-50-LP | 50' low pressure hose extensions assembly | QUOTE |
|
| Hose Components | |||
| D016-20 | 30' High Pressure Hose (Standard) - Couplings not included | QUOTE |
|
| D016-21 | 30' Low Pressure Hose (Standard) - Couplings not included | QUOTE |
|
| D016-50 | 50' High Pressure Hose - Couplings not included | QUOTE |
|
| D016-51 | 50' Low Pressure Hose - Couplings not included | QUOTE |
|
| D016-26 | Quick Connect Coupler Set | QUOTE |
|
| D016-27 | Coupler Cover | QUOTE |
|
*Power Unit Motors are interchangeable. Ask about our Conversion Kits.
Product Manual 1.6M
00-2, 00-21, 00-3, 00-31, 00-5, 00-51 Cylinders & 06-200 Commanding Valve
Applications & Notes 1.2M
00-7, 00-8S, and 11S Cylinders & 06-200 Commanding Valve Specifications
00-8 Cylinder (Old Style) & 06-200 Commanding Valve
HYDRAULIC FLUID
Shell Aero Fluid #41
Exxon Univis HVI13 Aircraft Grade
Chevron Hydraulic Oil 5606A

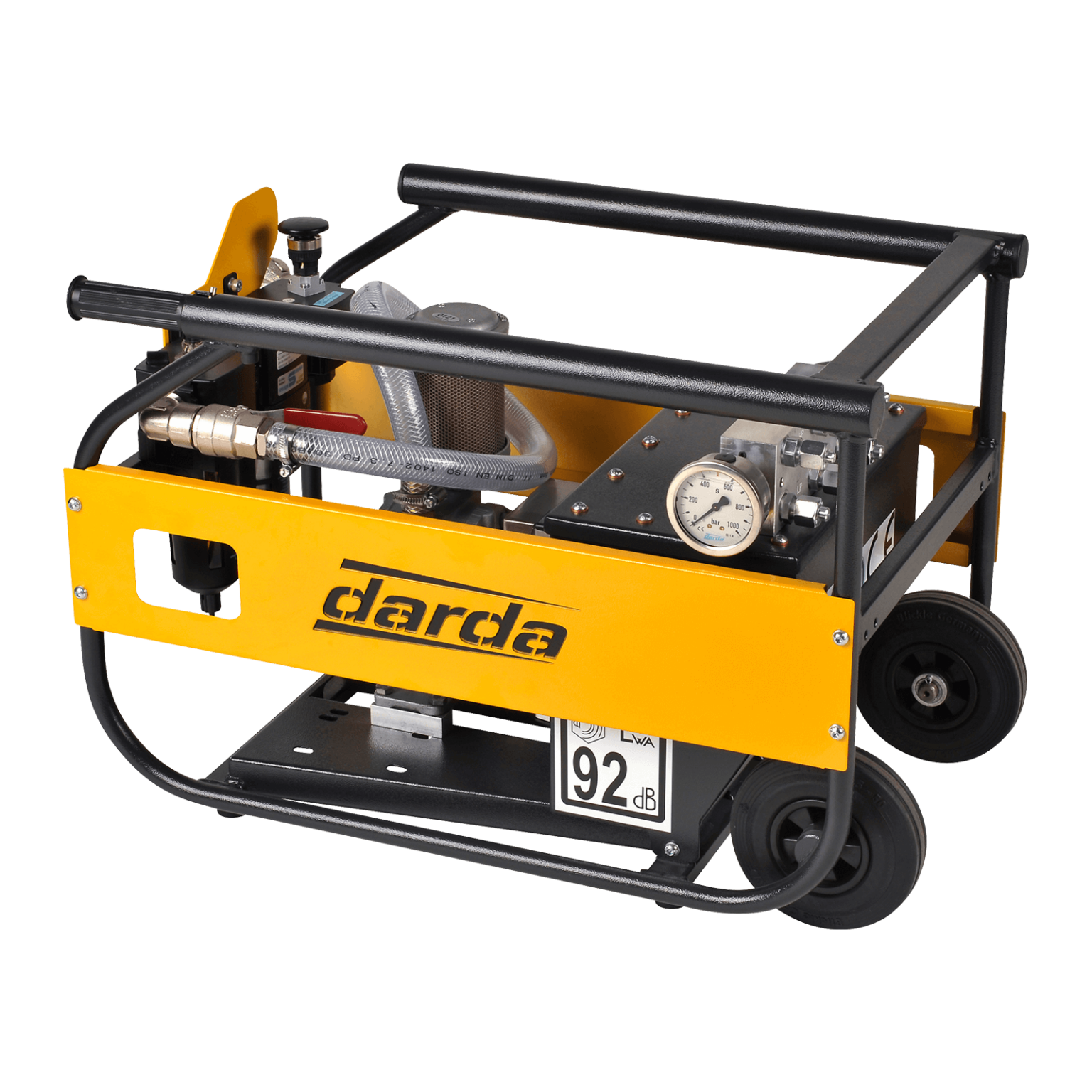

| Air Powered Rock Splitting Tool Assemblies Powered by 3 HP Air Motor, Large Reservoir (5 Gal. Pump) |
||
|---|---|---|
| Part No. | Model | Price |
| D02-12 | $25,000.00
|
|
| D02-9 | Size 9 Darda Splitter - Complete Unit | $22,000.00
|
| D02-2 | Size 2 Darda Splitter - Complete Unit | $18,000.00
|
| D02 |
Hydraulic Power Unit Only, 3 Hp Air Motor, 50-80 CFM at 100 PSI, 5 Gal Reservoir |
$7,733.00
|
All Splitting Assemblies Include:
- Splitting Cylinder
- Hydraulic Power Unit
- 1 Pr. High & Low Pressure 30' Hose with Quick-Connect Couplings and Covers
- 1/2 Pint Lubricant
- Operating Instruction Manual
*Units shipped dry
| Darda Rock & Concrete Splitting Cylinders Rock & Concrete Splitting Cylinders (No Power Pack) Includes Plug, Feathers, Whips, Quick-Connect Couplings & Covers |
||
|---|---|---|
| Part No. | Model | Price |
| D00-12 | Darda Splitting Cylinder, Size 12 | $19,115.00
|
| D00-9 | Darda Splitting Cylinder, Size 9 | $15,500.00 $11,900.00
|
| D00-2 | Darda Splitting Cylinder, Size 2 | $13,692.00
|
$150 Flat Rate LTL/Truck Shipping to Commercial destinations*
$250 flat rate for Residential destinations in Continental US. Rates will be quoted for Alaska, Hawaii and all international destinations.
| Block Manifolds Used to run multiple cylinders on one power pack *Shipped complete |
||
|---|---|---|
| Part No. | Description | Price |
| D016-13 | Flow Distribution Bar for 2 Cylinders - includes 2 sets of 10' high and low pressure hoses, quick-connect couplings with covers and fittings | $2,267.00
|
| D016-14 | Flow Distribution Bar for 3 Cylinders - includes 3 sets of 10' high and low pressure hoses, quick-connect couplings with covers and fittings | $2,550.00
|
| D016-15 | Flow Distribution Bar for 4 Cylinders - includes 4 sets of 10' high and low pressure hoses, quick-connect couplings with covers and fittings | $2,833.00
|
Darda ROCK SPLITTERS
DARDA CYLINDER SPECIFICATIONS
| Model | #12 |
|
#9 |
|
#2 | |
|---|---|---|---|---|---|---|
| Weight | 68 Lbs. | 50 lbs. | 45 lbs. | |||
| Overall Length | 50 3/4" | 40" |
30" |
|||
| Maximum Expansion | .75" - 1.87" | .78" | .33" | |||
| Size Hole Required | 1 3/4" | 1 3/4" | 1 3/16" | |||
| Minimum Hole Depth | 26" | 18" | 12" | |||
| Maximum Splitting Force | 385 Tons | 220 Tons | 220 Tons |
The No. 12 cylinder, the largest and most powerful, is recommended for heavy duty jobs and reinforced concrete. The No. 9 is recommended where work is light or in a confined area. All cylinders operate up to 7100 P.S.I. A complete unit consists of a cylinder, 30ft. high and low pressure hoses, high and low pressure whips, quick connect couplings, hydraulic pump and lubricant.
ELCO PUMP SPECIFICATIONS
|
|
|
|
|
| Model | Electric 03 | Air 02 | Gasoline 01 |
|---|---|---|---|
| Weight | 74 lbs. | 70 lbs. | 78 lbs. |
| Height | 24" | 19 1/4" | 21 1/4" |
| Width | 18" | 18" | 18" |
| Depth | 12 1/2" | 12 1/2" | 12 1/2" |
| Oil Capacity | 5 Gal. | 5 Gal. | 5 Gal. |
| Motor | 3450 RPM, 115 Volts at 20 Amps & 220 Volts at 10 Amps. | Air Motor requires 50-80 cfm at 100 P.S.I. | 3.75 h.p. B & S gas engine |
Plugs and Feathers
| Part No. | Description | Price | |
|---|---|---|---|
| D010-2 | Plug, Size 2 | $563.00
|
|
| D010-9 | Plug, Size 9 | $791.00
|
|
| D010-12 | Plug, Size 12 | $863.00
|
|
| D011-2 | Feather, Size 2 | $517.00
|
|
| D011-812 | Feather, Size 8 11 & 12 | $873.00
|
|
| D011-9 | Feather, Size 9 | $827.00
|
|
| D011-8123 | Enlarging Feather, Size 8 & 12 | $884.00
|
|
| D011-93 | Enlarging Feather, Size 9 | $796.00
|
Lubricants
| Part No. | Description | Price | |
|---|---|---|---|
| DARDA-OIL | Aero HFA Fluid - 5 Gallons | QUOTE |
|
| 2123-100-125 | Plug & Feather Lubricant - 1 Pint (1.25#) Can | $70.00
|
|
| 2123-104-125 | Plug & Feather Lubricant - 4 pack of 1 Pint (1.25#) Cans | $258.00
|
|
| 2123-106-125 | Plug & Feather Lubricant - 6 pack of 1 Pint (1.25#) Cans | $362.00
|
|
| 2123-112-125 | Plug & Feather Lubricant - 12 pack of 1 Pint (1.25#) Cans | $775.00
|
|
| 2123-106-250 | Plug & Feather Lubricant - 6 pack of 2 Piont (2.50#) Cans | $723.00
|
Hoses
Each hose assembly consists of one High or Low Pressure hose, one Quick Connect Coupler Set, two Coupler Covers, and either a 1/4" Female x 3/8" Male Reducer (High) or Low Pressure Hose Connector (Low).
| Part No. | Description | Price | |
|---|---|---|---|
| DARDA-EXT-30-SET | 30' high and low pressure extensions hose set | QUOTE |
|
| DARDA-EXT-50-SET | 50' high and low pressure extensions hose set | QUOTE |
|
| DARDA-EXT-30-HP | 30' high pressure hose extensions assembly | QUOTE |
|
| DARDA-EXT-50-HP | 50' high pressure hose extensions assembly | QUOTE |
|
| DARDA-EXT-30-LP | 30' low pressure hose extensions assembly | QUOTE |
|
| DARDA-EXT-50-LP | 50' low pressure hose extensions assembly | QUOTE |
|
| Hose Components | |||
| D016-20 | 30' High Pressure Hose (Standard) - Couplings not included | QUOTE |
|
| D016-21 | 30' Low Pressure Hose (Standard) - Couplings not included | QUOTE |
|
| D016-50 | 50' High Pressure Hose - Couplings not included | QUOTE |
|
| D016-51 | 50' Low Pressure Hose - Couplings not included | QUOTE |
|
| D016-26 | Quick Connect Coupler Set | QUOTE |
|
| D016-27 | Coupler Cover | QUOTE |
|
*Power Unit Motors are interchangeable. Ask about our Conversion Kits.
Product Manual 1.6M
00-2, 00-21, 00-3, 00-31, 00-5, 00-51 Cylinders & 06-200 Commanding Valve
Applications & Notes 1.2M
00-7, 00-8S, and 11S Cylinders & 06-200 Commanding Valve Specifications
00-8 Cylinder (Old Style) & 06-200 Commanding Valve
HYDRAULIC FLUID
Shell Aero Fluid #41
Exxon Univis HVI13 Aircraft Grade
Chevron Hydraulic Oil 5606A
