MAI Grout Rod, Bits & Accessories
Hollow Grout Rod
due to variations in size and pitch of some imported steels
Please call out the manufacturer we are threading to, so that we may insure we have a current sample and all components will mate properly
Grout Bodies and Rotojec Shanks
Crowder Supply keeps a large stock of finished thread combinations in stock in both Standard and HD shanks.

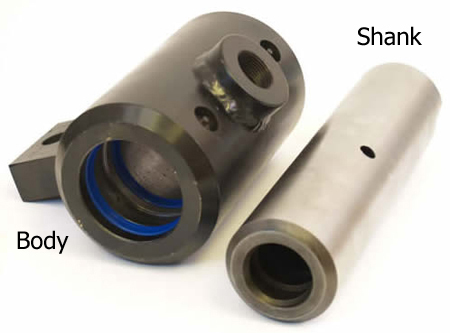

Assembly consists of a Grout Body and a Rotojec Shank. In order to have a complete Grout Swivel Assembly, you must order both.
Threads will be left-hand unless we are notified of right-hand requirements.
 |
 Standard Duty - 3" OD Shank - 4-3⁄4" OD Body |
|---|
Standard Duty
3" OD Shank - 4-3⁄4" OD Body
| Part Number | Wt. | Price | |
|---|---|---|---|

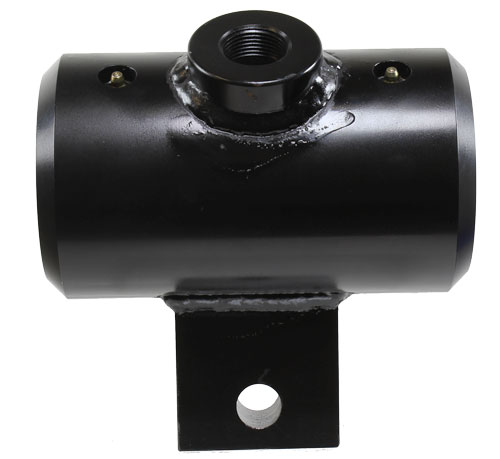

| Grout Injection Body (with seals) | RJ-BODY | 25 | $762.00
|

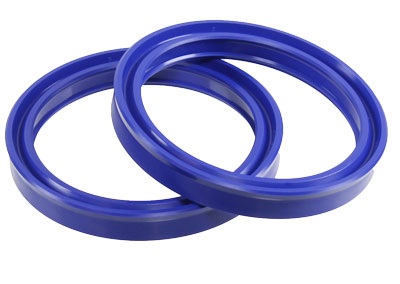

| Seals/Double Lip (set of 4) | RJ-SEALS | 0.1 | $73.00
|
Choose Striking Bar (Closed):
Choose Grout Bar (Open):
| TTN30 | R32 | X32 | R38 | X38 |
|---|---|---|---|---|
| RJ-T38-TTN30 $508.00
|
RJ-T38-R32 $508.00
|
RJ-T38-X32 $508.00
|
RJ-T38-R38 $508.00
|
RJ-T38-X38 $508.00
|
| RJ-T45-TTN30 $508.00
|
RJ-T45-R32 $508.00
|
RJ-T45-X32 $508.00
|
RJ-T45-R38 $508.00
|
RJ-T45-X38 $508.00
|
| RJ-T51-TTN30 $508.00
|
RJ-T51-R32 $508.00
|
RJ-T51-X32 $508.00
|
RJ-T51-R38 $508.00
|
RJ-T51-X38 $508.00
|
| RJ-H55-TTN30 CALL | RJ-H55-R32 $508.00
|
RJ-H55-X32 $508.00
|
RJ-H55-R38 $508.00
|
RJ-H55-X38 $508.00
|
| TTN40 | T45 | R51 | X51 | TTN52 |
|---|---|---|---|---|
| RJ-T38-TTN40 $508.00
|
RJ-T38-T45 $508.00
|
RJ-T38-R51 $508.00
|
RJ-T38-X51 $508.00
|
RJ-T38-TTN52 $508.00
|
| RJ-T45-TTN40 $508.00
|
RJ-T45-T45 $508.00
|
RJ-T45-R51 $508.00
|
RJ-T45-X51 $508.00
|
RJ-T45-TTN52 $508.00
|
| RJ-T51-TTN40 $508.00
|
RJ-T51-T45 $508.00
|
RJ-T51-R51 $508.00
|
RJ-T51-X51 $508.00
|
RJ-T51-TTN52 $508.00
|
| RJ-H55-TTN40 $508.00
|
RJ-H55-T45 $508.00
|
RJ-H55-R51 $508.00
|
RJ-H55-X51 $508.00
|
RJ-H55-TTN52 $508.00
|
Heavy Duty
4" OD Shank - 5-3⁄4" OD Body
| Part Number | Wt. | Price | |
|---|---|---|---|

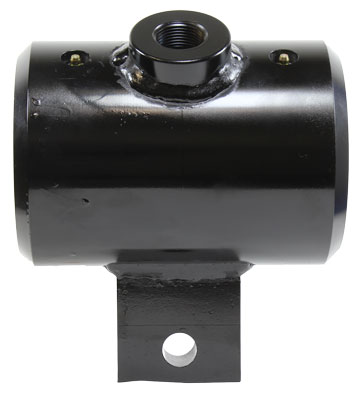

| Grout Injection Body (with Seals) | RJ-BODYHD | 32 | $1,016.00
|
| Seals/Double Lip (set of 4) | RJ-SEALSHD | 0.1 | $142.00
|
Choose Striking Bar (Closed):
Choose Grout Bar (Open):
| TTN30HD | R32HD | X32HD | R38HD | X38HD | TTN40HD |
|---|---|---|---|---|---|
| RJ-T38-TTN30HD $678.00
|
RJ-T38-R32HD $678.00
|
RJ-T38-X32HD $678.00
|
RJ-T38-R38HD $678.00
|
RJ-T38-X38HD $678.00
|
RJ-T38-TTN40HD $678.00
|
| RJ-T45-TTN30HD $678.00
|
RJ-T45-R32HD $678.00
|
RJ-T45-X32HD $678.00
|
RJ-T45-R38HD $678.00
|
RJ-T45-X38HD $678.00
|
RJ-T45-TTN40HD $678.00
|
| RJ-T51-TTN30HD $678.00
|
RJ-T51-R32HD $678.00
|
RJ-T51-X32HD $678.00
|
RJ-T51-R38HD $678.00
|
RJ-T51-X38HD $678.00
|
RJ-T51-TTN40HD $678.00
|
| RJ-H55-TTN30HD $678.00
|
RJ-H55-R32HD $678.00
|
RJ-H55-X32HD $678.00
|
RJ-H55-R38HD $678.00
|
RJ-H55-X38HD $678.00
|
RJ-H55-TTN40HD $678.00
|
| T45HD | R51HD | X51HD | TTN52HD | T76HD |
|---|---|---|---|---|
| RJ-T38-T45HD $678.00
|
RJ-T38-R51HD $678.00
|
RJ-T38-X51HD $678.00
|
RJ-T38-TTN52HD $678.00
|
RJ-T38-T76HD $678.00
|
| RJ-T45-T45HD $678.00
|
RJ-T45-R51HD $678.00
|
RJ-T45-X51HD $678.00
|
RJ-T45-TTN52HD $678.00
|
RJ-T45-T76HD $678.00
|
| RJ-T51-T45HD $678.00
|
RJ-T51-R51HD $678.00
|
RJ-T51-X51HD $678.00
|
RJ-T51-TTN52HD $678.00
|
RJ-T51-T76HD $678.00
|
| RJ-H55-T45HD $678.00
|
RJ-H55-R51HD $678.00
|
RJ-H55-X51HD $678.00
|
RJ-H55-TTN52HD $678.00
|
RJ-H55-T76HD $678.00
|
Super Duty
5" OD Shank - 6-3⁄4" OD Body
| Part Number | Wt. | Price | |
|---|---|---|---|
| Grout Injection Body (with seals) | RJ-BODYSD | 25 | $2,059.00
|
| Seals/Double Lip (set of 4) | RJ-SEALSSD | 0.1 | $170.00
|
Choose Striking Bar (Closed):
Choose Grout Bar (Open):
| TTN40 | R51 | X51 | TTN52 |
|---|---|---|---|
| RJ-T51-TTN40SD $1,315.00
|
RJ-T51-R51SD $1,315.00
|
RJ-T51-X51SD $1,315.00
|
RJ-T51-TTN52SD $1,315.00
|
| RJ-H55-TTN40SD $1,315.00
|
RJ-H55-R51SD $1,315.00
|
RJ-H55-X51SD $1,315.00
|
RJ-H55-TTN52SD $1,315.00
|
| RJ-C64-TTN40SD $1,315.00
|
RJ-C64-R51SD $1,315.00
|
RJ-C64-X51SD $1,315.00
|
RJ-C64-TTN52SD $1,315.00
|
| RJ-T76-TTN40SD $1,315.00
|
RJ-T76-R51SD $1,315.00
|
RJ-T76-X51SD $1,315.00
|
RJ-T76-TTN52SD $1,315.00
|
| RJ-H90-TTN40SD $1,315.00
|
RJ-H90-R51SD $1,315.00
|
RJ-H90-X51SD $1,315.00
|
RJ-H90-TTN52SD $1,315.00
|
| T76 | X76 | T103 |
|---|---|---|
| RJ-T51-T76SD $1,315.00
|
RJ-T51-X76SD $1,315.00
|
RJ-T51-T103SD $1,315.00
|
| RJ-H55-T76SD $1,315.00
|
RJ-H55-X76SD $1,315.00
|
RJ-H55-T103SD $1,315.00
|
| RJ-C64-T76SD $1,315.00
|
RJ-C64-X76SD $1,315.00
|
RJ-C64-T103SD $1,315.00
|
| RJ-T76-T76SD $1,315.00
|
RJ-T76-X76SD $1,315.00
|
RJ-T76-T103SD $1,315.00
|
| RJ-H90-T76SD $1,315.00
|
RJ-H90-X76SD $1,315.00
|
RJ-H90-T103SD $1,315.00
|
We keep a large stock of Through-Hardened RotoJec Shank Blanks to run RUSH orders. Typically we can have any thread combination done in 1-3 days with machine set up fee.
Machine set up costs on RUSH or less than MOQ orders is $175.00 per thread.
Special Orders
| Machine Set Up Fee - Per Thread |
|---|
| LBRTHREAD $175.00
|
Seal Installation

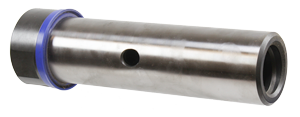

Collared Grout Shanks
Collared Grout Shanks are made on request. They are $131.00 more expensive than the standard shank price. Contact us to place an order for the Collared Grout Shank.Swivel Savers

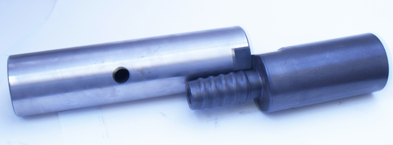

Swivels are machined and heat treated while sacrificial grout rod is relatively soft. In heavy percussive applications it is not uncommon for the grout rod to deform inside of the swivel causing the rod to stick inside the Rotojec shank. Swivel savers are designed with a shortened male thread to facilitate removal from the shank and send the percussive energy through the shoulder of the swivel. If a rod becomes stuck in the swivel saver – you should be able to remove the hardened saver from the hardened shaft and extract the softer grout rod from the saver "at your convenience.” It is also common to use these savers as adaptors to effectively drive several different sizes of grout rod with the same Rotojec shank.
| R51M TO R51F | SSR51M-R51F | $210.00
|
| R38M TO R38F | SSR38M-R38F | $169.00
|
| R51M TO R38F | SSR51M-R38F | $210.00
|
| R38M TO R51F | SSR38M-R51F | $210.00
|
| R38M TO R32F | SSR38M-R32F | $169.00
|

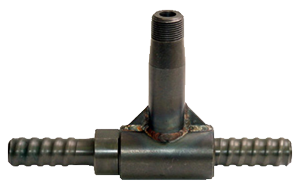

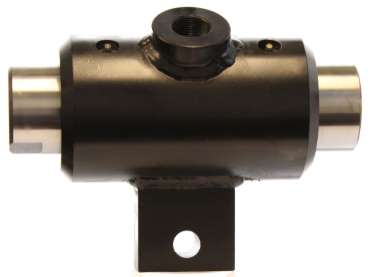

Grout Swivels

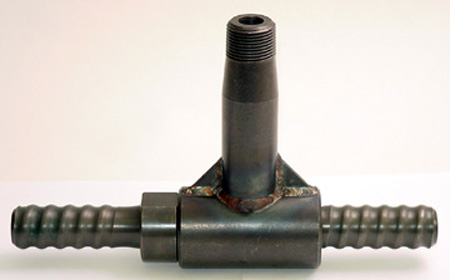

The above image consists of a shank adaptor, coupling adaptor, a grout swivel assembly, another coupling adaptor, a sacrificial grout rod, and sacrificial grout bit. A grout swivel assembly is made up of a combination of a flushing collar, junction bar, and two seals.
 Grout Swivel Assembly |
 Flushing Collar |
 Junction Bar |
 Seals |
|||||
|---|---|---|---|---|---|---|---|---|
| R32- 1 1⁄4" Rope | GSR32 | $443.00
|
GSR32-FC | $278.00
|
GSR32-JB | $227.00
|
GSR32-S | $15.00
|
| R38 - 1 1⁄2" Rope | GSR38 | $490.00
|
GSR38-FC | $278.00
|
GSR38-JB | $227.00
|
GSR38-S | $15.00
|
| T38 | GST38 | $490.00
|
GSR38-FC | $278.00
|
GST38-JB | $211.00
|
GSR38-S | $15.00
|
Stud Rods and Stud Rods Adaptors
Stud rods are short sections of male to male rods that are used to extend the reach slightly and to adapt to different thread than what you may currently have available. These are machined and heat treated for strength and longevity.
| H55 To T45 (with flat) | SRH55-T45 | $198.00
|
| H55 To T51 (with flat) | SRH55-T51 | $198.00
|
| T51 To R51 (with flat) | SRT51-R51 | $169.00
|
| T51 to T45 (with flat) | SRT51-T45 | $169.00
|
| T45 To R32 (with flat) | SRT45-R32 | $128.00
|
| T45 To T38 (with flat) | SRT45-T38 | $128.00
|
| T38 To R32 | SRT38-R32 | $98.00
|
| T38 To R25 | SRT38-R25 | $98.00
|
| R25 To R25 (Extension Rod with flat) | ER25-25R-12 | QUOTE |
| R32 To R25 (with flat) | SRR32-R25 | $80.00
|
| R32 to R32 (Extension Rod with flat) | ER32-32R-8 | $85.00
|
| R32 to R32 (Extension Rod with flat) | ER32-32R-12 | $85.00
|
| TTN40 Stud Rod 8" OAL (with flat) | ETTN40-40R-8 | $110.00
|
| R38 to R32 (with flat) | SRR38-R32 | $98.00
|
| R51 To R51 (with flat) | ER51-51R-12 | $157.00
|
| T51 To T51 (with flat) | ET51-51R-12 | $189.00
|
| H55 To H55 (with flat) | EH55-55R-12 | $204.00
|
| T45 Male All Thread Cut to length Price per Foot |
ET45-12AT | $88.00
|
| T38 Male All Thread Cut to length Price per Foot |
ET38-12AT | $60.00
|
| R38 Male All Thread Cut to length Price per Foot |
ER38-12AT | $73.00
|
| R32 Male All Thread Cut to length Price per Foot |
ER32-12AT | $66.00
|
Coupling Adaptors

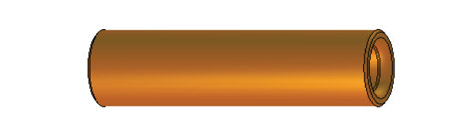

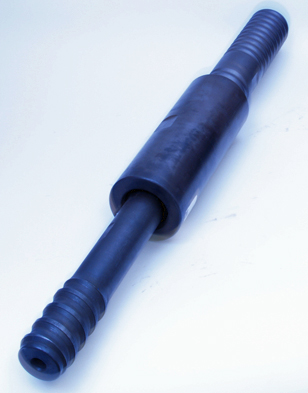

Coupling adaptors are female to female and used to adapt to a different thread than what you may currently be running. They are machined and heat treated blast-hole quality couplings. We keep a large variety in stock, though minimum order quantities may apply.
Choose One End:
Choose Other End:
| R25 | R32 | R38 | R51 | H55 | T38 |
|---|---|---|---|---|---|
| CPLR25 $45.00
|
CAR25-R32 $110.00
|
CAR25-R38 $136.00
|
CAR25-R51 $290.00
|
CAR25-H55 $290.00
|
CAR25-T38 $136.00
|
| CAR25-R32 $110.00
|
CPLR32 $50.00
|
CAR32-R38 $112.00
|
CAR32-R51 $290.00
|
CAR32-H55 $290.00
|
CAR32-T38 $112.00
|
| CAR25-R38 $136.00
|
CAR32-R38 $112.00
|
CPLR38 $76.00
|
CAR38-R51 $290.00
|
CAR38-H55 $290.00
|
CAR38-T38 $112.00
|
| CAR25-R51 $290.00
|
CAR32-R51 $290.00
|
CAR38-R51 $290.00
|
CPLR51 $262.00
|
CAR51-H55 $290.00
|
CAT38-R51 $290.00
|
| CAR25-H55 $290.00
|
CAR32-H55 $290.00
|
CAR38-H55 $290.00
|
CAR51-H55 $290.00
|
CPLH55 QUOTE |
CAT38-H55 $290.00
|
| CAR25-T38 $136.00
|
CAR32-T38 $112.00
|
CAR38-T38 $112.00
|
CAT38-R51 $290.00
|
CAT38-H55 $290.00
|
CPLT38 $76.00
|
| CAR25-T45 $175.00
|
CAR32-T45 $175.00
|
CAR38-T45 $175.00
|
CAT45-R51 $290.00
|
CAT45-H55 $290.00
|
CAT38-T45 $143.00
|
| CAR25-T51 $290.00
|
CAR32-T51 $290.00
|
CAR38-T51 $290.00
|
CAR51-T51 $290.00
|
CAT51-H55 $290.00
|
CAT38-T51 $290.00
|
| CAR25-TTN40 $136.00
|
CAR32-TTN40 $136.00
|
CAR38-TTN40 $136.00
|
CATTN40-R51 $290.00
|
CATTN40-H55 $290.00
|
CAT38-TTN40 $136.00
|
| CAR25-TTN52 $290.00
|
CAR32-TTN52 $290.00
|
CAR38-TTN52 $290.00
|
CAR51-TTN52 $290.00
|
CATTN52-H55 $290.00
|
CAT38-TTN52 $290.00
|
| T45 | T51 | TTN30 | TTN40 | TTN52 | T76 |
|---|---|---|---|---|---|
| CAR25-T45 $175.00
|
CAR25-T51 $290.00
|
CAR25-TTN30 $136.00
|
CAR25-TTN40 $136.00
|
CAR25-TTN52 $290.00
|
CAR25-T76 $467.00
|
| CAR32-T45 $175.00
|
CAR32-T51 $290.00
|
CATTN30-R32 $135.00
|
CAR32-TTN40 $136.00
|
CAR32-TTN52 $290.00
|
CAR32-T76 $467.00
|
| CAR38-T45 $175.00
|
CAR38-T51 $290.00
|
CAR38-TTN30 $136.00
|
CAR38-TTN40 $136.00
|
CAR38-TTN52 $290.00
|
CAR38-T76 $467.00
|
| CAT45-R51 $290.00
|
CAR51-T51 $290.00
|
CAR51-TTN30 $290.00
|
CATTN40-R51 $290.00
|
CAR51-TTN52 $290.00
|
CAR51-T76 $467.00
|
| CAT45-H55 $290.00
|
CAT51-H55 $290.00
|
CATTN30-H55 CALL | CATTN40-H55 $290.00
|
CATTN52-H55 $290.00
|
CAH55-T76 $467.00
|
| CAT38-T45 $143.00
|
CAT38-T51 $290.00
|
CATTN30-T38 $136.00
|
CAT38-TTN40 $136.00
|
CAT38-TTN52 $290.00
|
CAT38-T76 $467.00
|
| CPLT45 $109.00
|
CAT45-T51 $234.00
|
CATTN30-T45 $175.00
|
CATTN40-T45 $175.00
|
CAT45-TTN52 $290.00
|
CAT45-T76 $467.00
|
| CAT45-T51 $234.00
|
CPLT51 $140.00
|
CATTN30-T51 CALL | CATTN40-T51 $290.00
|
CAT51-TTN52 $290.00
|
CAT51-T76 $467.00
|
| CATTN40-T45 $175.00
|
CATTN40-T51 $290.00
|
CATTN30-TTN40 $136.00
|
CPLTTN40 $136.00
|
CATTN40-TTN52 $290.00
|
CATTN40-T76 $467.00
|
| CAT45-TTN52 $290.00
|
CAT51-TTN52 $290.00
|
CATTN30-TTN52 CALL | CATTN40-TTN52 $290.00
|
CPLTTN52 QUOTE |
CATTN52-T76 $467.00
|
| Miscellaneous Coupling Adaptors | ||
|---|---|---|
| CAR28-R32 | 1-1/8" Rope to 1 1⁄4" Rope | $136.00
|
| CAR32-R38SQ | 1 1⁄4" Rope - 1 1⁄2" Rope SQ. | $180.00
|
| CAR32-T38SQ | 1 1⁄4" Rope - T38 W/ Flats | $175.00
|
| CPLR32HD | R32 Coupling - Heavy Duty (2" OD) | $78.00
|
| CPLR32T | R32 Coupling - Thin Wall (1-5⁄8" OD) | $55.00
|
| CPLR25T | R25 Coupling - Thin Wall (1-3⁄8" OD) | $50.00
|
| CPLR28 | R28 Coupling | QUOTE |
| CAH55-R63 | H 55 - R 63 | $276.00
|
| CAT45-R63 | T 45 - R 63 | $276.00
|
MAI Bits
Also threading Williams, Titan, and more. Minimum Order Quantity may Apply. 10% discount on orders of 100 or more for Carbide Cross and/or Button Bits.

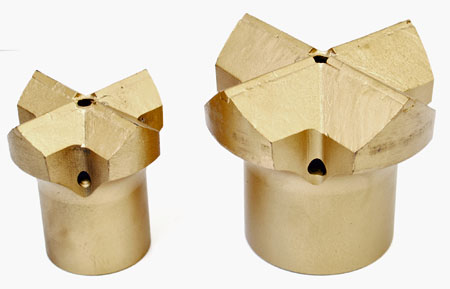

Carbide Cross Bits
| Size | Wt. | R32 | R38 | R51 | T76 | TTN40 | TTN52 |
|---|---|---|---|---|---|---|---|
| 2" | 1.5 | IBOBC-R32-51 | |||||
| QUOTE |
|||||||
| 21⁄2" | 3.5 | IBOBC-R32-64 | IBOBC-R38-64 | IBOBC-TTN40-64 | |||
| $56.81
|
$56.81
|
$56.81
|
|||||
| 3" | 5.5 | IBOBC-R32-76 | IBOBC-R38-76 | IBOBC-R51-76 | IBOBC-TTN40-76 | IBOBC-TTN52-76 | |
| $64.24
|
$64.24
|
$64.24
|
$64.24
|
$64.24
|
|||
| 31⁄2" | 6.0 | IBOBC-R32-89 | IBOBC-R38-89 | IBOBC-R51-89 | IBOBC-TTN40-89 | IBOBC-TTN52-89 | |
| $69.33
|
$69.33
|
$69.33
|
$69.33
|
$69.33
|
|||
| 4" | 7.5 | IBOBC-R32-102 | IBOBC-R38-102 | IBOBC-R51-102 | IBOBC-TTN40-102 | IBOBC-TTN52-102 | |
| $82.34
|
$82.34
|
$82.34
|
$82.34
|
$82.34
|
|||
| 41⁄2" | 9.0 | IBOBC-R32-115 | IBOBC-R38-115 | IBOBC-R51-115 | IBOBC-TTN40-115 | IBOBC-TTN52-115 | |
| $93.78
|
$93.78
|
$93.78
|
$93.78
|
$93.78
|
|||
| 5" | 17.5 | IBOBC-R38-127 | IBOBC-R51-127 | IBOBC-T76-127 | IBOBC-TTN40-127 | IBOBC-TTN52-127 | |
| $154.12
|
$154.12
|
$154.12
|
$154.12
|
$154.12
|
|||
| 6" | 20.0 | IBOBC-R38-152 | IBOBC-R51-152 | IBOBC-T76-152 | IBOBC-TTN40-152 | IBOBC-TTN52-152 | |
| $176.47
|
$176.47
|
$176.47
|
$176.47
|
$176.47
|
|||
| 7" | 21.0 | IBOBC-R38-178 | IBOBC-R51-178 | IBOBC-T76-178 | IBOBC-TTN40-178 | IBOBC-TTN52-178 | |
| $227.90
|
$227.90
|
$227.90
|
$227.90
|
$227.90
|

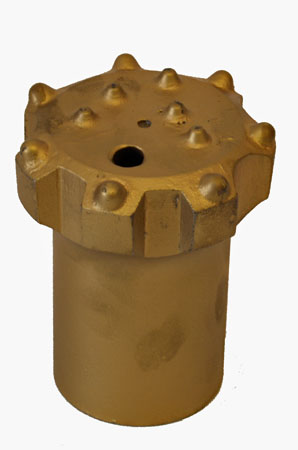

Carbide Button Bits
Also threading Williams, Titan, and more. Minimum Order Quantity may Apply.
| Size | Wt. | R32 | R38 | R51 | T76 | TTN40 | TTN52 |
|---|---|---|---|---|---|---|---|
| 21⁄2" | 3.5 | IBOBB-R32-64 | IBOBB-R38-64 | IBOBB-TTN40-64 | |||
| $71.92
|
$71.92
|
$71.92
|
|||||
| 3" | 5.5 | IBOBB-R32-76 | IBOBB-R38-76 | IBOBB-R51-76 | IBOBB-TTN40-76 | IBOBB-TTN52-76 | |
| $74.76
|
$74.76
|
$74.76
|
$74.76
|
$74.76
|
|||
| 31⁄2" | 6.0 | IBOBB-R32-89 | IBOBB-R38-89 | IBOBB-R51-89 | IBOBB-TTN40-89 | IBOBB-TTN52-89 | |
| $80.61
|
$80.61
|
$80.61
|
$80.61
|
$80.61
|
|||
| 4" | 7.5 | IBOBB-R32-102 | IBOBB-R38-102 | IBOBB-R51-102 | IBOBB-TTN40-102 | IBOBB-TTN52-102 | |
| $98.67
|
$98.67
|
$98.67
|
$98.67
|
$98.67
|
|||
| 41⁄2" | 9.5 | IBOBB-R32-115 | IBOBB-R38-115 | IBOBB-R51-115 | IBOBB-TTN40-115 | IBOBB-TTN52-115 | |
| $110.37
|
$110.37
|
$110.37
|
$110.37
|
$110.37
|
|||
| 5" | 19.0 | IBOBB-R38-127 | IBOBB-R51-127 | IBOBB-T76-127 | IBOBB-TTN40-127 | IBOBB-TTN52-127 | |
| $166.35
|
$166.35
|
$166.35
|
$166.35
|
$166.35
|
|||
| 6" | 23.0 | IBOBB-R38-152 | IBOBB-R51-152 | IBOBB-T76-152 | IBOBB-TTN40-152 | IBOBB-TTN52-152 | |
| $204.61
|
$204.61
|
$204.61
|
$204.61
|
$204.61
|
Hardened Steel Soil Bits
Also threading Williams, Titan, and more. Minimum Order Quantity may Apply.
| Wt. | R32 | Price | R38 | Price | |||
|---|---|---|---|---|---|---|---|
| 2" | 1 | IBOBS-R32-51 | $11.80
|
IBOBS-R38-51 | $11.80
|
||
| 21⁄2" | 1.3 | IBOBS-R32-64 | $12.60
|
IBOBS-R38-64 | $12.60
|
||
| 3" | 2 | IBOBS-R32-76 | $13.90
|
IBOBS-R38-76 | $13.90
|
||
| 31⁄2" | 2.6 | IBOBS-R32-89 | $18.50
|
IBOBS-R38-89 | $18.50
|
||
| 4" | 2.7 | IBOBS-R32-102 | $37.80
|
IBOBS-R38-102 | $37.80
|
||
| 5" | *non-stock - made to order | ||||||
3-Wing Drag Bit - Clay, Sand & Soil
Also threading Williams, Titan, and more. Minimum Order Quantity may Apply.
| 5" | IBOBD-R32-127 | $93.75
|
IBOBD-R38-127 | $93.75
|
IBOBD-R51-127 | $93.75
|
IBOBD-T76-127 | $93.75
|
| 6" | IBOBD-R38-152 | $100.00
|
IBOBD-R51-152 | $100.00
|
IBOBD-T76-152 | $100.00
|
||
| 7" | IBOBD-R38-178 | $118.75
|
IBOBD-R51-178 | $118.75
|
IBOBD-T76-178 | $118.75
|
||
| 8" | IBOBD-R38-203 | $131.25
|
IBOBD-R51-203 | $131.25
|
IBOBD-T76-203 | $131.25
|
MAI Accessories
| R32 | R38 | ||||||
|---|---|---|---|---|---|---|---|
| Description | Part Number | Price | Description | Part Number | Price | ||
ANCHOR BARS (10') |
IBOGR-R32-10 | QUOTE |
IBOGR-R38-10 | QUOTE |
|||
EXTENSION COUPLINGS |
"L&N" R32/Ø42/L145 | IBOCPL-R32 | QUOTE |
"NG" R38/Ø51/L220 | IBOCPL-R38 | QUOTE |
|
NUTS |
R32/SW46/L45 | IBONUT-R32 | QUOTE |
R38/SW50/L50 | IBONUT-R38 | QUOTE |
|
DEFORMED PLATES |
200x200x10mm Ø35mm 32mm Bar | IBO9899100798 | QUOTE |
200x200x12mm Ø41mm 38mm Bar | IBO9899100800 | QUOTE |
|
| R51L | R51N | ||||||
|---|---|---|---|---|---|---|---|
| Description | Part Number | Price | Description | Part Number | Price | ||
| ANCHOR BARS (10') |
IBOGR-R51-10 | QUOTE |
IBOGR-R51N-10 | QUOTE |
|||
| EXTENSION COUPLINGS |
"NG" R51N/Ø63/L220 | IBOCPL-R51 | QUOTE |
"NG" R51N/Ø63/L220 | IBOCPL-R51 | QUOTE |
|
| NUTS |
R51/SW75/L70 | IBONUT-R51 | QUOTE |
R51/SW75/L70 | IBONUT-R51 | QUOTE |
|
| DEFORMED PLATES |
200x200x30mm Ø60mm 51mm Bar | IBO9899150096 | QUOTE |
250x250x40mm Ø60mm 51mm Bar | IBO9899150097 | QUOTE |
|
Specifications
| Anchor | Outside Diameter | Internal Diameter (Avg) | Effective Cross Sectional Area (Avg) | Ultimate Load Capacity | Yield Load Capacity | Weight per Foot |  |
|---|---|---|---|---|---|---|---|
| R 32N | 1 1⁄4" | 0.73" | 0.61 in² | 63 kips | 51.5 kips | 2.3 lbs | R 32N |
| R 32S | 1 1⁄4" | 0.59" | 0.76 in² | 81 kips | 63 kips | 2.85 lbs | R 32S |
| R 38 | 1 1⁄2" | 0.75" | 1.11 in² | 112 kips | 90 kips | 4.0 lbs | R38 |
| R 51L | 2" | 1.42" | 1.20 in² | 123.6 kips | 101.2 kips | 4.7 lbs | R 51L |
| R51N | 2" | 1.30" | 1.46 in² | 180 kips | 141.6 kips | 5.6 lbs | R 51N |
| T 76N | 3" | 2" | 2.84 in² | 360 kips | 270 kips | 10.0 lbs | T 76N |
| T 76S | 3" | 1.77" | 3.72 in² | 428 kips | 338 kips | 13.2 lbs | T 76S |
