VANAIR Air Compressors
Vanair's new line of entry level reciprocating compressor packages were developed to meet the demands of customers that need the convenience of mobile air at an economical cost. Designed to provide rugged, powerful and dependable performance, these compressors are a perfect fit for the mechanic, service, agriculture, and contractor markets. The Vanair Pro Series offers Honda or Kohler engines and air power from 18-35cfm with up to 170psi. Systems are all electric start and available in skid, 10 gallon twin, and 30 gallon tank configurations.
Reciprocating, Gas powered
- 2 yr Warranty
- Reciprocating type Air Compressor
- Electric or Pull Start
- Does NOT include a battery - battery kits are available
Compact in design, the PRO 35 offers the convenience of mobile air at an economical cost. This rugged unit provides powerful and dependable performance making it ideal for individuals in the mechanic, service, agriculture and contractor markets.
| Model | Part No. | Price |
|---|---|---|
| PRO 35 Gas Air Compressor - Honda Engine, Skid Mount **for use with Remote air tank | 051956 | $3,290.00
|
| PRO 35 Gas Air Compressor - Kohler Engine, Skid Mount **for use with Remote air tank | 051957 | $3,495.00
|
| PRO 35 Gas Air Compressor - Honda Engine, 30 Gal. Air Tank | 051935 | $3,975.00
|
| PRO 35 Gas Air Compressor - Kohler Engine, 30 Gal. Air Tank | 051936 | $3,995.00
|
Compressor Dimensions on remote air storage models (in): 42L x 18W x 23H
Compressor Dimensions on 30 gallon air storage models (in): 44L x 19W x 38H
Dry Weight (lbs): 387 - 475 Lbs. depending on platform
Pictured: tank mount
Special Features
- Belt drive system for anti-vibration and long service intervals
- Self contained but can be integrated with the chassis for maximum versitility
COMPRESSOR
- Reciprocating Type Air Compressor
- Powder-coated sheet metal, 3⁄16 plate steel main frame, full service access
- 3 Cylinder, Single Stage, Splash Lubricated
Tools and Applications
- Air Impact Wrench up to 3⁄4"
- Chipping Hammers
- Cut Off Tool
- Drill
- Grinder
- Tire Inflation
INSTRUMENTATION
- Air Pressure guage
SAFETY EQUIPMENT
- Air pressire safety relief valve
- Low engine oil shutdown
Reccommended Truck Applications
- Mech Crane Truck
- Tire Truck
- Landscape Maintenance
- Service
- Specialty Application
| Accessories | ||
|---|---|---|
| Description | Part | Price |
| Battery Kit (incl. Battery, Battery Box, & 5' cables) | 032863 | $218.00
|
| Cold Weather Kit (Must be installed at time of machine build) | 032793 | $353.00
|
| Vanguard Reciprocating Compressor Oil - 1 gal | 271856-1GAL | $135.00
|
| Vanguard Reciprocating Compressor Oil - 1 qt | 271856-1QT | $34.00
|
| PRO 18 Kohler Engine Service Kit | KIT1158 | $64.00
|
| PRO 18 Honda Engine Service Kit | KIT1167 | QUOTE |
| PRO 18 Compressor Service Kit | KIT1169 | $92.00
|
| Battery Kit - PRO Series | 032863 | $218.00
|
| Filter Regulator Lubricator - 1/2" | 264493 | $388.00
|
| Vibration Isolation Kit - 1/2" | KIT1202 | CALL |
| Vibration Isolation Kit - 3/8" | KIT1203 | QUOTE |
| Specifications | |
|---|---|
| Type | Vanair Pro Series. New and in current production. |
| Compressor | Reciprocating type. 2 cylinders, single stage, splash lubricated, with built-in head unloaders, steel braided discharge line, automatic throttle control with unloader valve. |
| Compressor Capacity | 35 CFM - Compressor to be capable of 175 PSIG operation |
| Engine | Single cylinder, electric or pull start, gasoline engine, Honda 11HP or Kohler 14HP |
| Fuel Capacity | 1.75gal |
| Air Storage Tank | Options for 30 gallon, or remote air tank. ASME/CRN certification on appropriately sized tanks. Unit to include pressure gauge, ball valve, pressure relief valve, and condensation drain |
| Weight | Unit dry weight 387 - 475 Lbs. depending on platform |
| Diminsions (in) | 42L x 18W x 23H on remote mount air storage models 44L x 19W x 38H on 30 gallon air storage models |
| Drive System | Classic V belt-drive system |
| Metal and Tanks | Fully powder coated belt guard, 3/16 plate steel main frame, full service access |
| Warranty | The air compressor shall be warranted for 2 years when following the prescribed maintenance schedule. This warranty does not cover damage caused by accident, misuse, or negligence. If the unit is disassembled the warranty is void. |
| Service Centers | Manufacturer MUST have factory authorized service centers located in each state of the United States of America and Canadian provinces. |
| Options | Remote air tanks, vibration isolators, mainenance kits, batteries. |
PRO Series 35 Specs

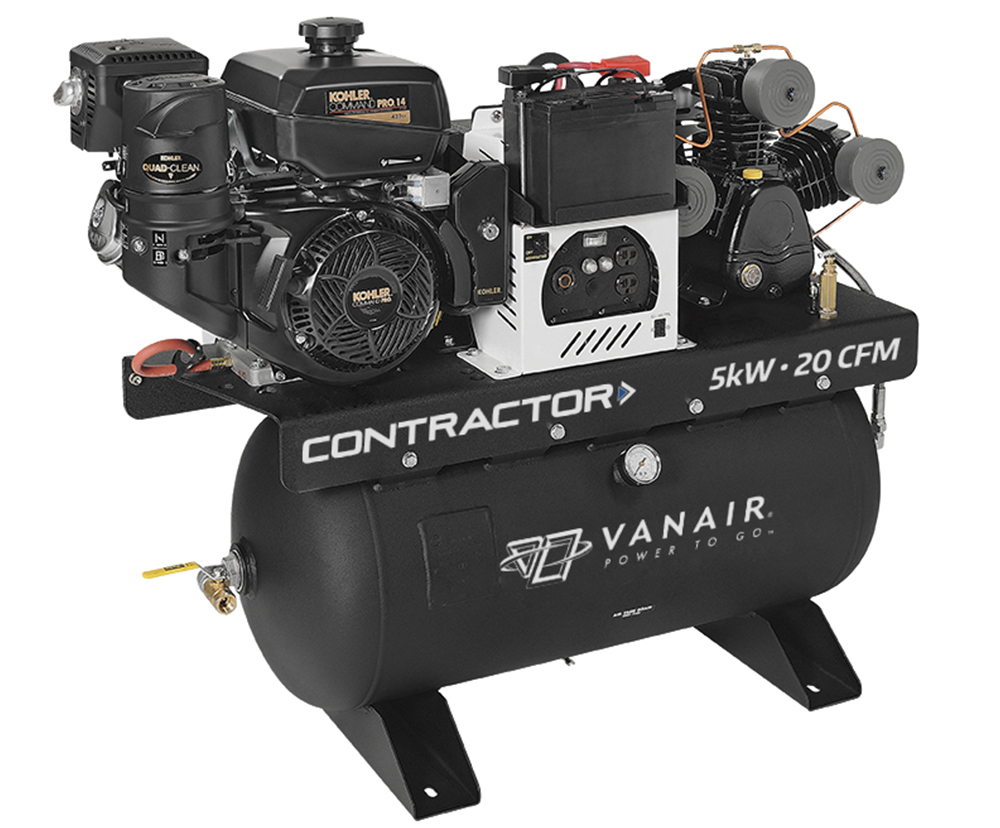

Rugged, dependable, and easily transportable, the Vanair® Contractor provides you with 20 CFM of air power and 5kW of peak AC generator power for all your tough jobs site needs. Available with a control panel on the unit with two outlets or a remote mountable control panel for effortless and convenient accessibility.
Performance
- Auto throttle control on air compressor
- Reliable and easy starting Kohler® engines
- Drive system heavy duty belt drive system for anti-vibration and long service intervals
- Totally self contained, but can be integrated with the chassis for maximum versatility
- Integrated lift hook and battery tray
- Designed for easy maintenance and fuel efficiency
- Powder coated sheet metal
- Galvannealed Steel
Air Compressor
- Reciprocating compressor
- 20 CFM
- 150 PSI maximum
- Cast iron air pump with 3 cylinder head design for better cooling
Generator
- 4.2 kW continuous @ 60 Hz
- Independent Ac power for safe multi-functioning
- Brushless
- Smooth wave power iwith minimal distortion
Engine
- Kohler® 14 HP - 1.9 Gal.
- Kohler® 19 HP - 11 Gal.
Available in:
- 10 Gallon
- 30 Gallon
- Remote Tank
Remote Control Panel - Kohler® 19 HP only
- Provides ultimate user convenience and safety
- All functions accessible at remote panel. No need to jump in and out of vehicle to control function
| Model | Part No. | Price |
|---|---|---|
| Contractor - Skid Mount, 14 HP Kohler | 050713 | $5,095.00
|
| Contractor - 10 Gal Air, 14 HP Kohler | 050711 | $5,365.00
|
| Contractor - 30 Gal Air, 14 HP Kohler | 050712 | $5,500.00
|
| Contractor - Skid Mount, 19 HP Kohler | 050688 | $7,015.00
|
| Contractor - 30 Gal Air, 19 HP Kohler | 050687 | $8,755.00
|
Pictured: tank mount
| Accessories | ||||||
|---|---|---|---|---|---|---|
| Description | Part | Price | Description | Part | Price | |
| Cold Weather Kit (12V, Compressor Oil and Engine Oil Pan Heatr | 032793 | $353.00
|
Air Reservoir Tank - 14 Gal (underdeck mounted tank with mounting brackets) | 032708 | $1,196.00
|
|
| Contractor Compressor Service Kit (3 air filters and 1 qt. Vanguard reciprocating oil) | KIT1156 | $76.00
|
Air Reservoir Tank - 28 Gallon - Twin 14 Gallon Underdeck Mounted Tank with Mounting Brackets | 032707 | $2,278.00
|
|
| 14HP Kohler Engine Service Kit (1 qt. Oil, Air Filter, Pre-Filter, Fuel Filter and Spark Plug) | KIT1158 | $64.00
|
Air Reservoir Tank - 30 Gallon | OA49645 | $930.00
|
|
| Vanguard Reciprocating Compressor Oil - 1 Gal | 271856-1GAL | $135.00
|
||||
| Battery Cable Quick Disonnect (for use with MA269945) | MA269944 | $131.00
|
Filter-Regulator-Lubricator | 264493 | $388.00
|
|
| Battery Cable Ext. Two Gauge Positive and Negative (for connection to Chassis Battery - 8') | MA269945-08 | $263.00
|
Remote Condensation Drain | OA92937 | $54.00
|
|
| Battery Cable Ext. Two Gauge Positive and Negative (for connection to Chassis Battery - 12') | MA269945-12 | $300.00
|
Air Hose - 1/2" x 50' NPT, 300 WP | 264514 | $247.00
|
|
| Battery Cable Ext. Two Gauge Positive and Negative (for connection to Chassis Battery - 16') | MA269945-16 | $354.00
|
Air Hose - 3/8" x 50', 1/4" NPT, Male Ends, 300 PSIG | 276478 | $214.00
|
|
| Battery Cable Ext. Two Gauge Positive and Negative (for connection to Chassis Battery - 20') | MA269945-20 | $407.00
|
Hose Stop - 1/2" | 276175 | $26.00
|
|
| Battery Cable Ext. Two Gauge Positive and Negative (for connection to Chassis Battery - 24') | MA269945-24 | $450.00
|
Hose Stop - 3/8" | 276462 | $26.00
|
|

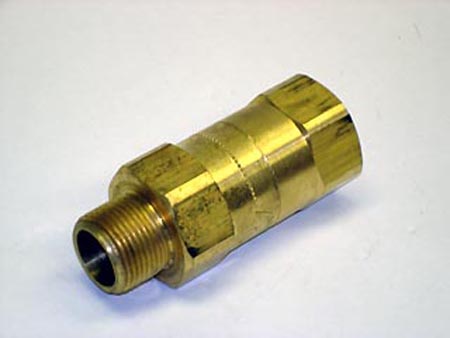

| OSHA Valve up to 47 cfm 38/8" (excess flow safety valve) | MA272577 | $58.00
|
Hose Reel for 1/2" x 50' Hose | 269602 | $885.00
|
|
| Remote Ignition and Choke Kit for use on 14HP Kohler | 033021-15 | $361.00
|
Remote Iginition - Kohler 8' | 033021 | $227.00
|
|
SPECIFICATIONS
| Engine | Kohler 14HP | |
| Compressor Type | Reciprocating | |
| Generator Wattage | 4.2kW Continuous 120V/240V | |
| Max Pressure | psi | 150 |
| CFM Rating | cfm | 20 |
| Air Storage Capacity | Skid | |
| Drive System | Dual V-Belt | |
| Fuel Capacity | gal | 1.9 |
| Dimensions | in | 51L x 18W x 22H |
| Dry Weight | lbs | 304-550 |
