VANAIR Air Compressors
Powerful and PORTABLE - DIESEL powered
- Lifetime Warranty
- Rotary Screw Air Compressor with Power Take-off Technology
- Sullair® Air Ends - Exclusive to VanAir products
- The innovative in-tank air/oil separator.

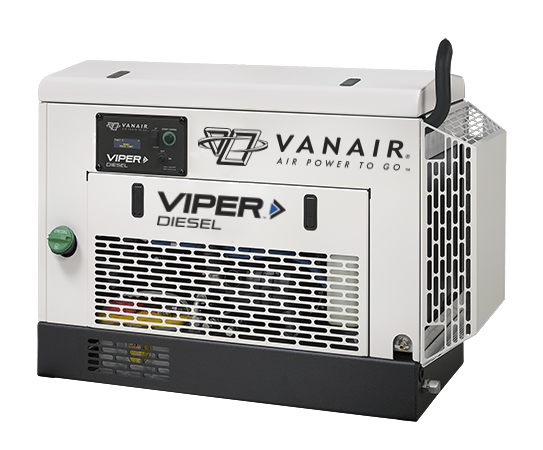

Viper Portable Diesels Powered Air Compressor
For a high-performance air compressor that delivers proven performance on or off your truck, you need a Vanair Viper Series Engine-Driven Air Compressor. This compact and rugged, diesel-powered unit can be easily loaded and unloaded from your pickup for maximum versatility. The Viper is ideal for monument engraving, irrigation service, rental markets, post pounding, directional boring, and general construction.
| Model | Part No. | Price |
|---|---|---|
| Viper D60 | 050848 | $18,807.00
|
| Viper D60 - No Fuel Tank or Fuel Pump | 050847 | $18,023.00
|
| Viper D60 with Cold Weather Kit | 051367 | $19,089.00
|
| Viper D70 - No Fuel Tank or Fuel Pump | 051355 | $18,071.00
|
| Viper D70 - Elevation over 3500' | 051294 | $18,855.00
|
| Viper D80 | 050850 | $18,727.00
|
| Viper D80 - No Fuel Tank or Fuel Pump | 050849 | $17,975.00
|
| Viper D80 with Cold Weather Kit | 051366 | $19,008.00
|
Special Features
COMPRESSOR
- Vanguard Lifetime Warranty on air end
- Direct drive - no belts
- Oil-injected rotary screw air end encapsulated
- Powder-coated, galvanneal sheet metal enclosure
- Spin-on air-oil separating element
- Lifting Bail
ENGINE
- Make: Kubota
- Fuel Type: Diesel
- Engine Type: 3 cylinder
- Horsepower: 24.8HP
- Fuel Tank Capacity: 9 US Gal.
INSTRUMENTATION
- Conveniently located electronic, easy-to-start instrumentation
panel features an hour meter, pressure and temperature readout,
fuel gauge and engine rpm. - Control panel can be remote mounted with extension harness
SAFETY EQUIPMENT
- High-temperature shutdown, compressor and engine
- Low engine oil pressure shutdown
- Air pressure-relief safety valve
- Minimum pressure valve
- Automatic blowdown on shutdown
- Oil fill plug safety relief
| Specifications | ||||
|---|---|---|---|---|
| D60 | D70 | D80 | ||
| Capacity | cfm | 60 | 70 | 80 |
| Air Pressure | psi | 150 | 125 | 100 |
| Air Pressure - 3500+' | psi | 100 | ||
| Full Load Engine Speed | rpm | 3600 | 3600 | 3600 |
| Engine | Hp | 24.8 | 24.8 | 24.8 |
| Fuel Capacity | Gal | 9 | 9 | 9 |
Compressor Dimensions with Fittings - 48"L x 21"W x 33"H
Dry Weight - 735 lbs
| Standard Accessories | ||||||
|---|---|---|---|---|---|---|
| Remote Mount Control Panel Box & Connection Harness | Cold Weather Kit - Must be ordred and installed at time of factory build | |||||
| 6 feet | 032896-6 | $327.00
|
Cold Weather Kit 12V | 032895 | $524.00
|
|
| 10 feet | 032896-10 | $360.00
|
Cold Weather 120V Block Heater | MA032938 | $270.00
|
|
| 14 feet | 032896-14 | $418.00
|
Standard Service Kits | |||
| 18 feet | 032896-18 | $434.00
|
50 Hour Compressor Service Kit | KIT1212 | $257.00
|
|
| 22 feet | 032896-22 | $555.00
|
500 Hour Compressor Service Kit | KIT1221 | $344.00
|
|
| 26 feet | 032896-26 | $662.00
|
Engine Service Kit | KIT1154-01 | $191.00
|
|
| Vanguard Premium Oil - 1 Gal - 4 Pack | 264626-4PACK | $286.00
|
||||
| Vanguard Preium Green Oil - 1 Gal - 4 Pack | 264626-4GREEN | $434.00
|
||||
| Tanner De-Icer | 032515 | $956.00
|
||||
| Common Options and Accessories | ||||||
| Air Reservoir Tank - 14 Gal - Underdeck | 032708 | $1,243.00
|
Filter Lubricator Regulator - 1/2" | 264493 | $481.00
|
|
| Air Reservoir Tank - 28 Gal - Twin 14 Gal Underdeck | 032707 | $2,378.00
|
Filter Lubricator Regulator - 3/4" | 277979 | $717.00
|
|
| Air Reservoir Tank - 30 Gal | OA49645 | $940.00
|
Hose Reel - for 1/2" Hose x 50' | 269602 | $903.00
|
|
| Air Hose - 1/2" x 50' 300 WP | 264514 | $300.00
|
Hose Reek - for 3/4" Hose x 50' | 263914 | $1,281.00
|
|
| Hose Stop - 1/2 | 276175 | $31.00
|
Moisture Separator - Service Line | 265243 | $433.00
|
|
| Air Aftercooler 85 CFM with Moisture Trap and Auto Drain | 033080 | $1,945.00
|
OSHA Valve up to 70CFM 1/2" | MA272578 | $71.00
|
|
| Aftercooler Bracket | 033085 | $188.00
|
OSHA Valve 72-88 CFM 3/4" | 263645 | $130.00
|
|
| Vibration Isolator Kit - 1/2" | KIT1202-001 | $119.00
|
Towable Trailer for Viper Diesel | 033160 | QUOTE |
|
