Product 2825/3015

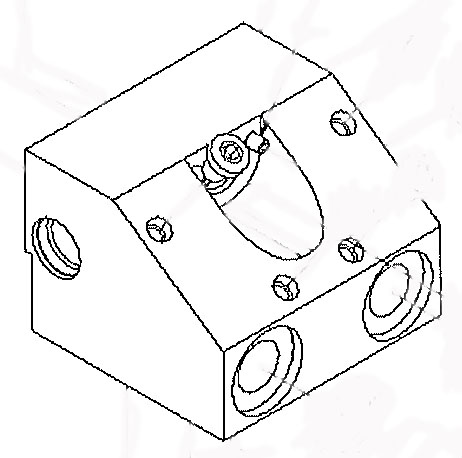

larger image
Images are for illustrative purposes only and may not match actual part

Valve Block - Complete

$1,875.62

Add to Cart:

Complete Valve Block

Includes

Adaptor 12-06	6	3377222311
Seal Ring - Bonded 3/4" UNF	8	0661100090
Adaptor 02-02	1	0603420051
Seal Ring - Bonded 1/8" BSP	4	0661100042
Valve Block	1	3377001193
Oil Filter - 25 Micron	1	3377021787
Thermostat Complete	1	3377005082
Washer - 5/8"	1	3377100016
Filter Adaptor	1	3377005263
Thermostat End Cap	1	3377004084
Locking Ring	1	Not sold separately
Screw	3	0196132600
Wiper Seal	1	3377000521
Roll Pin	2	Not sold separately
Handle	1	3377000459
O Ring	1	9125621500
Roll Pin	1	0108119600
Spool	1	3377021120
Pressure Relief Valve	1	3377005172
Seal Ring - Bonded 3/8" BSP	6	0661100040
Quick Release Coupling - 3/8" BSP Female	3	3371805137
Protective Cap - 1/2" Female	3	3371805733
Quick Release Coupling - 3/8" BSP Male	3	3371805138
Protective Cap - 3/8" Male	3	3371805728
Fitting 04	1	3377000482
Washer	1	3377000564
Screw	1	0211124300
Circlip	1	3377000484
Ball Lock	1	3371817737
Nut	1	3371817715
Seal Ring	1	3371817716
Alternating Valve	1	3377000485
Fitting 02 with Seal	3	3371817740
Fitting - 3/4" Hose Barb - 1/2" BSP Male	2	3377000461
O Ring	1	3371820706
Nut	3	0 291111000
By-pass Valve	1	3377004747
Clamp Plate	1	3377004050
Seal	1	3377004051
Nipple - 3/4" UNF Male - 3/8" BSP Male	2	3377000565
