Darda Splitting Cylinder - Size 12
| DARDA CYLINDER SPECIFICATIONS |
| Model: | #12 |
| Weight (lb): | 68 |
| Length (in): | 50-3/4 |
| Max Expansion (in): | .75-1.87 |
| Size Hole Required (in): | 1-3/4 |
| Min Hole Depth (in): | 26 |
| Max Splitting Force (tons): | 385 |
| | |
| DOCUMENTATION |
| Cylinder Parts Manual | |
| Safety and Operating Instructions | |
| | |
| ACCESSORIES |
| Plug - Size 8 & 12 | D010-12 |
| Feather - Size 8 & 12 | D011-812 |
| Englarging Feather - Size 8 & 12 | D011-1823 |
| Block Manifold - used to run 2 cylinders | D016-13 |
| Block Manifold - used to run 3 cylinders | D016-14 |
| Block Manifold - used to run 4 cylinders | D016-15 |
| Plug & Feather Lubricant - 1/2 pt can | D00-HPT |
| Plug & Feather Lubricant - 1 pt Can | D00-PT |
| Plug & Feather Lubricant - Case of 12 - 1/2 pt Cans | D014-3 |
| Plug & Feather Lubricant - Case of 12 -1 pt Cans | D014-4 |
| Betonamit Non-Explosive Cracking Agent | BETON-TYPR |

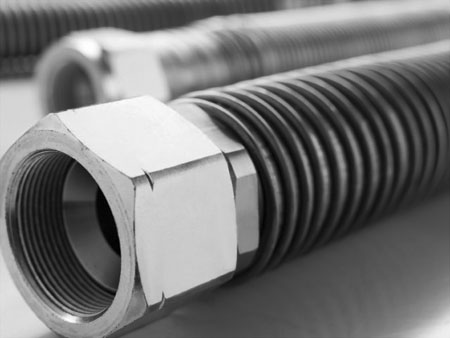

| High Pressure Hose - 50' | D016-50 |
| Low Pressure Hose - 50' | D016-51 |

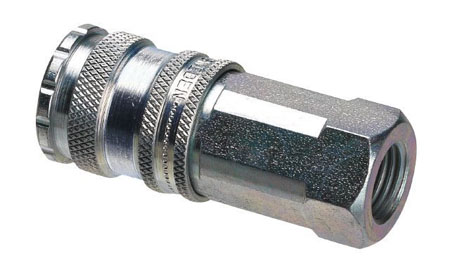

| Quick Connect Coupler | D016-26 |
| Coupler Cover | D016-27 |
| 1/4 Female x 3/8 Male Reducer | D437 |
| Low Pressure Hose Connector | D438 |
