PAC P13 Power Pack

$5,760.00

Weight: 336 lbs

Add to Cart:

PAC P13 Hydraulic Power Pack

Why tow a large compressor to the site if you don't need to?  The CP hydraulic power pack give you excellent convenience to power the tools you need and get to work right away.  They're also a cost-effective choice.  In fact, the power output provided by a 9HP CP power pack when running a 55-75lb breaker is equial to operating a 20-25HP compressor running a 70lb breaker.  This helps reduce fuel and maintenance costs - another benefit to hydraulic power.

CP hydraulic power packs are available in gasoline, diesel or electrically driven versions and are designed to provide portable power for a wide range of applications in the 5-11gpm range at 2,000-2,495psi range.

FEATURES AND BENEFITS

  • FUEL SAVINGS Many models are equipped with Power On Demand.  This system automatically idles the engine when the tool is not being used and speeds it up when the tool is activated, saving fuel and keeping noise to a minimum
  • COMPACT AND PORTABLE  Two people can lift the hydraulic power pack into a van for site-to-site transportation.  On-site, it can easily be wheeled around by one person using the convenient foldable handle.
  • FAST WARM-UP  The thermostatically controlled oil cooler allows fast warm-up and helps prevent hydraulic oil from overheating.  Correct working temperature is achieved in minutes - even during winter.
  • EASY OPERATION  The variable-flow on/off valve enables simple tool change and slow startup.  A gauge shows when it's time to change the filter.

SHIPPING

  • $150 Flat Rate LTL/Truck Shipping to Commercial destinations*
  • $250 flat rate for Residential destinations in Continental US. Rates will be quoted for Alaska, Hawaii and all international destinations.

SPECIFICATIONS

Weight including oil lb 201
Length in 29.3
Width in 23.6
Height in 27.8
Oil Flow gpm 5-8
Pressure Relief Valve Setting psi 2175
Max Nominal Working Pressure psi 1810
Fuel Capacity gal 1.4
EHTMA Class   C/D
Sound Power Level Guaranteed (2000/14/EC) dB(A) 101
Sound Pressure Level (ISO 11203) dB(A) 89
Power on Demand (POD)   Yes
Oil Control - Engine Oil   Yes
Electric Start   No
Engine Model hp

Honda Gasoline 13

 DOCUMENTATION

Spare Parts / Parts List Breakdown
Safety & Operating Instructions

ACCESSORIES

    Service Kit 3377021042
OFD 8 Oil Flow Divider 1801164232 POD Seal Kit 3377000121

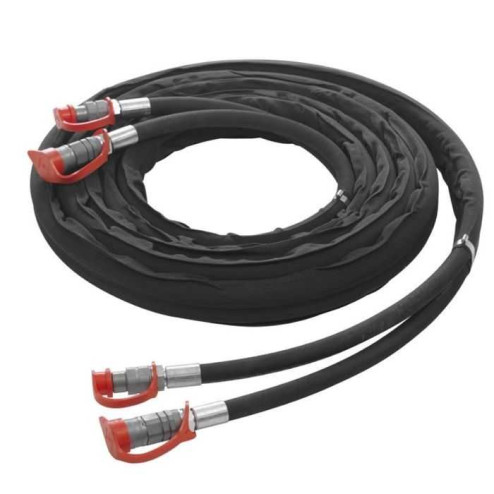

Twin Extension Hose - 23' 3371801087 Valve Block Seal Kit 3377800595
Twin Extension Hose - 39' 3371801089 Test Equipment 3371801154
Hydraulic Oil 3371807777



NKA 1807800006


  • Model: CP-1807800006
