Home » Atlas Copco » Parts » E Handle w/out Cover

Product 631/3015

larger image
Images are for illustrative purposes only and may not match actual part

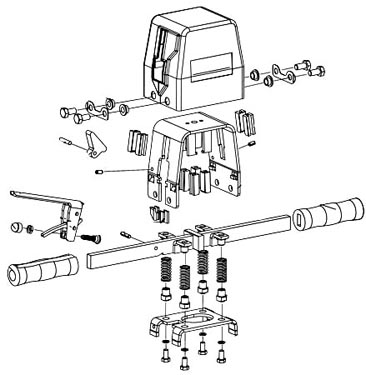

E Handle w/out Cover

$1,250.42

Weight: 9.2 lbs

Add to Cart:

E-Handle without Cover

DISCONTINUED MODELS

Includes

Frame	1	3371820305
Handle Rod	1	3371820304
Bottom Plate	1	3371820306
Spring Guide	4	3371820307
Roll Pin	2	3371820763
Spring	4	3371820308
Nylon Guide	8	3371820309
Washer	4	0301233500
Screw	4	0147132203
Right Latch Pin	1	3371820147
Left Latch Pin	1	3371820148
Trigger Pawl	1	3371820131
Pin	1	0101231155
Trigger Lever	1	3371820057
Roll Pin	1	0108132600
Thrust Pad with Screw	1	3371820066
Nut	1	0266211000
Nut Cap	1	3371820735
Rubber Handle	1	3371820135
Rubber Handle	1	3371820134
** Frame - valid for breakers as from the following serial numbers LH 19E - serial no from 185771 LH 23E - serial no from 218574 LH 28E - serial no from 254280 LH 40E - serial no from 350916	1	3371820315
** Handle Rod	1	3371820314
** Nylon Guide	4	3371820309
** Nylon Guide	8	3371820313
