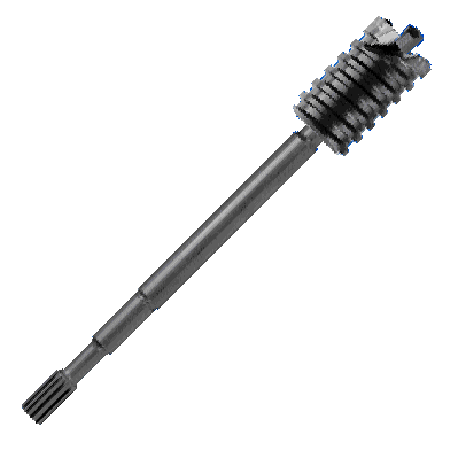

Solid-Body 'Hard-Head' Bits
Relton's 'Hard-Head' bits are designed to bore large holes through concrete without the need to break out the core every few inches.
Shank/Pilot Hard-Head
Slide the taper end of shank into the 'Hard-Head' bit. A slight twisting motion will help keep the bit from falling off before beginning to cut. The pilot is integrated on the shank, so drilling can be accomplished without interruption! (Once used, shank and head become one piece.)
Head-Only
(1 1/8" – 1 5/8")
| Diameter | Part No. | Wt. (lbs) | Price |
|---|---|---|---|
| 1-1⁄8" | SB-18 | 0.7 | $189.00
|
| 1-1⁄4" | SB-20 | 0.8 | $196.00
|
| 1-1⁄2" | SB-24 | 1.3 | $203.00
|
| 1-5⁄8" | SB-26 | 1.4 | $217.00
|
Shank / Pilot
(For 1 1/8" – 1 5/8" Heads)
| Drilling Depth | Style | Part No. | Wt. (lbs) | Price |
|---|---|---|---|---|
| 10" | SPLINE | S02-10S | 1.8 | $66.00
|
| 10" | SDS-MAX | SMX-10S | 1.7 | $81.00
|
| 10" | SDS+ | S07-10S | 0.9 | $66.00
|
| 18" | SPLINE | S02-18S | 3.1 | $81.00
|
| 18" | SDS-MAX | SMX-18S | 2.7 | $95.00
|
| 18" | SDS+ | S07-18S | 1.5 | $81.00
|
| 24" | SPLINE | S02-24S | 3.9 | $95.00
|
| 24" | SDS-MAX | SMX-24S | 3.6 | $109.00
|
| 24" | SDS+ | S07-24S | 1.9 | $95.00
|
Head-Only
(1 3/4" — 3")
| Diameter | Part No. | Wt. (lbs) | Price |
|---|---|---|---|
| 1-3⁄4" | SB-28 | 1.4 | $224.00
|
| 2" | SB-32 | 1.9 | $240.00
|
| 2-1⁄2" | SB-40 | 3.4 | $277.00
|
| 3" | SB-48 | 5.4 | $313.00
|
Shank / Pilot
(For 1 3/4" — 3" Heads)
| Drilling Depth | Style | Part No. | Wt. (lbs) | Price |
|---|---|---|---|---|
| 10" | SPLINE | S02-10 | 2.4 | $74.00
|
| 10" | SDS-MAX | SMX-10 | 2.4 | $86.00
|
| 18" | SPLINE | S02-18 | 3.8 | $86.00
|
| 18" | SDS-MAX | SMX-18 | 3.8 | $102.00
|
| 24" | SPLINE | S02-24 | 4.8 | $102.00
|
| 24" | SDS-MAX | SMX-24 | 4.8 | $115.00
|
