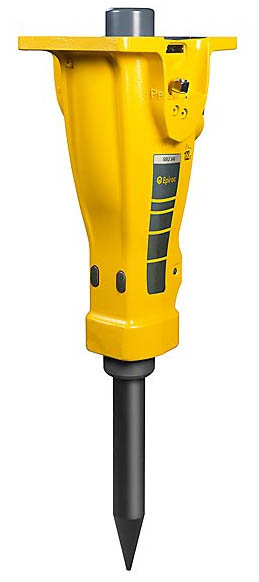

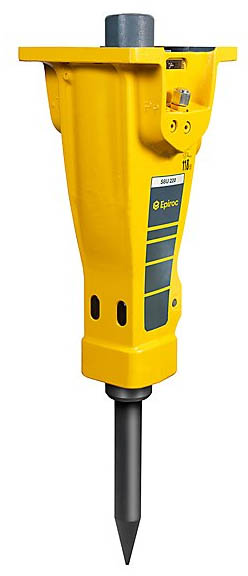

Premium Hydraulic Breakers
| Our range of premium hydraulic breakers give you everything you want from a hydraulic breaker: efficient and highly adapable products that combine superior efficiency and performance with high durability and low impact on the environment. |
Features
- Our unique design concept with a SolidBody stands for high reliability, extreme versatility, high efficiency and performance, and is known as very maintenance friendly
- SolidBody concept integrates percussion mechanism and guide system into a single block of special cast iron, decreasing the total number of parts. It also eliminates components like damping and guiding elements and tie rods or stud bolts completely and results in an extremely slim and compact shape to simplify handling. A replaceable piston liner supports low repair cost.
- Energy Recovery - the piston recoil energy is automatically utilized to increase the performace without additional hydraulic input and to lower vibrations
- Air and Water Inlet to connect compressed air supply and an integrated water channel for dust suppression (for SB 152 - SB 1102 water nozzles as option)
- ContiLube™ II or Contilube™ II micro - our self-priming lubrication pump with adjustable grease volume, directly mounted on the hydraulic breaker, for uninterruped operaiton and optimized lubrication.
- Floating bushing - tool bushing with floating fit for easy exchange on-site with standard hand tools
- Pressure relif valve built in valve to protect against overloads
- Dust wiper integrated to extend service life of bushing and retainer bars
- AutoStart - the hydraulic breaker starts without load applied to working tool thus simplifying handling
- Patened tool locking system combining a lock buffer and solid pin for quick tool exchange
** Prices apply to standard OEM pin-on bracket, or Wain Roy / C&P-style quick coupler for back hoe and excavator mounting withing recommended carrier weight range.
Ships with Universal mounting bracket, hydraulic hose set and 3" Cross Chisel or Moil Point
SPECIFICTIONS
| SB 52 Hydraulic Breaker | 8460030010 | $6,050.00
|
| Carrier Weight Class¹ | lbs | 1550-2400 |
| Service Weight² | lbs | 120 |
| Working Tool Diameter | in | 1.57 |
| Working Tool Length | in | 10 |
| Hydraulic Input Power, Max | Hp | 9.1 |
| Oil Flow | gpm | 3.2-7.1 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 750-1700 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 117 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
OPTIONAL MOUNTING BRACKETS
- Mini SkidSteer - 24" or 36" SSL (skidsteer loader) Universal Bracket (Toro, Ramrod, Ditch Witch, Vermeer and Thomas)
- Mini SkidSteer - Combo 24" or 36" SSL Combo Bracket - 24" or 36" SSL and Backhoe/Excavator Bracket
- Standard SkidSteer - 48" SSL Universal Bracket
- Standard SkidSteer Combo - 48" SSL Universal Bracket and Backhoe/Exavator Bracket
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Shank Dia. (in) | Weight (lbs) | Price | ||

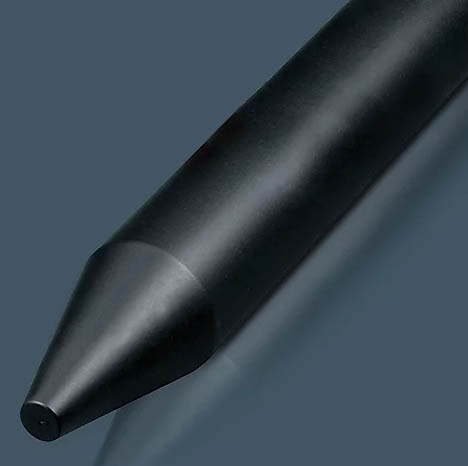

| Moil Point - Conical* | 3083340918 | - | 10 | 16.5 | 1.57 | 8 | $236.00
|

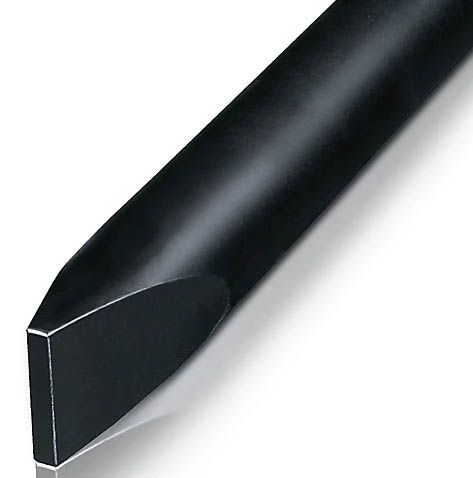

| 3" Cross Chisel* | 3083340919 | 1.57 | 10 | 16.5 | 1.57 | 8 | $236.00
|

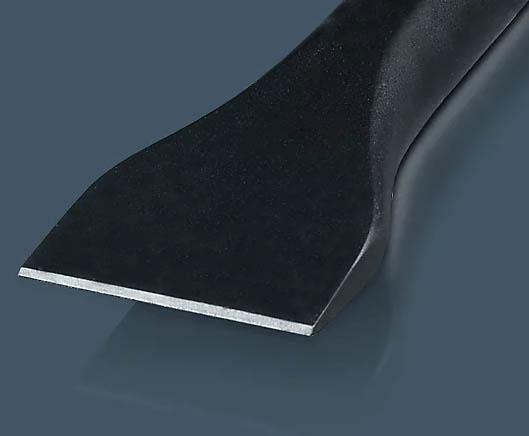

| 5" Wide Cross Chisel | 3083340920 | 2.9 | 10 | 16.5 | 1.57 | 10 | $332.00
|
| 5" Wide Parallel Chisel | 3083340921 | 2.9 | 10 | 16.5 | 1.57 | 10 | $332.00
|

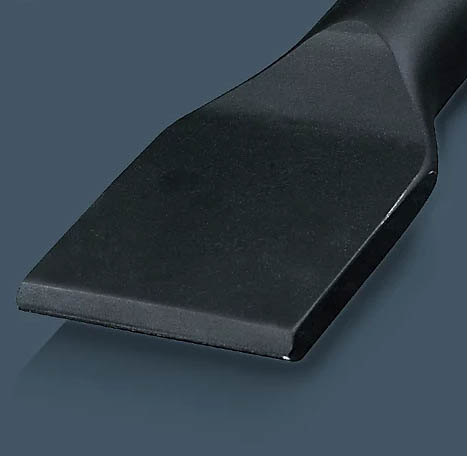

| 4" Cross Asphalt Cutter | 3083340922 | 4.7 | 10 | 16.5 | 1.57 | 10 | $339.00
|
| 4" Parallel Asphalt Cutter | 3083340923 | 4.7 | 10 | 16.5 | 1.57 | 10 | $339.00
|
| ContiLube II Micro Installation Fee | 9753243305 | QUOTE |

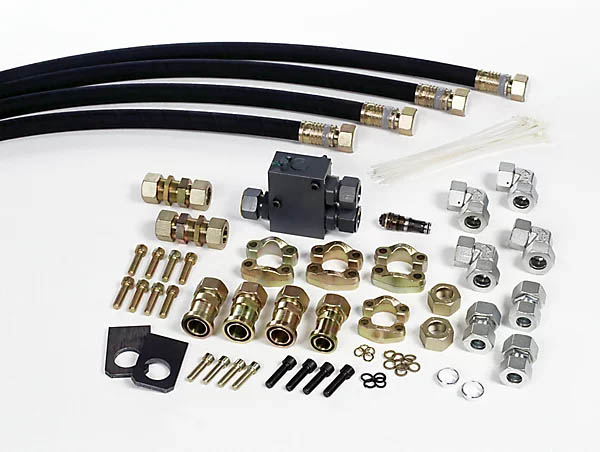

Heavy Duty Industrial Hose w/ Steel Spring Protection - 43" | 3363116917 | $170.00
|
|

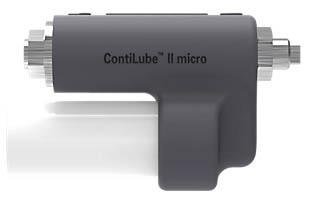

| ContiLube II Micro Pump | 3315383190 | $1,063.14
|
Heavy Duty Industrial Hose w/ Steel Spring Protection - 59" | 3363115422 | $240.00
|
|
| Univeral Mounting Kit for ContiLube II Micro | 3315386780 | $112.76
|
Heavy Duty Industrial Hose w/ Steel Spring Protection - 69" | 3361353551 | $257.73
|
|
| Hose Kit for ContiLube II Micro | 3315386280 | $491.01
|
Heavy Duty Industrial Hose w/ Steel Spring Protection - 83" | 3363085946 | $123.49
|
|
| Chisel Paste for Micro ContiLube II - 20 pack of 5.3oz tubes | 3363106447 | $280.00
|
Standard Industrial Hose - 59" | 3363115420 | $120.00
|
|
| Bio Lube Chisel Paste for Micro ContiLube II - 20 pack of 5.3oz tubes | 3363122354 | $310.00
|
Standard Industrial Hose - 69" | 3363491001 | $50.00
|
|
| Bio Lube Chisel Paste for ContiLube II - 12 pack of 17.6oz tubes | 3363122356 | $340.00
|
Standard Industrial Hose - 83" | 3363115421 | QUOTE |
|

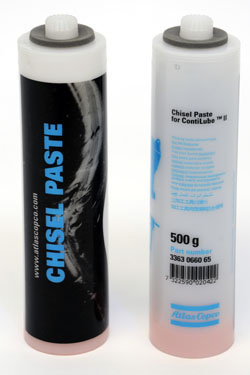

| Chisel Paste - 12 pack of 14oz tubes (standard grease cartridge) | 3363094913 | $250.00
|

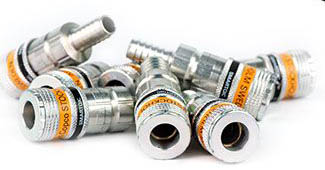

Additional Fitting Set | 3363098017 | $10.00
|
|
| Bio Lube Chisel Paste - 12 pack of 14oz tubes (standard grease cartridge) | 3363122355 | $280.00
|
||||
| Label Kit | 3315333591 | $265.04
|
Seal Kit | 3315333590 | $139.62
|
|
| Accumulator Repair Kit | 3315334690 | $229.88
|

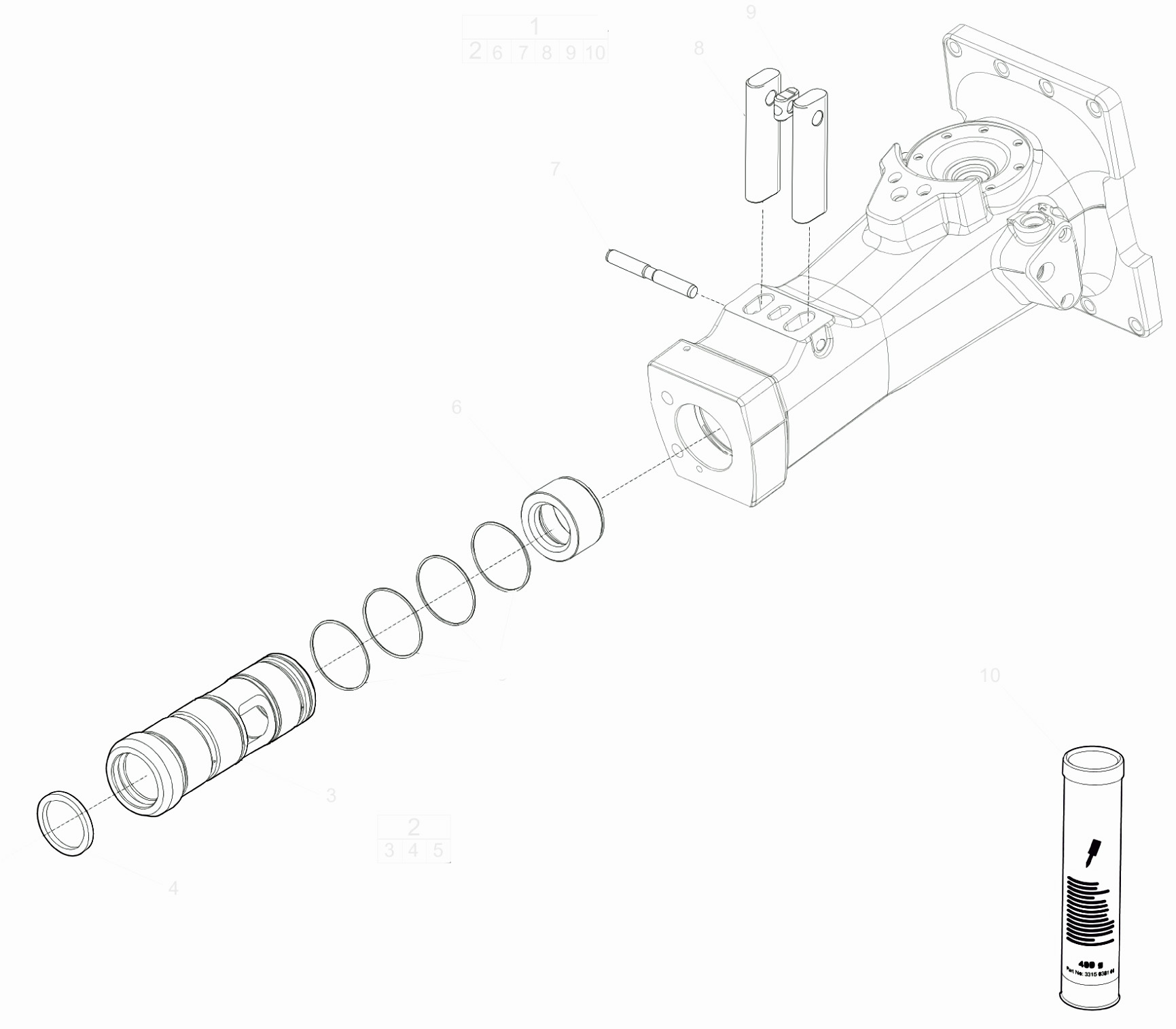

Lower Hammer Part Kit | 3315352105 | $550.05
|
Spare Parts List
SPECIFICATIONS
| SB 102 Hydraulic Breaker | 8460030030 | QUOTE |
| Carrier Weight Class¹ | lbs | 2400-6600 |
| Service Weight² | lbs | 199 |
| Working Tool Diameter | in | 1.77 |
| Working Tool Length | in | 10.4 |
| Hydraulic Input Power, Max | Hp | 11.7 |
| Oil Flow | gpm | 4.2-9.2 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 750-2300 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 115 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
OPTIONAL MOUNTING BRACKETS
- Mini SkidSteer - 24" or 36" SSL (skidsteer loader) Universal Bracket (Toro, Ramrod, Ditch Witch, Vermeer and Thomas)
- Mini SkidSteer - Combo 24" or 36" SSL Combo Bracket - 24" or 36" SSL and Backhoe/Excavator Bracket
- Standard SkidSteer - 48" SSL Universal Bracket
- Standard SkidSteer Combo - 48" SSL Universal Bracket and Backhoe/Exavator Bracket
CONSUMABLE TOOLS
| Part No | Tool Width (in) | Working Length (in) | Total Length (in) | Shank Dia (in) | Weight (lbs) | Price | |
| Moil Point - Conical | 3083342410 | - | 9.8 | 17.7 | 1.77 | 10 | $246.00
|
| 3" Cross Chisel | 3083342411 | 1.77 | 9.8 | 17.7 | 1.77 | 10 | $246.00
|
| Blunt Tool | 3083342412 | - | 9.8 | 17.7 | 13.77 | 11 | $260.43
|
| 5" Wide Cross Chisel | 3083340910 | 2.95 | 12.6 | 20.5 | 1.77 | 13 | $393.00
|
| 5" Wide Parallel Chisel | 3083340911 | 2.95 | 12.6 | 20.5 | 1.77 | 14 | $393.00
|
| 4" Cross Asphalt cutter | 3083340912 | 4.7 | 11 | 18.9 | 1.77 | 14 | $405.00
|
| 4" Parallel Asphalt Cutter | 3083340913 | 4.7 | 11 | 18.9 | 1.77 | 13 | $405.00
|

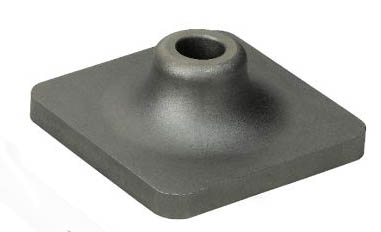

| Square Tamping Pad | 3315370600 | $199.33
|
|||||
| Post Driver Pad - Round | 3315371400 | $657.50
|
|||||
| Pile Driver pad - Round | 3315372100 | $389.02
|
|||||
| Bushing Pad - Round | 3315372800 | $734.67
|
|||||
| Proline Moil Point | 3363120259 | - | 9.8 | 17.7 | 1.77 | 10 | $369.74
|
| Proline chisel | 3363120260 | 1.77 | 9.8 | 17.7 | 1.77 | 10 | $369.74
|
ACCESSORIES & COMMON REPLACEMENT PARTS

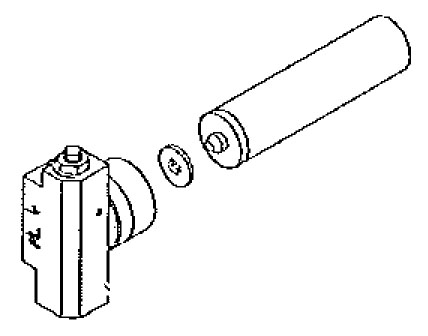

| Automatic Lubrication System | 3363067123 | $2,678.68
|
Heavy Duty Connecting Hose - 18L (M26 x 1.5) 1500mm | 3360995717 | $230.89
|
|

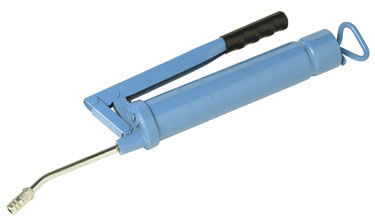

| Grease Gun | 0909107100 | $74.72
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2000mm | 3362235159 | QUOTE |
|
| Bio Chisel Paste 12 x 400g | 3363122355 | $280.00
|
Heavy Duty Conneciton Hose - 18L (M26 x 1.5) 1750mm | 3363115426 | $140.00
|
|

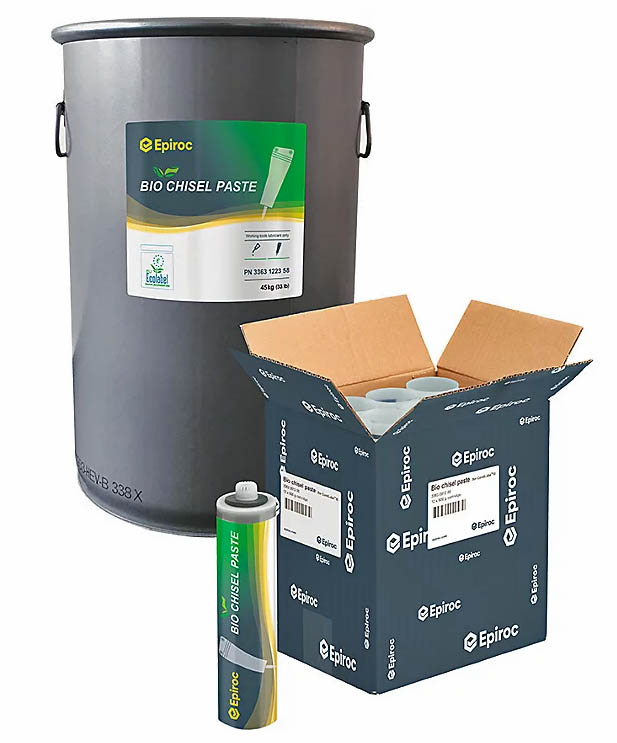

| Bio Chisel Paste Container - 15kg | 3363122357 | $675.69
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2400mm | 3363083313 | $204.04
|
|
| Bio Chisel Paste Container - 45kg | 3363122358 | $1,621.67
|
Standard Connection Hose - 18L (M26 x 1.5) 1500mm | 3363491002 | $60.00
|
|
| Standard Connection Hose - 18L (M26 x 1.5) 1750mm | 3363115423 | $80.00
|
||||
| Label Kit | 3315296291 | $265.04
|
Standard Connection Hose - 18L (M26 x 1.5) 2000mm | 3363115424 | $90.00
|
|
| Seal Kit | 3315296290 | $239.00
|
Standard Connection Hose - 18L (M26 x 1.5) 2400mm | 3363115425 | $100.00
|
|
| Accumulator Repair Kit | 3315299790 | $215.68
|
Additional Fitting Kit | 3363098018 | $30.00
|
|
| Lower Hammer Part Kit | 3315352120 | $818.07
|
SPECIFICATIONS
| SB 152 Hydraulic Breaker | 8460030040 | QUOTE |
| Carrier Weight Class¹ | lbs | 4200-9900 |
| Service Weight² | lbs | 310 |
| Working Tool Diameter | in | 1.97 |
| Working Tool Length | in | 11 |
| Hydraulic Input Power, Max | Hp | 15.1 |
| Oil Flow | gpm | 6.6-11.9 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 850-1900 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 114 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
OPTIONAL MOUNTING BRACKETS - None
CONSUMABLE TOOLS
| Part No | Tool Width (in) | Working Length (in) | Total Length (in) | Shank Dia (in) | Weight (lbs) | Price | |
| Moil Point - Conical | 3083342413 | - | 12 | 20.1 | 1.97 | 15 | $282.00
|
| 3" Cross Chisel | 3083342415 | 1.97 | 12 | 20.1 | 1.97 | 15 | $282.00
|
| Blunt Tool | 3083342414 | - | 12 | 20.1 | 1.97 | 18 | $293.00
|

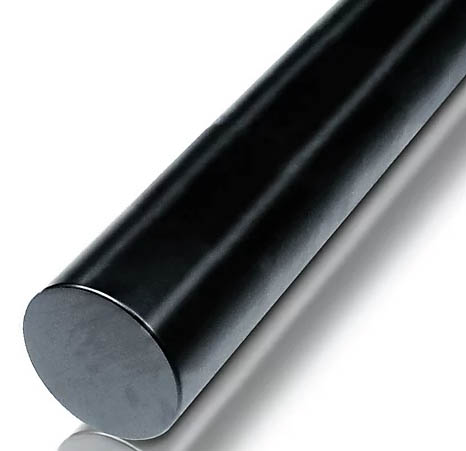

| Shaft | 3315370101 | $319.00
|
|||||
| 5" Wide Cross Chisel | 3083317100 | 4.3 | 10.8 | 18.9 | 1.97 | 16 | $359.00
|
| 5" Wide Parallel Chisel | 3083317200 | 4.3 | 10.8 | 18.9 | 1.97 | 17 | $379.38
|
| Cross Asphalt Cutter | 3083317300 | 4.7 | 11.2 | 19.3 | 1.97 | 14 | $398.00
|
| Parallel Asphalt Cutter | 3083317400 | 4.7 | 11.2 | 19.3 | 1.97 | 16 | $398.00
|
| Square Tamping Pad | 3315370600 | $199.33
|
|||||
| Round Post Driver Pad | 3315371400 | $657.50
|
|||||
| Round Pile Driver Pad | 3315372100 | $389.02
|
|||||
| Round Bushing Pad | 3315372800 | $734.67
|
|||||
| Moil Point - X Profile Proline | 3363120261 | 12 | 20.1 | 1.97 | 15 | $450.00
|
|
| Chisel - Xprofile Proline | 3363120262 | 1.97 | 12 | 20.1 | 1.97 | 14 | $459.76
|
ACCESSORIES & COMMON REPLACEMENT PARTS
| Lubricating Gun | 0909107100 | $74.72
|
Heavy Duty Connecting Hose - 18L (M26 x 1.5) 1500mm | 3360995717 | $230.89
|
|
| Chisel Paste for Grease Gun - 12 x 400g | 3363094913 | $250.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2000mm | 3362235159 | QUOTE |
|
| Chisel Paste Container - 15kg | 3363125870 | $590.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2400mm | 3363083313 | $204.04
|
|
| Chisel Paste Container - 45kg | 3363122801 | $1,380.00
|
Additional Fitting Kit | 3363098018 | $30.00
|
|
| Filling Device for Accumulator | 3360920415 | $2,039.18
|
||||
| Nipple for Charging the Accumulator | 3363094459 | Label Kit | 3315290591 | $229.67
|
||
| Filling Hose for Charging the Accumulator | 3361329803 | $149.38
|
Seal Kit | 3315290590 | $228.34
|
|
| Bushing Wear Controler | 3315353100 | $14.58
|
Accumulator Repair Kit | 3315282490 | $301.43
|
|
| Lower Hammer Part Kit | 3315352140 | $1,513.23
|
SPECIFICATIONS

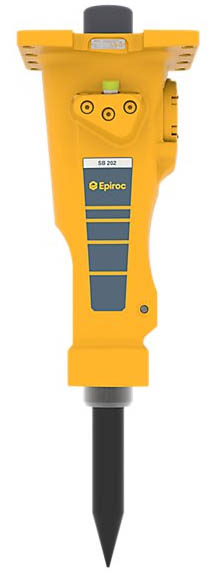

| SB 202 Hydraulic Breaker | 8460030050 | $13,675.00
|
| Carrier Weight Class¹ | lbs | 5500-13,200 |
| Service Weight² | lbs | 440 |
| Working Tool Diameter | in | 2.56 |
| Working Tool Length | in | 13 |
| Hydraulic Input Power, Max | Hp | 21.8 |
| Oil Flow | gpm | 9.2-17.2 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 850-1800 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 118 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
OPTIONAL MOUNTING BRACKETS
- Mini SkidSteer - 24" or 36" SSL (skidsteer loader) Universal Bracket (Toro, Ramrod, Ditch Witch, Vermeer and Thomas)
- Mini SkidSteer - Combo 24" or 36" SSL Combo Bracket - 24" or 36" SSL and Backhoe/Excavator Bracket
- Standard SkidSteer - 48" SSL Universal Bracket
- Standard SkidSteer Combo - 48" SSL Universal Bracket and Backhoe/Exavator Bracket
CONSUMABLE TOOLS
| Part No | Tool Width (in) | Working Length (in) | Total Length (in) | Shank Dia (in) | Weight (lbs) | Price | |
| Moil Point - Conical | 3083316206 | - | 12.99 | 24.8 | 2.56 | 28.66 | $481.00
|
| 3" Cross Chisel | 3083316105 | 2.56 | 12.99 | 24.8 | 2.56 | 30.86 | $481.00
|
| Blunt Tool | 3083341105 | - | 12.99 | 24.8 | 2.56 | 33.07 | $501.00
|
| 5" Wide Cross Chisel | 3083316300 | 5.12 | 13.78 | 25.6 | 2.56 | 35.27 | $599.00
|
| 5" Wide Parallel Chisel | 3083316700 | 5.12 | 13.78 | 25.6 | 2.56 | 35.27 | $665.55
|
| Asphalt Cutter - Cross | 3083340946 | 5.51 | 13.78 | 25.6 | 2.56 | 35.27 | $689.00
|
| Asphalt Cutter - Indexed 90° | 3083340947 | 5.51 | 13.78 | 25.6 | 2.56 | 35.27 | $689.00
|
| Tamping Pad - Square | 3315370900 | 11.81 | 1.3 | $491.00
|
|||
| Post Driver Pad - Round | 3315371700 | 5.9 | .83 | $1,159.00
|
|||
| Pile Driver Pad - Round | 3315372300 | 3.9 | .38 | $708.93
|
|||
| Bushing Pad - Round | 3315373000 | 5.1 | .38 | $1,015.98
|
|||
| Moil Point - X Profile Proline | 3363120263 | - | 23.62 | 35.43 | 2.56 | 28.66 | $930.00
|
| Chisel - X Profile Proline | 3363120264 | 2.56 | 23.62 | 35.43 | 2.56 | 28.66 | $930.00
|
| Shaft | 3315370205 | - | 24.8 | 46.3 | $501.00
|
ACCESSORIES & COMMON REPLACEMENT PARTS
| Grease Gun | 0909107100 | $74.72
|
Heavy Duty Connecting Hose - 18L (M26 x 1.5) 1500mm | 3360995717 | $230.89
|
|
| Chisel Paste 12 x 400g | 3363094913 | $250.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2000mm | 3362235159 | QUOTE |
|
| Chisel Paste Container - 15kg | 3363125870 | $590.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2400mm | 3363083313 | $204.04
|
|
| Chisel Paste Container - 45kg | 3363122801 | $1,380.00
|
||||
| Label Kit | 3315294390 | $229.67
|
Standard Connection Hose - 18L (M26 x 1.5) 1500mm | 3363491002 | $60.00
|
|
| Seal Kit | 3382070079 | $240.00
|
Standard Connection Hose - 18L (M26 x 1.5) 1750mm | 3363115423 | $80.00
|
|
| Accumulator Repair Kit | 3382070078 | $240.00
|
Standard Connection Hose - 18L (M26 x 1.5) 2000mm | 3363115424 | $90.00
|
|
| Filling Device for Accumulator | 3360920415 | $2,039.18
|
Standard Connection Hose - 18L (M26 x 1.5) 2400mm | 3363115425 | $100.00
|
|
| Bushing Wear Controller | 3315353100 | $14.58
|
Additional Fitting Kit | 3363098018 | $30.00
|
|
| Lower Hammer Part Kit | 3315352145 | $2,047.58
|
SPECIFICATIONS
| SBU 220 Hydraulic Breaker | 8460030055 | $13,675.00
|
| Carrier Weight Class¹ | lbs | 6000-13.000 |
| Service Weight² | lbs | 500 |
| Working Tool Diameter | in | 2.56 |
| Working Tool Length | in | 12 |
| Hydraulic Input Power, Max | Hp | 25 |
| Oil Flow | gpm | 11.1-19.8 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 750-1400 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 118 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
OPTIONAL MOUNTING BRACKETS
- Standard SkidSteer - 48" SSL Universal Bracket
- Standard SkidSteer Combo - 48" SSL Universal Bracket and Backhoe/Exavator Bracket
CONSUMABLE TOOLS
| Part No | Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | |
| Moil Point - Conical | 3083316206 | - | 12.99 | 24.8 | 28.66 | $481.00
|
| 3" Cross Chisel | 3083316105 | 2.56 | 12.99 | 24.8 | 30.86 | $481.00
|
| Blunt Tool | 3083341105 | - | 12.99 | 24.8 | 33.07 | $501.00
|
| 5" Wide Cross Chisel | 3083316300 | 5.12 | 13.78 | 25.6 | 35.27 | $599.00
|
| 5" Wide Parallel Chisel | 3083316700 | 5.12 | 13.78 | 25.6 | 35.27 | $665.55
|
| Asphalt Cutter - Cross | 3083340946 | 5.51 | 13.78 | 25.6 | 35.27 | $689.00
|
| Asphalt Cutter - Indexed 90° | 3083340947 | 5.51 | 11.02 | 25.6 | 35.27 | $689.00
|
| Tamping Pad - Square | 3315370900 | 11.81 | 1.3 | $491.00
|
||
| Post Driver Pad - Round | 3315371700 | 5.9 | .83 | $1,159.00
|
||
| Pile Driver Pad - Round | 3315372300 | 3.9 | .35 | $708.93
|
||
| Bushing Pad - Round | 3315373000 | 5.1 | .38 | $1,015.98
|
||
| Moil Point - X Profile Proline | 3363120263 | - | 23.62 | 35.43 | 28.66 | $930.00
|
| Chisel - X Profile Proline | 3363120264 | 2.56 | 23.62 | 35.43 | 28.66 | $930.00
|
| Shaft | 3315370205 | 24.8 | 46.3 | $501.00
|
ACCESSORIES & COMMON REPLACEMENT PARTS
| Automatic Lubrication System | 3363067123 | $2,678.68
|
Heavy Duty Connecting Hose - 18L (M26 x 1.5) 1500mm | 3360995717 | $230.89
|
|
| Grease Gun | 0909107100 | $74.72
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2000mm | 3362235159 | QUOTE |
|
| Chisel Paste 12 x 400g | 3363122355 | $280.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2400mm | 3363083313 | $204.04
|
|
| Chisel Paste Container - 15kg | 3363122357 | $675.69
|
Additional Fitting Kit | 3363098018 | $30.00
|
|
| Chisel Paste Container - 45kg | 3363122358 | $1,621.67
|
||||
| Label Kit | 3315294390 | $229.67
|
Filling Device for Accumulator | 3360920415 | $2,039.18
|
|
| Seal Kit | 3382070079 | $240.00
|
Bushing Wear Controller | 3315353100 | $14.58
|
|
| Accumulator Repair Kit | 3382070078 | $240.00
|
Lower Hammer Part Kit | 3315352145 | $2,047.58
|
SPECIFICATIONS

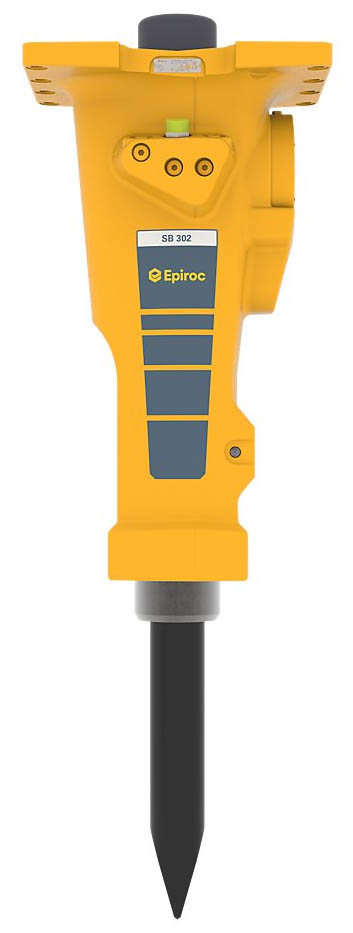

| SB 302 Hydraulic Breaker | 8460030060 | $18,530.00
|
| Carrier Weight Class¹ | lbs | 9900-19,800 |
| Service Weight² | lbs | 670 |
| Working Tool Diameter | in | 3.15 |
| Working Tool Length | in | 15.7 |
| Hydraulic Input Power, Max | Hp | 26.8 |
| Oil Flow | gpm | 13.2-21.1 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 600-1400 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 119 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Part No | Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | |
| Moil Point - Conical | 3083319106 | 14.96 | 29.92 | 61.7 | $844.00
|
|
| 3" Cross Chisel | 3083319205 | 3.15 | 14.9 | 29.92 | 61.7 | $844.00
|
| Blunt Tool | 3083319506 | 14.96 | 31.5 | 66.1 | $844.00
|
|
| 5" Wide Cross Chisel | 3083319300 | 5.91 | 15.35 | 30.31 | 57.3 | $1,322.00
|
| 5" Wide Parallel Chisel | 3083319400 | 5.91 | 13.78 | 25.6 | 35.27 | $1,322.00
|
| Asphalt Cutter - Cross | 3083340944 | 7.09 | 16.54 | 28.35 | 59.5 | $1,241.00
|
| Asphalt Cutter - Parallel | 3083340945 | 7.09 | 16.54 | 28.35 | 59.5 | $1,241.00
|
| Tamping Pad - Square | 3315370900 | 11.81 | 1.3 | $491.00
|
||
| Post Driver Pad - Round | 3315371700 | 5.9 | .83 | $1,159.00
|
||
| Pile Driver Pad - Round | 3315372300 | 3.9 | .35 | $708.93
|
||
| Bushing Pad - Round | 3315373000 | 5.1 | .38 | $1,015.98
|
||
| Moil Point - X Profile Proline | 3363120265 | 24.41 | 39.37 | 57.3 | $1,197.64
|
|
| Chisel - X Profile Proline | 3363120266 | 3.15 | 24.41 | 39.37 | 59.5 | $1,197.64
|
| Shaft | 3315370305 | 33.1 | $811.00
|
ACCESSORIES & COMMON REPLACEMENT PARTS
| Automatic Lubrication System | 3363067123 | $2,678.68
|
Heavy Duty Connecting Hose - 18L (M26 x 1.5) 1500mm | 3360995717 | $230.89
|
|
| Grease Gun | 0909107100 | $74.72
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2000mm | 3362235159 | QUOTE |
|
| Chisel Paste 12 x 400g | 3363122355 | $280.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2400mm | 3363083313 | $204.04
|
|
| Chisel Paste Container - 15kg | 3363122357 | $675.69
|
Additional Fitting Kit | 3363098019 | $90.00
|
|
| Chisel Paste Container - 45kg | 3363122358 | $1,621.67
|
||||
| Label Kit | 3315349390 | $253.28
|
Filling Device for Accumulator | 3360920415 | $2,039.18
|
|
| Seal Kit | 3315301890 | $507.46
|
Bushing Wear Controller | 3315353100 | $14.58
|
|
| Accumulator Repair Kit | 3315348790 | $258.58
|
Lower Hammer Part Kit | 3315301990 | $2,356.63
|
SPECIFICATIONS
| SB 302 Hydraulic Breaker | 8460030065 | $18,530.00
|
| Carrier Weight Class¹ | lbs | 10,000-20,000 |
| Service Weight² | lbs | 730 |
| Working Tool Diameter | in | 3.15 |
| Working Tool Length | in | 17 |
| Hydraulic Input Power, Max | Hp | 34 |
| Oil Flow | gpm | 16.4-26.4 |
| Operating Pressure | psi | 1450-2175 |
| Impact Rate | bpm | 750-1300 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 122 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Part No | Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | |
| Moil Point - Conical | 3083319106 | 14.96 | 29.92 | 61.7 | $844.00
|
|
| 3" Cross Chisel | 3083319205 | 3.15 | 14.9 | 29.92 | 61.7 | $844.00
|
| Blunt Tool | 3083319506 | 14.96 | 31.5 | 66.1 | $844.00
|
|
| 5" Wide Cross Chisel | 3083319300 | 5.91 | 15.35 | 30.31 | 57.3 | $1,322.00
|
| 5" Wide Parallel Chisel | 3083319400 | 5.91 | 13.78 | 25.6 | 35.27 | $1,322.00
|
| Asphalt Cutter - Cross | 3083340944 | 7.09 | 16.54 | 28.35 | 59.5 | $1,241.00
|
| Asphalt Cutter - Parallel | 3083340945 | 7.09 | 16.54 | 28.35 | 59.5 | $1,241.00
|
| Tamping Pad - Square | 3315370900 | 11.81 | 1.3 | $491.00
|
||
| Post Driver Pad - Round | 3315371700 | 5.9 | .83 | $1,159.00
|
||
| Pile Driver Pad - Round | 3315372300 | 3.9 | .35 | $708.93
|
||
| Bushing Pad - Round | 3315373000 | 5.1 | .38 | $1,015.98
|
||
| Moil Point - X Profile Proline | 3363120265 | 24.41 | 39.37 | 57.3 | $1,197.64
|
|
| Chisel - X Profile Proline | 3363120266 | 3.15 | 24.41 | 39.37 | 59.5 | $1,197.64
|
| Shaft | 3315370305 | 33.1 | $811.00
|
ACCESSORIES & COMMON REPLACEMENT PARTS
| Automatic Lubrication System | 3363067123 | $2,678.68
|
Heavy Duty Connecting Hose - 18L (M26 x 1.5) 1500mm | 3360995717 | $230.89
|
|
| Grease Gun | 0909107100 | $74.72
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2000mm | 3362235159 | QUOTE |
|
| Chisel Paste 12 x 400g | 3363122355 | $280.00
|
Heavy Duty Connection Hose - 18L (M26 x 1.5) 2400mm | 3363083313 | $204.04
|
|
| Chisel Paste Container - 15kg | 3363122357 | $675.69
|
Additional Fitting Kit | 3363098019 | $90.00
|
|
| Chisel Paste Container - 45kg | 3363122358 | $1,621.67
|
||||
| Label Kit | 3315369890 | $243.13
|
Filling Device for Accumulator | 3360920415 | $2,039.18
|
|
| Seal Kit | 3315350690 | $487.15
|
Bushing Wear Controller | 3315353100 | $14.58
|
|
| Accumulator Repair Kit | 3315355490 | $350.15
|
Lower Hammer Part Kit | 3315301990 | $2,356.63
|
