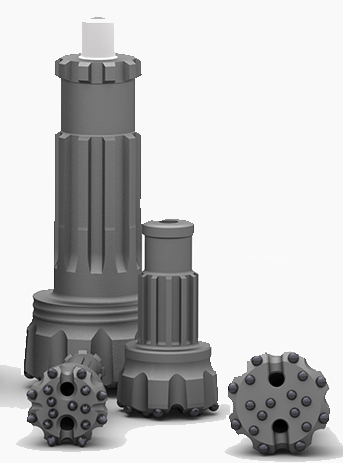

N125 12" Down the Hole Bits
| Specifications | ||
|---|---|---|
| Minimum Hole Size | in | 11 7/8" |
| Number of Splines | 10 | |
| Height of Foot Valve above Strike Face | in | 2.770 |
| Length of Shank | in | 19.29 |
| Running Surface Diameter | in | 7.373 |
| Carbide Inserts | Convex | Concave | Flat Face | |||||||
|
Diameter (in) |
Gauge | Face | Carbide Type |
Weight (lbs) |
Part No. | Price | Part No. | Price | Part No. | Price |
|
11-7/8 |
6 x 3/4 | 19 x 3/4 | Ballistic |
399 |
117N125V32B | $6,337.00
|
117N125C32B |
$6,337.00
|
117N125F32B | $6,337.00
|
| 11-7/8 | 6 x 3/4 | 19 x 3/4 | Dome | 399 | 117N125V32D | $6,337.00
|
117N125C32D | $6,337.00
|
117N125F32D | $6,337.00
|
|
12 |
6 x 3/4 | 19 x 3/4 | Ballistic | 406 | 12N125V32B | $6,337.00
|
12N125C32B | $6,337.00
|
12N125F32B | $6,337.00
|
| 12 | 6 x 3/4 | 19 x 3/4 | Dome | 406 | 12N125V32D | $6,337.00
|
12N125C32D | $6,337.00
|
12N125F32D | $6,337.00
|
|
12-1/4 |
6 x 3/4 | 19 x 3/4 | Ballistic | 417 | 122N125V32B | $6,337.00
|
122N125C32B | $6,337.00
|
122N125F32B | $6,337.00
|
| 12-1/4 | 6x 3/4 | 19 x 3/4 | Dome | 417 | 122N125V32D | $6,337.00
|
122N125C32D | $6,337.00
|
122N125F32D | $6,337.00
|
|
12-1/2 |
6 x 3/4 | 19 x 3/4 | Ballistic | 419 | 124N125V32B | $6,381.00
|
124N125C32B | $6,381.00
|
124N125F32B | $6,381.00
|
| 12-1/2 | 6 x 3/4 | 19 x 3/4 | Dome | 419 | 124N125V32D | $6,381.00
|
124N125C32D | $6,381.00
|
124N125F32D | $6,381.00
|
|
12-7/8 |
6 x 3/4 | 21 x 3/4 | Ballistic | 427 | 127N125V32B | $6,381.00
|
127N125C32B | $6,381.00
|
127N125F32B | $6,381.00
|
| 12-7/8 | 6 x 3/4 | 21 x 3/4 | Dome | 427 | 127N125V32D | $6,381.00
|
127N125C32D | $6,381.00
|
127N125F32D | $6,381.00
|
|
13 |
6 x 3/4 | 19 x 3/4 | Ballistic | 431 | 13N125V32B | $6,381.00
|
13N125C32B | $6,381.00
|
13N125F32B | $6,381.00
|
| 13 | 6 x 3/4 | 19 x 3/4 | Dome | 431 | 13N125V32D | $6,381.00
|
13N125C32D | $6,381.00
|
13N125F32D | $6,381.00
|
|
13-3/4 |
9 x 3/4 | 34 x 3/4 | Ballistic | 449 | 136N125V32B | $7,642.00
|
136N125C32B | $7,642.00
|
136N125F32B | $7,642.00
|
| 13-3/4 | 9 x 3/4 | 34 x 3/4 | Dome | 449 | 136N125V32D | $7,642.00
|
136N125C32D | $7,642.00
|
136N125F32D | $7,642.00
|
|
14 |
9 x 3/4 | 34 x 3/4 | Ballistic | 491 | 14N125V32B | $7,642.00
|
14N125C32B | $7,642.00
|
14N125F32B | $7,642.00
|
| 14 | 9 x 3/4 | 34 x 3/4 | Dome | 491 | 14N125V32D | $7,642.00
|
14N125C32D | $7,642.00
|
14N125F32D | $7,642.00
|
|
15 |
12 x 3/4 | 35 x 3/4 | Ballistic | 521 | 15N125V35B | $7,904.00
|
15N125C35B | $7,904.00
|
15N125F35B | $7,904.00
|
| 15 | 12 x 3/4 | 35 x 3/4 | Dome | 521 | 15N125V35D | $7,904.00
|
15N125C35D | $7,904.00
|
15N125F35D | $7,904.00
|
|
15-1/2 |
12 x 3/4 | 35 x 3/4 | Ballistic | 538 | 154N125V35B | $9,140.00
|
154N125C35B | $9,140.00
|
154N125F35B | $9,140.00
|
| 15-1/2 | 12 x 3/4 | 35 x 3/4 | Dome | 538 | 154N125V35B | $9,140.00
|
154N125C35D | $9,140.00
|
154N125F35D | $9,140.00
|
|
15-3/4 |
12 x 3/4 | 35 x 3/4 | Ballistic | 542 | 156N125V35B | $9,140.00
|
156N125C35B | $9,140.00
|
156N125F35B | $9,140.00
|
| 15-3/4 | 12 x 3/4 | 35 x 3/4 | Dome | 542 | 156N125V35D | $9,140.00
|
156N125C35D | $9,140.00
|
156N125F35D | $9,140.00
|
|
16 |
12 x 3/4 | 35 x 3/4 | Ballistic | 547 | 16N125V35B | $9,140.00
|
16N125C35B | $9,140.00
|
16N125F35B | $9,140.00
|
| 16 | 12 x 3/4 | 35 x 3/4 | Dome | 547 | 16N125V35D | $9,140.00
|
16N125C35D | $9,140.00
|
16N125F35D | $9,140.00
|
|
16-1/2 |
12 x 3/4 | 35 x 3/4 | Ballistic | 553 | 164N125V35B | $9,454.00
|
164N125C35B | $9,454.00
|
164N125F35B | $9,454.00
|
| 16-1/2 | 12 x 3/4 | 35 x 3/4 | Dome | 553 | 164N125V35D | $9,454.00
|
164N125C35D | $9,454.00
|
164N125F35D | $9,454.00
|
|
17 |
12 x 3/4 | 51 x 3/4 | Ballistic | 618 | 17N125V38B | $9,454.00
|
17N125C38B | $9,454.00
|
17N125F38B | $9,454.00
|
| 17 | 12 x 3/4 | 51 x 3/4 | Dome | 618 | 17N125V38D | $9,454.00
|
17N125C38D | $9,454.00
|
17N125F38D | $9,454.00
|
|
17-1/4 |
12 x 3/4 | 51 x 3/4 | Ballistic | 624 | 174N125V38B | $9,659.00
|
174N125C38B | $9,659.00
|
174N125F38B | $9,659.00
|
| 17-1/4 | 12 x 3/4 | 51 x 3/4 | Dome | 624 | 174N125V38D | $9,659.00
|
174N125C38D | $9,659.00
|
174N125F38D | $9,659.00
|
|
18 |
12 x 3/4 | 54 x 3/4 | Ballistic | 632 | 18N125V38B | $9,904.00
|
18N125C38B | $9,904.00
|
18N125F38B | $9,904.00
|
| 18 | 12 x 3/4 | 54 x 3/4 | Dome | 632 | 18N125V38D | $9,904.00
|
18N125C38D | $9,904.00
|
18N125F38D | $9,904.00
|
