Sub Pumps
Rugged Design for Tough Jobs

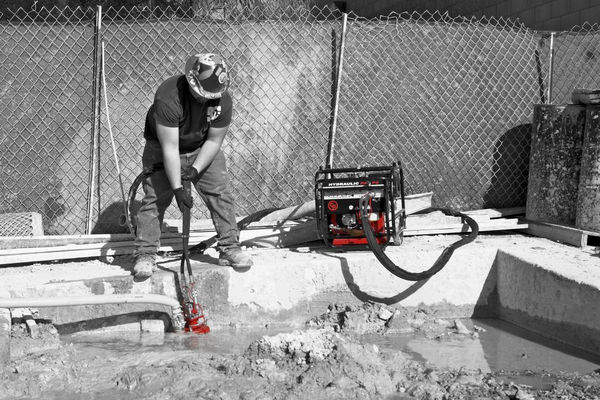

CP hydraulic submersible pumps are so tough, it takes much more than stones and debris to stop them. They are designed for continious pumping of water on building sites, in flooded excavations and cellars, and in similar situations.
These rugged pumps are built to deliver impressive performance for their size and weight. The 2" pump handles dirty water ontaining small stones and debris up to 10mm. Cooled and lubricated by the hydraulic oil, they can be left to run dry without damage.
Shipped with 33' Discharge hose with Snap-tite coupler
Hydraulic Submersible Water Pumps
| WAP 2 | WAP 3 | |
|---|---|---|
| Price | 1806101441 | 1806101442 |
| Prices | QUOTE  |
QUOTE |
| Weight (lbs) | 24 | 29 |
| Height (in) | 13.6 | 13.6 |
| Width (in) | 8.9 | 12 |
| Oil Flow (gpm) | 5-6 | 8 |
| Working Pressure (psi) | 1,450 | 2031 |
| Pump Head Maximum (ft) | 82 | 105 |
| Pump Flow Maximum (gpm) | 222 | 507 |
| Discharge (in) | 2 | 3 |
| EHTMA Class | C | C |
| Solids Handling up to (in) | 0.4 | 2.5 |
| Sound Power Level Guaranteed* (2000/14EC) Lw (dB(A)) | 95 | 95 |
| Sound Pressure Level* (ISO 11203) (Lp, r=1m) (dB(A)) | 84 | 84 |
* Full details of the measurement are available in the Safety and Operating instruction of the product.
WAP2

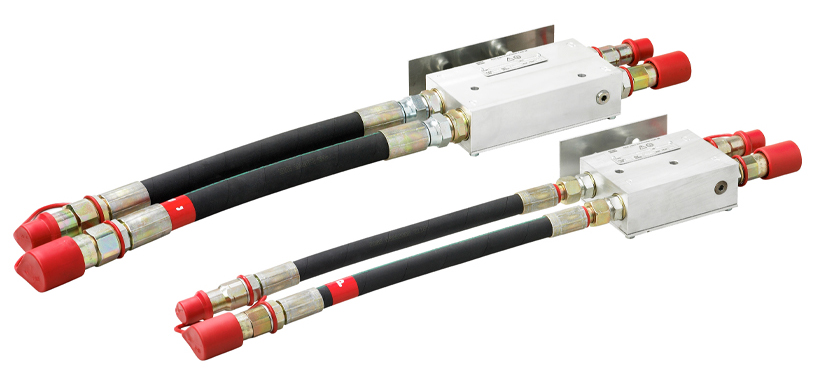

| OFD5 Oil Flow Divider | 1801163319 | $1,202.66
|
Quick Release Coupling - ½" Female | 3371805133 | $118.06
|
| OFD8 Oil Flow Divider | 1801164318 | $2,098.25
|
Quick Release Coupling - ½" Male | 3371805134 | $83.89
|

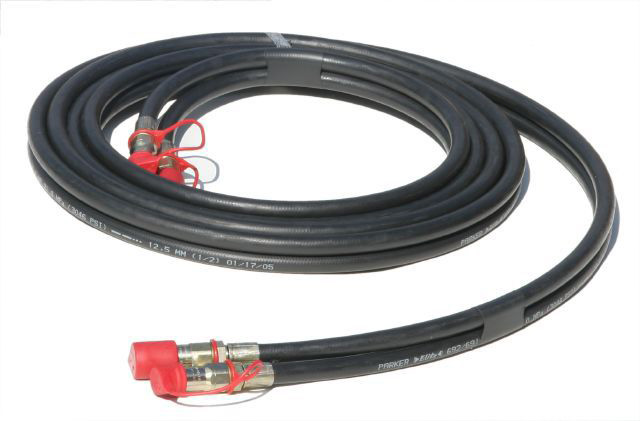

| Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
Seal Kit | 3376606015 | $224.78
|
| Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|

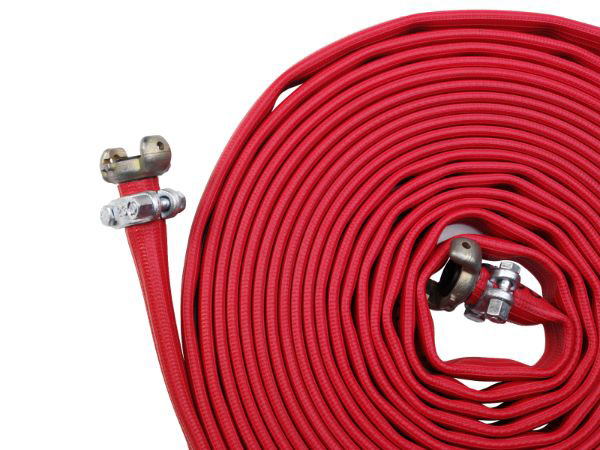

Discharge Hose - 2", including snap-on hose fitting and clamps | 3378002100 | $360.02
|
| Hydraulic Oil - 1 Gal | 3371807777 | $79.02
|
