Core Drills
Compact Power with Excellent Control

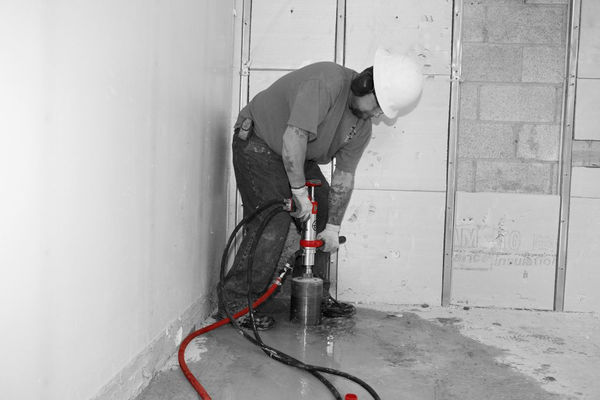

CP hydraulic core drills are ideal for working in confined areas - installing drainage, swer and water pipes, or cable and ventilation ducts where large, deep holes are needed. They can be operated freehand or mounted in a drill stand. The core drill comes with a strong steel case for transport and storage.
Hydraulic control of the drill torque helps reduce kickback when drill bits jam. You are in control, eve3n when drilling holes of 200mm diameter and above. In addition, due to the compact design of the CP core drill, you can easily drill holes of up to 200mm freehand.
Hydraulic Core Drills
| COR 5 | COR 15 | |
|---|---|---|
| Price | 1806101454 | 1806101455 |
| Prices | $3,600.00
|
$3,600.00
|
| Weight with hoses (lbs) | 21 | 20 |
| Service weight with hoses and 112mm tool (lbs) | 28.5 | 28.5 |
| Length without drill (in) | 16.3 | 16 |
| Drill Diameter (in) | 1.9 - 8 | 0.5 - 3 |
| Oil Flow (gpm) | 5 - 8 | 5 - 8 |
| Working Pressure (psi) | 870 - 1,740 | 870 - 1,740 |
| Revolutions (rpm) | 600 - 900 | 1,500 - 2,250 |
| Hydraulic Ports (thread female) (drive shaft)* | 1⁄2" BSP | 1⁄2" BSP |
| EHTMA Class | C/D | C/D |
| Vibration Level 3 Axes** (ISO 28927-5) (at 20l/min) (m/s2) | 3.1 | 2.7 |
| Sound Pressure Level** (ISO 11203) (Lp, r=1m) (dB(A)) | <70 | <70 |
* 1⁄2" BSP male x 1-1⁄4" UNC male drive adaptor included for use of larger diameter core bits.
** Full details of measurement are available in the Safety and Operating instructions of this product.
COR 5
COR 15

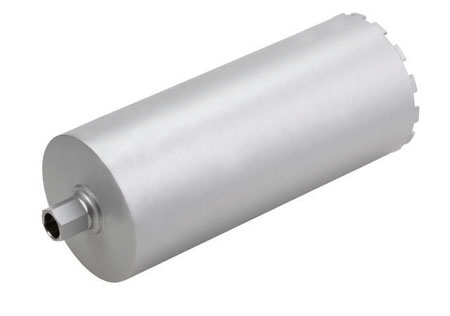

Diamond Core Bits & AccessoriesFor concrete, reinforced concrete, and brickwork. |
|||||||
| Diameter (in) | Length (in) | Weight (lbs) | Part | Price | Description | Part No | Price |
|---|---|---|---|---|---|---|---|
| 2.4 | 17.7 | 3.7 | 3378005061 | $685.82
|
Seal Kit | 3376608008 | $144.10
|
| 3.2 | 17.7 | 5.3 | 3378005062 | $705.22
|
Motor Seal Kit | 3371817750 | $221.81
|
| 4.0 | 17.7 | 7.1 | 3378005063 | $836.39
|

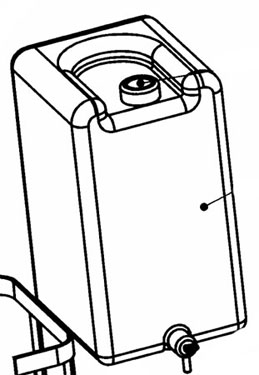

Water Kit | 3371809002 | $659.12
|
| 4.4 | 17.7 | 8.2 | 3378005064 | $932.46
|
Chuck Kit | 3371807768 | $512.52
|
| 5.2 | 17.7 | 10.1 | 3378005065 | $1,089.43
|
OFD5 Oil Flow Divider | 1801163319 | $1,202.66
|
| 6.0 | 17.7 | 11.0 | 3378005066 | $1,194.88
|
OFD8 Oil Flow Divider | 1801164318 | $2,098.25
|
| 6.4 | 17.7 | 13.9 | 3378005067 | $1,372.62
|
Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
| 7.9 | 17.7 | 21.8 | 3378005068 | $1,518.16
|
Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
| Discharge Hose - 2m x 2", includes snap-on fittings & clamp | 3378002100 | $360.02
|
|||||
