Cutoff Saws
Reliable Cutting, Every Time
They may be light and compact, but don't be fooled. A CP hydraulic cutoff saw with the right blade will cut through concrete, asphalt, and steel. With our 16" saw at full throttle, you have the raw power of a gasoline powered engine in your hand.
The open cutting face makes the CP cutoff saw easy to use, even under the most demanding conditions. In addition, the simple, direct drive configuration reduces maintenance, especially in comparison with belt-driven saws. A water kit is available to provide a supply of cooling water where needed.
Hydraulic Cutoff Saws
| SAW 14 | SAW 16 | |
|---|---|---|
| Part | 1809014003 | 1809016613 |
| Prices | $2,310.00
|
$2,455.00
|
| Weight with hoses (lbs) | 26.5 | 28.5 |
| Service Weight including disk (lbs) | 29 | 33 |
| Disk Size (in) | 14 | 16 |
| Arbor Size (in) | 1 | 1 |
| Cutting Depth (in) | 5.2 | 6.3 |
| Oil Flow (gpm) | 5-8 | 5-11 |
| Revolutions (rpm) | 2,500-4,000 | 2,000-4,000 |
| Speed (ft/s) | 151-246 | 138-279 |
| EHTMA Class | C/D | C/D/E |
| Vibration Level 3 Axes* (ISO 28927-8) at 20l/min (m/s2) | 4.9 | 4.9 |
| Sound Power Level Guaranteed* (2000/14/EC) Lw (dB(A)) | 108 | 116 |
| Sound Pressure Level* (ISO 11203) (Lp, r=1m) (dB(A)) | 94 | 102 |
* Full details of the measurement are available in the Safety and Operating instruction of the product.

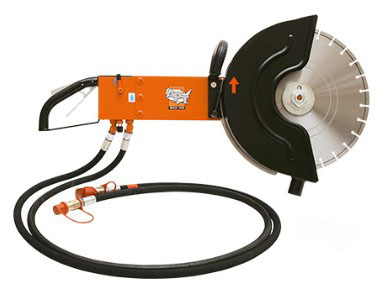

SAW 14
SAW 16
Diamond DisksWork with SAW14 and SAW16 |
||||
| Material | Disk Diameter (in) | Arbor Diameter (in) | Part | Price |
|---|---|---|---|---|
| Concrete | 13.8 | 1.0 | 3378005069 | QUOTE |
| Concrete | 15.7 | 1.0 | 3371809769 | QUOTE |
| Asphalt | 13.8 | 1.0 | 3378005070 | QUOTE |
| Asphalt | 15.7 | 1.0 | 3371809768 | QUOTE |
Cart with Water ContainerWork with SAW14 and SAW16 |
||||
| Description | Weight (lbs) | Part | Price | |
|---|---|---|---|---|
| Cart with Water Container | 55 | AC-1809001001 | $1,135.00 $500.00
|
|
Hydraulic Accessories |
|||||
| Description | Part Number | Price | Description | Part Number | Price |
|---|---|---|---|---|---|
| OFD5 Oil Flow Divider | 1801163319 | $1,202.66
|
Quick Release Coupling ½" Female | 3371805137 | $112.46
|
| OFD8 Oil Flow Divider | 1801164318 | $2,098.25
|
Quick Release Coupling ½" Male | 3371805138 | $49.89
|
| Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
Motor Seal Kit | 3378099907 | $123.24
|
| Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
Seal Kit for SAW14 | 3371809010 | $152.18
|
| Hydraulic Oil - 1 Gal | 3371807777 | $79.02
|
Complete Trigger | 3371814058 | $262.49
|
