Post Drivers
| PDR 30 T | PDR 75 T | PDR 75 RV | PDR 95 T | PDR 95 RV | |
|---|---|---|---|---|---|
| Part | 1801394007 | 1801404001 | 1801405001 | 1801414001 | 1801415001 |
| Price | $2,290.00
|
$2,870.00
|
$2,870.00
|
$3,390.00
|
$3,390.00
|
Driving Force with Total Ease
Driving down posts or rods for fences, road signs, crash barriers, tent anchors, or other purposes calls for a tough machine with plenty of power. CP post driver deliver, whether it's in soft soil or rock-hard asphalt. The sheer force of the blows is impressive, so you can drive down posts in record times with virtually no effort.
T Versions
- Trigger function is mounted directly on the driver for short post driving
RV Versions

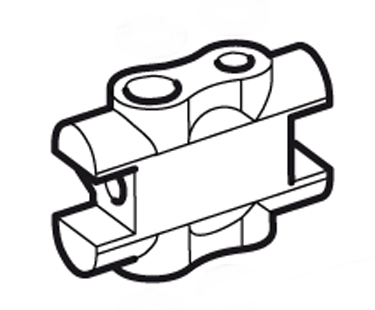

- Equipped with an on/off valve mounted at the end of a 2m long tail hose for remote operation on long poles
- On long poles, the post driver is lifted up together with the pole
"Can I Run Your Hydraulic Tools on My Power Source?"

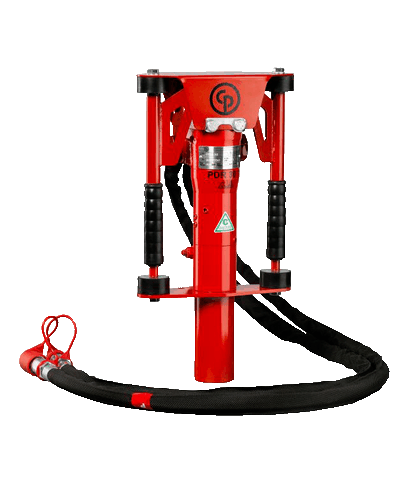

PDR 30 T
Lightweight, high frequency driver. The PDR 30 T has a built-in trigger handle for hast driving of small diameter rods, anchors, fencing, tent stakes, and earth connectors. It accepts standard 50mm rods. Adaptors or bushing inserts are available for 18-65mm rods.
| Part | 1801394007 | |
|---|---|---|
| Price | $2,290.00
|
|
| Weight with hoses | lbs | 39 |
| Oil Flow | gpm | 5 |
| Working Pressure | psi | 1,160-1,450 |
| Maximum Back Pressure | psi | 145 |
| Impact Rate | bpm | 2,300* |
| Hydraulic Ports (thread female) (drive) | 1⁄2" BSP | |
| Vibration Level 3 Axes*** (ISO 28927-10) at 20l/min | m/s2 | 17.5 |
| Sound Power Level Guaranteed*** (2000/14/EC) Lw | dB(A) | 116 |
| Sound Pressure Level*** (ISO 11203) (Lp, r=1m) | dB(A) | 102 |
| EHTMA Class | C | |
| Activation Type | Trigger Level | |
| Hydraulic System | Open Center |
* Impact rate at 5gpm
Accessories & Common Replacement Parts
| OFD5 Oil Flow Divider | 1801163319 | $1,202.66
|
Quick Release Coupling - 1/2" BSP Female | 3371805133 | $118.06
|
| OFD 8 Oil Flow Divider | 1801164318 | $2,098.25
|
Quick Release Coupling - 1/2" BSP Male | 3371805134 | $83.89
|
| Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
Seal Kit | 3371814057 | $119.22
|
| Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
Trigger Valve Kit | 3371814058 | $262.49
|
| Hydraulic Oil - 1 Gal | 3371807777 | $79.02
|
Accumulator Kit | 3371814051 | $453.52
|
| Adaptor Kit - Round Bushing 0.6" | 3371806056 | $417.10
|
|||
| Adaptor Kit - Round Bushing 1" | 3371806057 | $115.26
|
|||
| Adaptor Kit - Round Driver Head 2.4" | 3371806058 | $458.41
|

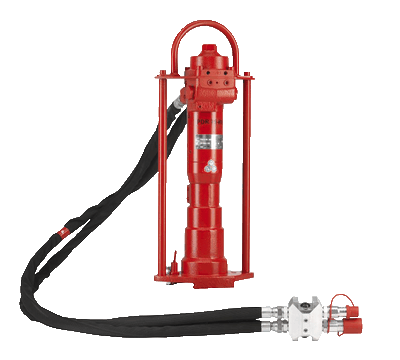

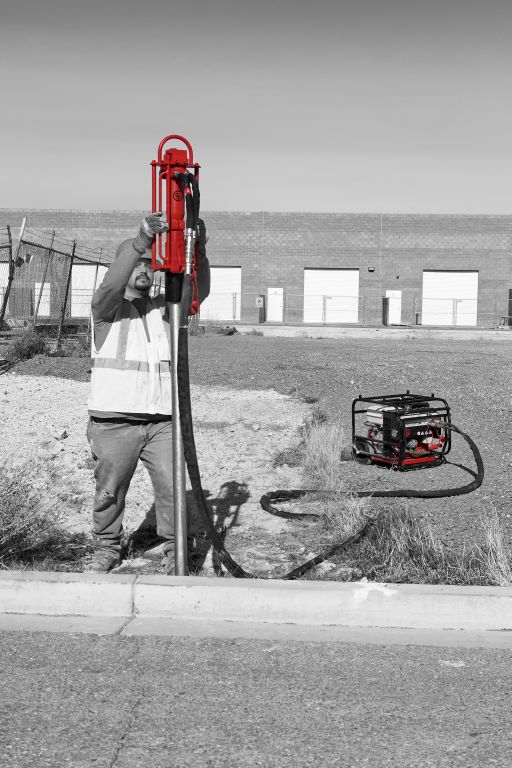

PDR 75
All around driver. The PDR 75 is suitable for post driving, anchoring, and fencing, and is equally effective for steel or wood posts. Use the slide in adaptor system and, within seconds, the driver is ready to handle profiles up to a max diameter of 96mm.
| PDR 75 T | PDR 75 RV | ||
|---|---|---|---|
| Part | 1801404001 | 1801405001 | |
| Price | $2,870.00
|
$2,870.00
|
|
| Weight with hoses | lbs | 71 | 73 |
| Oil Flow | gpm | 5-8 | 5-8 |
| Working Pressure | psi | 1,525-2,030 | 1,525-2,030 |
| Maximum Back Pressure | psi | 365 | 365 |
| Impact Rate | bpm | 1,680** | 1,680** |
| Hydraulic Ports (thread female) (drive) | 1⁄2" BSP | 1⁄2" BSP | |
| Vibration Level 3 Axes*** (ISO 28927-10) at 20l/min | m/s2 | 12.8 | --- |
| Sound Power Level Guaranteed*** (2000/14/EC) Lw | dB(A) | 115 | 115 |
| Sound Pressure Level*** (ISO 11203) (Lp, r=1m) | dB(A) | 102 | 102 |
| EHTMA Class | C/D | C/D | |
| Activation Type | Trigger Level | Remote Valve | |
| Hydraulic System | Open Center | Open or Closed Center |
** Impact rate at 8gpm
*** Full details of measurement are available in the Safety and Operating Instructions of the product.
Accessories & Common Replacement Parts
| OFD5 Oil Flow Divider | 1801163319 | $1,202.66
|
Quick Release Coupling ½" BSP Female | 3371805133 | $118.06
|
| OFD 8 Oil Flow Divider | 1801164318 | $2,098.25
|
Quick Release Coupling ½" BSP Male | 3371805134 | $83.89
|
| Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
Seal Kit | 3371820090 | $131.90
|
| Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
Remote Valve Kit | 3371821043 | $615.42
|
| Hydraulic Oil - 1 Gal | 3371807777 | $79.02
|
Accumulator Kit | 3371820050 | $467.88
|
| Square Adaptor - 2.13" | AC-3371806032 | $84.34
|
Label Kit | 3371821257 | QUOTE |
| Universal Adaptor - 2.48" | AC-3371806033 | $103.34
|
|||
| Round Adaptor 3.78" | AC-3371806034 | $92.70
|

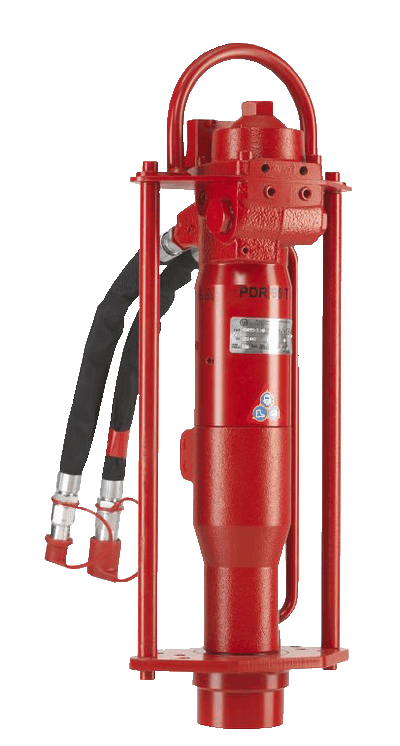

PDR 95
Heavy-duty driver. The PDR 95 drives large posts in the toughest sand or soil conditions. It's designed so that the striking poston hits drive adaptors directly for maximum driving power. Adaptors are available for posts up to 150mm diameter. For large scale jobs, the PDR 75 and PDR 95 are often used together with tractors or cranes, which make it easier to lift and guide the driver.
| PDR 95 T | PDR 95 RV | |
|---|---|---|
| Part | 1801414001 | 1801415001 |
| Price | $3,390.00
|
$3,390.00
|
| Weight with hoses (lbs) | 86 | 88 |
| Oil Flow (gpm) | 7-11 | 7-11 |
| Working Pressure (psi) | 1,525-1,815 | 1,525-1,815 |
| Maximum Back Pressure (psi) | 220 | 220 |
| Impact Rate (bpm) | 1,320** | 1,320** |
| Hydraulic Ports (thread female) (drive) | 1⁄2" BSP | 1⁄2" BSP |
| Vibration Level 3 Axes*** (ISO 28927-10) at 20l/min (m/s2) | --- | --- |
| Sound Power Level Guaranteed*** (2000/14/EC) Lw (dB(A)) | 118 | 118 |
| Sound Pressure Level*** (ISO 11203) (Lp, r=1m) (dB(A)) | 105 | 105 |
| EHTMA Class | D/E | D/E |
| Activation Type | Trigger Level | Remote Valve |
| Hydraulic System | Open Center | Open or Closed Center |
** Impact rate at 8gpm
*** Full details of measurement are available in the Safety and Operating Instructions of the product.
Solid Adaptors |
||
| Description | Part | Price |
|---|---|---|
| Round: for 6" tubes and 140mm poles | 3371806052 | $739.44
|
| Round: for 135mm - 145mm tubes | 3371806053 | $992.73
|
| Round: for 105mm - 115mm tubes | 3371806054 | $624.73
|
| Round: for 150mm poles | 3371806055 | $889.02
|
Accessories & Common Replacement Parts |
|||||
| OFD5 Oil Flow Divider | 1801163319 | $1,202.66
|
Quick Release Coupling ½" BSP Female | 3371805133 | $118.06
|
| OFD8 Oil Flow Divider | 1801164318 | $2,098.25
|
Quick Release Coupling ½" BSP Male | 3371805134 | $83.89
|
| Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
Seal Kit | 3371820087 | $161.99
|
| Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
Remote Valve Kit | 3371821043 | $615.42
|
| Hydraulic Oil - 1 Gal | 3371807777 | $79.02
|
Accumulator Kit | 3371820050 | $467.88
|
| Label Kit | 3371821267 | QUOTE |
|||
Guide Adaptor Kits |
||
| Description | Part | Price |
|---|---|---|
| Rectangular: for IPE/Sigma/C 100mm beams | 3371806045 | $720.43
|
| Rectangular: for IPE/C 120mm beams | 3371806046 | $880.91
|
| Round: for 2.5" tubes and 70mm - 75mm poles | 3371806047 | $1,020.42
|
| Round: for 3.0" tubes and 80mm - 85mm poles | 3371806048 | $1,218.16
|
| Round: for 3.5" tubes and 95mm - 100mm poles | 3371806049 | $790.83
|
| Round: for 4.0" tubes and 105mm - 110mm poles | 3371806050 |
$1,225.63 |
| Solid Adaptor Kits |
|
|
| Round: For 4.15-4.50" tubes | 3371806054 |
$624.73 |
| Round: For 6mm Poles | 3371806055 |
$889.02 |
Hydraulic Post Drivers
| PDR 30 T | PDR 75 T | PDR 75 RV | PDR 95 T | PDR 95 RV | |
|---|---|---|---|---|---|
| Part | 1801394007 | 1801404001 | 1801405001 | 1801414001 | 1801415001 |
| Price | $2,290.00
|
$2,870.00
|
$2,870.00
|
$3,390.00
|
$3,390.00
|
| Weight with hoses (lbs) | 39 | 71 | 73 | 86 | 88 |
| Oil Flow (gpm) | 5 | 5-8 | 5-8 | 7-11 | 7-11 |
| Working Pressure (psi) | 1,160-1,450 | 1,525-2,030 | 1,525-2,030 | 1,525-1,815 | 1,525-1,815 |
| Maximum Back Pressure (psi) | 145 | 365 | 365 | 220 | 220 |
| Impact Rate (bpm) | 2,300* | 1,680** | 1,680** | 1,320** | 1,320** |
| Hydraulic Ports (thread female) (drive) | 1⁄2" BSP | 1⁄2" BSP | 1⁄2" BSP | 1⁄2" BSP | 1⁄2" BSP |
| Vibration Level 3 Axes*** (ISO 28927-10) at 20l/min (m/s2) | 17.5 | 12.8 | --- | --- | --- |
| Sound Power Level Guaranteed*** (2000/14/EC) Lw (dB(A)) | 116 | 115 | 115 | 118 | 118 |
| Sound Pressure Level*** (ISO 11203) (Lp, r=1m) (dB(A)) | 102 | 102 | 102 | 105 | 105 |
| EHTMA Class | C | C/D | C/D | D/E | D/E |
| Activation Type | Trigger Level | Trigger Level | Remote Valve | Trigger Level | Remote Valve |
| Hydraulic System | Open Center | Open Center | Open or Closed Center | Open Center | Open or Closed Center |
* Impact rate at 5gpm
** Impact rate at 8gpm
*** Full details of measurement are available in the Safety and Operating Instructions of the product.
Adaptor KitsWork with PDR30 T |
|
| Description | Part |
|---|---|
| Round Bushing 0.6" | 3371806056 $417.10
|
| Round Bushing 1.0" | 3371806057 $115.26
|
| Round Driver Head 2.4" | 3371806058 $458.41
|
AdaptorsWork with PDR75 T, PDR75 RV |
|
| Description | Part |
|---|---|
| Square - 2.1" | 3371806032 CALL |
| Universal | 3371806033 CALL |
| Round - 3.8" | 3371806034 CALL |

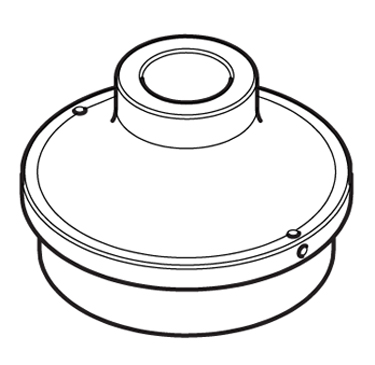

Solid AdaptorsWork with PDR95 T, PDR95 RV |
|
| Description | Part |
|---|---|
| Round: for 6" tubes and 140mm poles | 3371806052 $739.44
|
| Round: for 135mm - 145mm tubes | 3371806053 $992.73
|
| Round: for 105mm - 115mm tubes | 3371806054 $624.73
|
| Round: for 150mm poles | 3371806055 $889.02
|
Guide Adaptor KitsWork with PDR95 T, PDR95 RV |
|
| Description | Part |
|---|---|

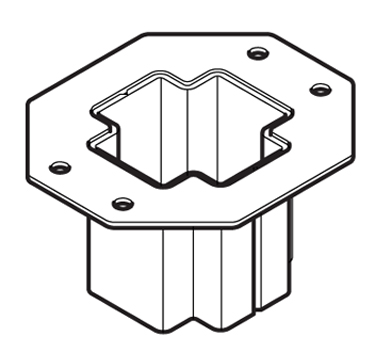

| Rectangular: for IPE/Sigma/C 100mm beams | 3371806045 $720.43
|
| Rectangular: for IPE/C 120mm beams | 3371806046 $880.91
|

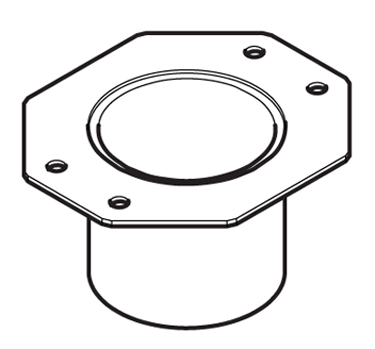

| Round: for 2.5" tubes and 70mm - 75mm poles | 3371806047 $1,020.42
|
| Round: for 3.0" tubes and 80mm - 85mm poles | 3371806048 $1,218.16
|
| Round: for 3.5" tubes and 95mm - 100mm poles | 3371806049 $790.83
|
| Round: for 4.0" tubes and 105mm - 110mm poles | 3371806050 $1,225.63
|
| Round: for 5.0" tubes and 125mm - 135mm poles | 3371806051 $1,218.00
|
