The range of CPPG portable generators provides a versatile solution. With five models, there is a generator that will suit most uses and users, from private residential applications to inner city construction sites and larger developments. All models come with the CP guarantee of reliability, durability, and ease of use. These gasoline generators deliver stable electrical output and safe, user-friendly operation over a long service life.

The day-to-day silent solution below 3kVA. When it comes to fuel efficiency, compactness and noise attenuation, CPPG Inverter are the future. The variable speed smart control, together with paralleling capability, delivers efficient power with the lowest fuel consumption, adapting engine speed to the load conditions.

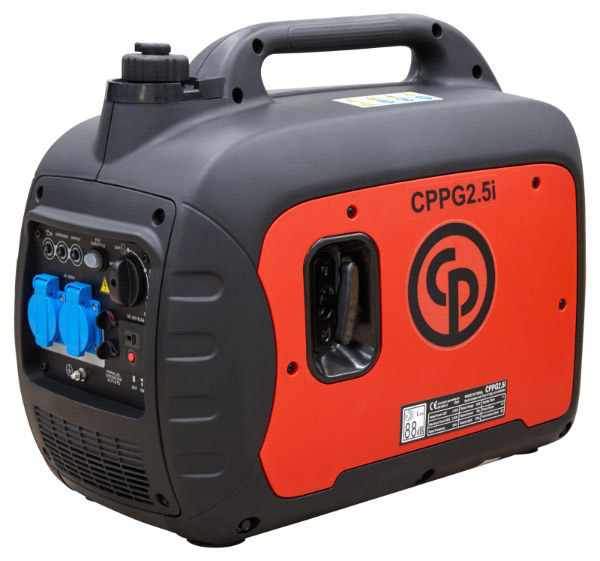

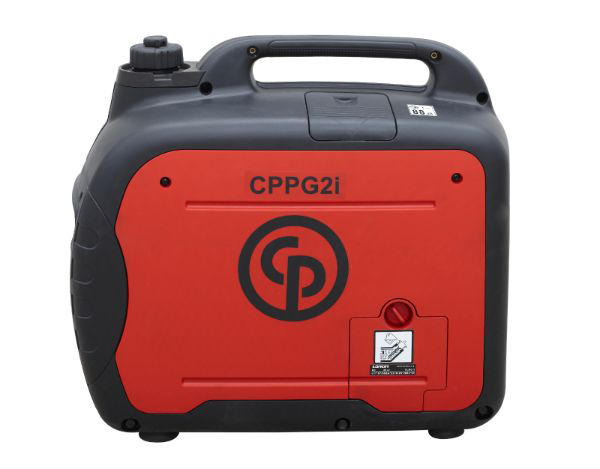

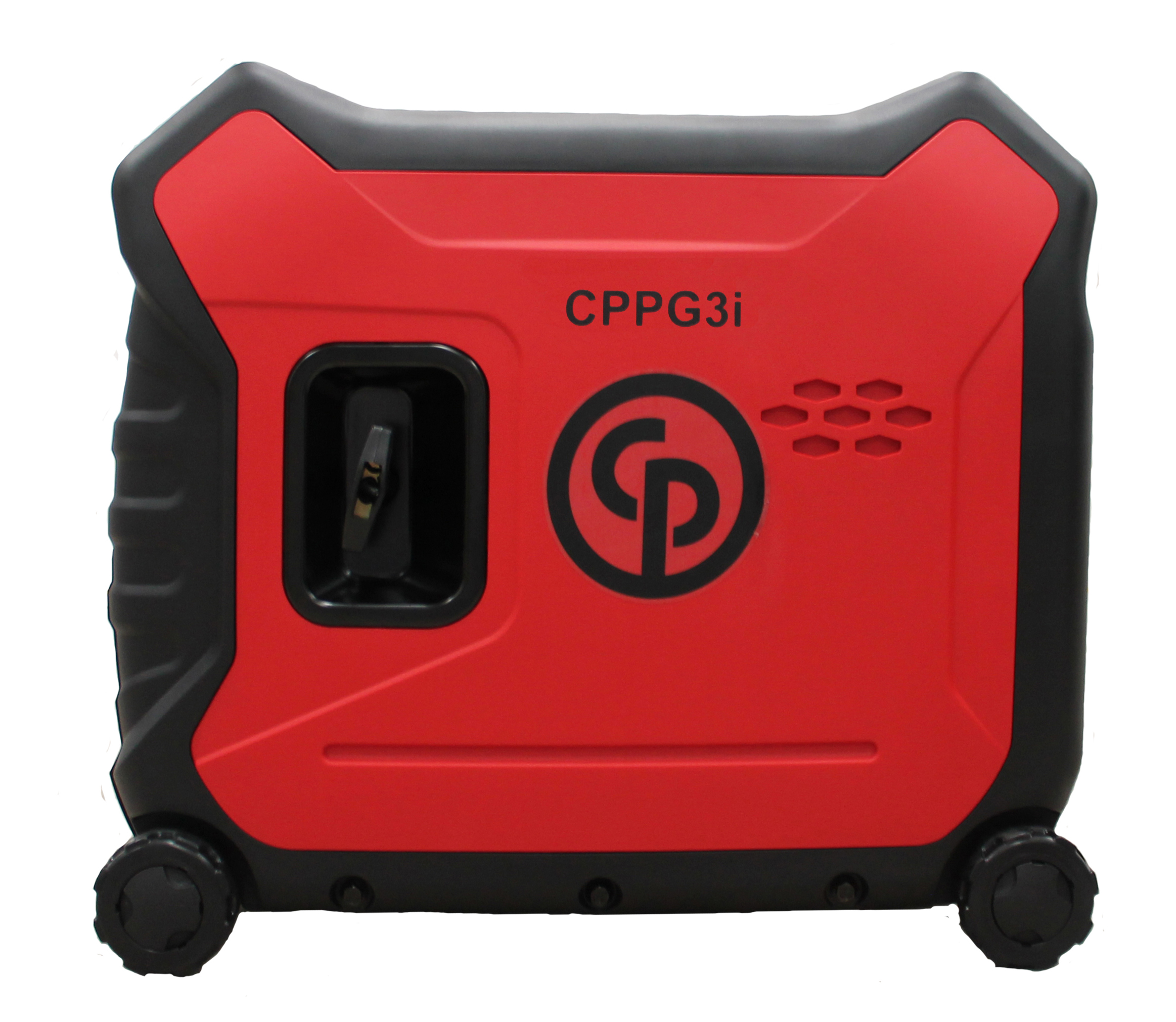

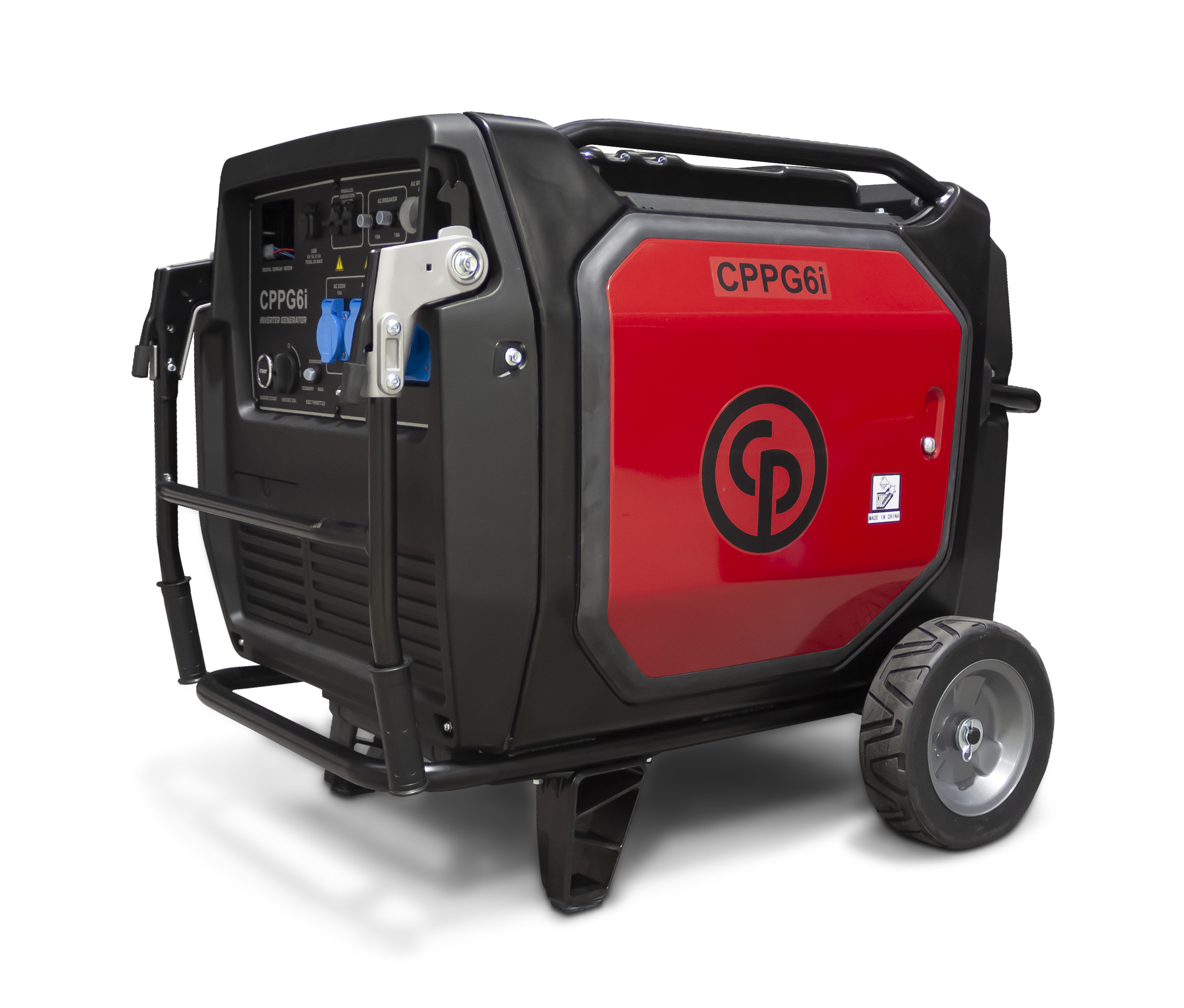

Technical Data		CPPG 2iW	CPPG 2.5iW	CPPG 3iW	CPPG 6iW
Generator Data
Rated Frequency	Hz	60	60	60	60
Rated Voltage	V	120	120	120	240/120
Nominal Power Output	kVA	1.6	2.3	3	6
Peak Power Output	kVA	1.8	2.5	3.3	7
Power Factor cos Phi		1	1	1	1
Fuel Tank Capacity	Gal (L)	1.1 (4.2)	1.05 (4)	2.64 (10)	6.6 (25)
Fuel Autonomy at Nominal Power	h	4	4	5.5	6
Socket Configuration		2 x 3P20A	2 x 3P20A 1 x TL120	2 x 3P20A 1 x 3P30A	4 x 3P20A 1 x TL120 1 x TL240 1 x 4P50A
ENGINE
Model		CP148F Gasoline	CP165F Gasoline	CP170FD Gasoline	CP190FD Gasoline
Nominal Speed	rpm	5000	3600	3600	3600
Power Output	kWm	2.4	3.2	4.4	9.2
Displacement	cm3	79	149	212	420
Starter Type		Recoil	Recoil	Electric / Recoil	Electric / Recoil
Exhaust Gas Compliant		CARB, EPA3	CARB, EPA3	CARB, EPA3	CARB, EPA3
Alternator Power	kVA	2	2.3	3	6
Sound Pressure Level (LpA) at 7m	dB(A)	65	63	63	63
Sound Power Level (LwA)	dB(A)	90	88	88	90
DIMENSIONS
Length	in (mm)	19.7 (499)	22.25 (565)	22.84 (580)	37.4 (950)
Width	in (mm)	11.2 (285)	13.35 (339)	17.32 (440)	30.1 (765)
Height	in (mm)	17.9 (445)	18.39 (467)	20.08 (510)	30.43 (773)
Weight	lbs (kg)	446.3 (21)	59.5 (27	99.2 (45)	287 (130)
Part No		8170023019	8170023374	8170023020	8170023376
		$1,210.00	$1,260.00	$1,755.00	$3,125.00
