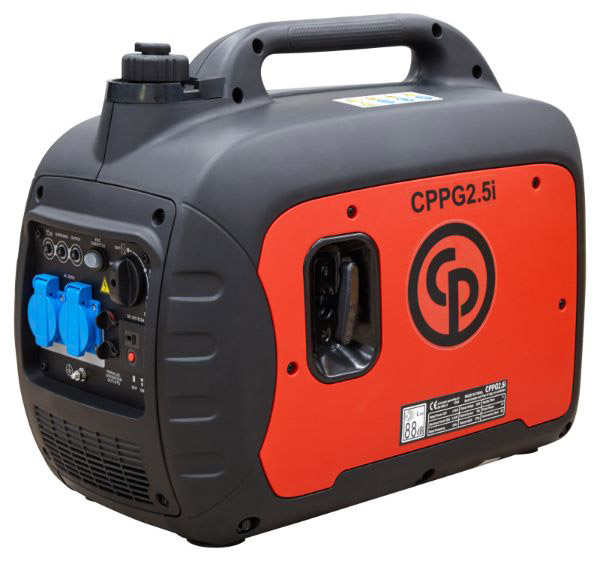

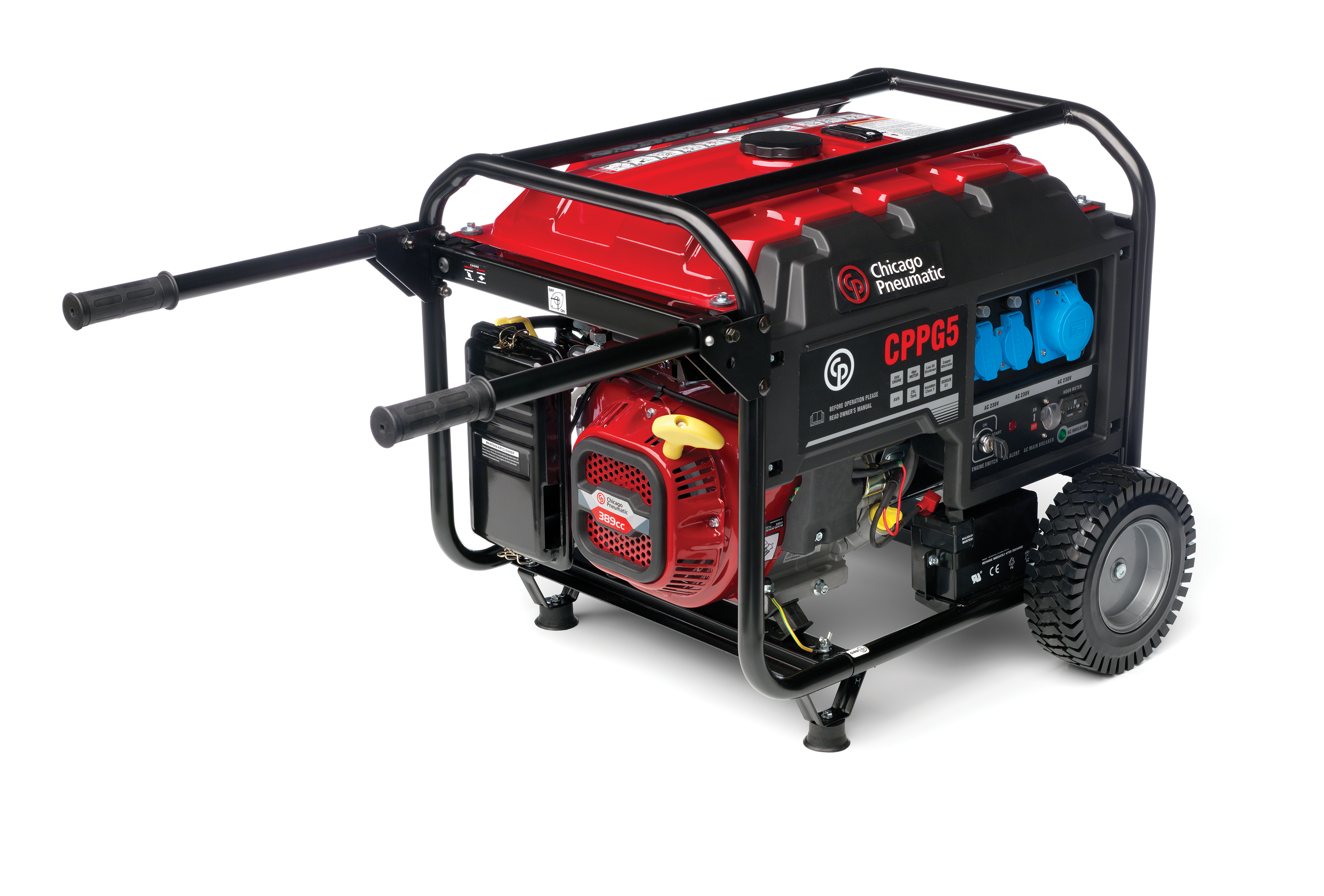

CPPG Standard Portable Gas Generators
The CPPG Standard Line offers straight forward gasoline generators with all the features you need for your occasional use built right in. They are designed to deliver stable electrical output and safe, user-friendly operation over a long service life.
 |
 |
|
||
| Technical Data | CPPG 2.5W | CPPG 5.5W | CPPG 7W | |
| Generator Data | ||||
| Rated Frequency | Hz | 60 | 60 | 60 |
| Rated Voltage | V | 240/120 | 240/120 | 240/120 |
| Nominal Power Output | kVA | 2.5 | 5 | 6.5 |
| Peak Power Output | kVA | 2.8 | 5.5 | 7.0 |
| Power Factor cos Phi | 1 | 1 | 1 | |
| Fuel Tank Capacity | Gal (L) | 4 (15) | 6.6 (25) | 6.6 (25) |
| Fuel Autonomy at Nominal Power | h | 11 | 10 | 8 |
| Socket Configuration |
2 x 3P20A 1 x TL240 |
4 x 3P20A 1 x TL240 |
4 x 3P20A 1 x TL240 |
|
| ENGINE | ||||
| Model | CP200FA Gasoline | CP390FD Gasoline | CP420FD Gasoline | |
| Nominal Speed | rpm | 3600 | 3600 | 3600 |
| Power Output | kWm | 4.1 | 8.2 | 9 |
| Displacement | cm3 | 196 | 389 | 420 |
| Starter Type | Recoil | Electric / Recoil | Electric / Recoil | |
| Exhaust Gas Compliant | CARB, EPA3 | CARB, EPA3 | CARB, EPA3 | |
| Alternator Power | kVA | 2.5 | 5.5 | 6.5 |
| Sound Pressure Level (LpA) at 7m | dB(A) | 70 | 72 | 76 |
| Sound Power Level (LwA) | dB(A) | 95 | 97 | 101 |
| DIMENSIONS | ||||
| Length | in (mm) | 23.23 (590) | 26.58 (675) | 26.77 (680) |
| Width | in (mm) | 16.93 (430) | 21.26 (540) | 21.65 (550) |
| Height | in (mm) | 18.9 (480 | 21.26 (540) | 21.65 (550) |
| Weight | lbs (kg) | 115 (52) | 174 (79) | 183 (83) |
| Part No | 8170023021 | 8170023022 | 8170023023 | |
$800.00
|
$1,715.00
|
$1,960.00
|
