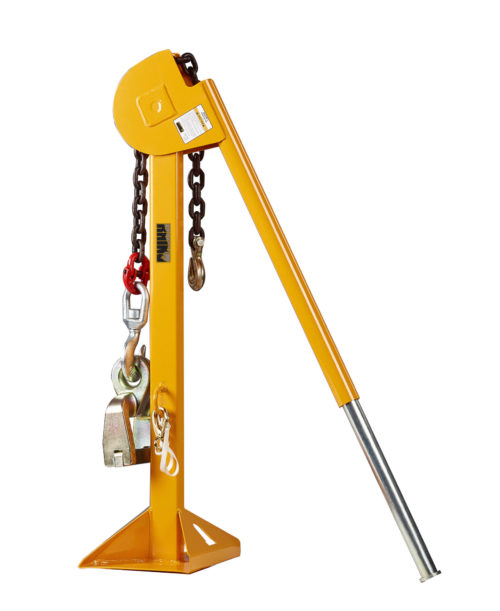

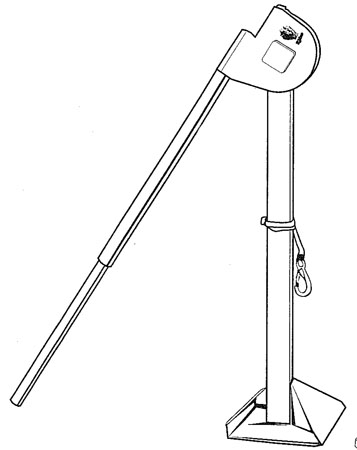

MP-3 Manual Post Puller
The MP-3 is capable of pulling the toughest posts. This puller has phenomenal strength to weight ratios. At 41 lbs, the MP-3 is easily field portable and is equipped to meet most pulling needs. The MP-3 is simple to operate and is built with high grade materials. This unit is nearly indestructible and will provide decades of service.
Made in U.S.A.MP-3 Manual Post Puller
| Item Number | Description | Price |
|---|---|---|
| 71012 | MP-3 Manual Post Puller Includes Chain Assembly and Post Grabber |
$1,152.00 Add |
| 71013 | MP 3 Manual Post Puller only | $754.00 Add |
Accessories
| Item Number | Description | Price |
|---|---|---|
| 71040 | Post Grabber | $474.03 Add |
| 71041 | Panel Post Grabber | $112.21 Add |

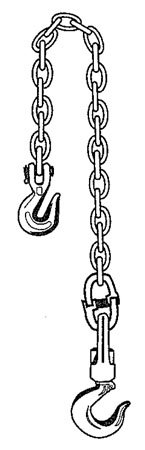

| 220422 | Chain Assembly | $208.39 Add |
| 71042 | Tent Stake Puller | $98.00 Add |
Specifications
Model: MP-3 Manual Post Puller
Model Number: 071012
Height: 41" (1.04m)
Base: 9-1⁄2" x 12" (241 x 304mm)
Handle Length: 60" (1.52m)
Weight: Approx. 41lbs (18.71kg)
- With a Panel Post Grabber, pulls a 1-5⁄8" line post
- Pulls a 1-5⁄8" line post, 3 ft deep
- Pulls a 4"x4" wood post, 3 ft deep
Directions
Step 1: The Post Grabberis removed from its storage postion and placed around the post. The puller is set with its base next to the post, the handle extended, and the hook removed from its carry position.
Step 2: The chain is placed into the two position chain receiver - first notch for speed/second notch for power - then hooked to the Post Grabber.
Step 3: The operator ataches the safety restraint to the chain, then pulls the post.
Step 4: After pulling the post, the MP-3 is returned to its carrying configuration. With the Post Grabber and chain locked in place, the MP-3 is ready to pull the next post.
