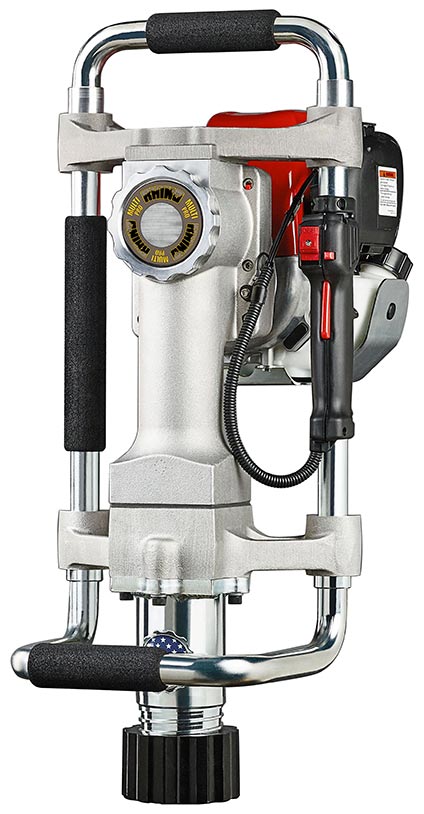

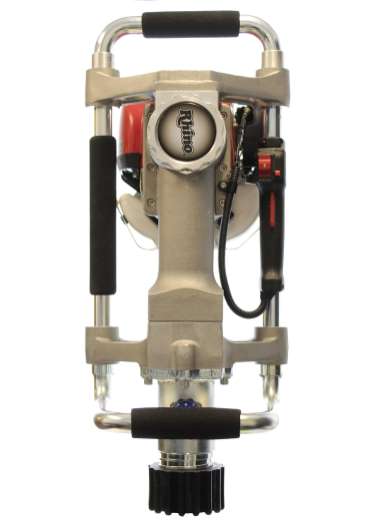

Rhino Multi-Pro Gas Post Driver
- Powered by a reliable Honda GX35 4-cycle engine and engineered to drive larger posts and the versatility to take on more post driving applications.
- Fast and Powerful with 35% more driving power than the Ranch Pro.
- Equipped with Rhino’s CIS™ Vibration Dampening - Keep working longer.
- Made in U.S.A.
- Free Ground Shipping within Continental United States.
Please contact us at 888-883-5144 if you have any questions and we will be happy to assist you.
Multi-Pro
Post Driver
Powerful & Versatile - includes 1", 1-3⁄4", and 2" Adaptors
| 301002 $2,745.00 Add |
XA
Multi-Pro
Comes standard with Rhino Extended Anvil and Longer 2.5" ID Master Chuck
| 301003 $2,950.00 Add |
Tent Stake Driver
This driver is best suited to primarily drive tent stakes.
| 301012 $3,080.00 Add |

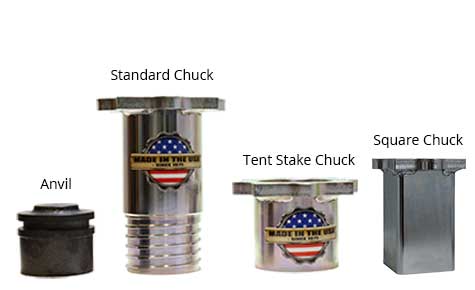

Multi-Pro Chucks

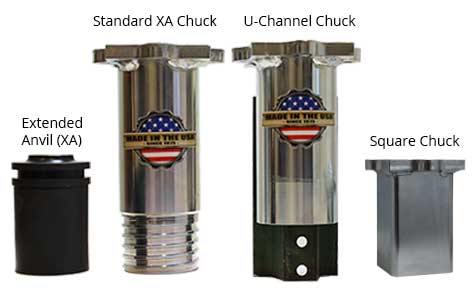

Multi-Pro XA Chucks
Extended Anvil (XA) for driving Channel Post as well as standard posts.
Rhino Multi-Pro Gas Post Driver
| Part | Description | Price |
|---|---|---|
| 301002 | Multi-Pro Post Driver Comes with 1", 1-3⁄4", and 2" Chuck-Lok™ Adaptors |
$2,745.00 Add |
| 311002 | Multi-Pro Post Driver with NEW Transport Case Comes with 1", 1-3⁄4", and 2" Chuck-Lok™ Adaptors |
$2,945.00 Add |
- Larger machine with 35% more pounding power than the Ranch Pro.
- Two-piece adapter design allows quick removal of driver from the post.
- Includes Chuck-Loc 1", 1-3/4" and 2" Adaptors for wide widths of posts.
- Versatile external chuck design can be configured for driving 1.2-4 lb channel post, tent stake, or 1-3/4″ to 2-1/2″ square sign post and square post sign anchor with a drive cap and optional adaptors.
- Quick change chuck is designed to receive the Chuck-Lok™ Adaptor System and be quickly removed when changing accessories.
- Powered by reliable Honda GX35 4-Cycle Engine.
- Shock resistant heat-treated steel components.
- Sealed bearings on all rotating parts.
- Equipped with Rhino’s CIS™ Vibration Dampening.
- Padded grip for handling comfort.
- Made in the U.S.A.
- Rhino Lifetime Impact Warranty. See warranty statement for details.

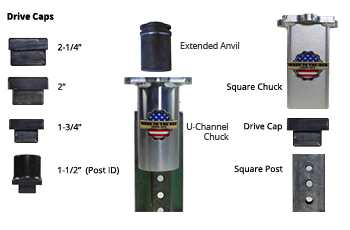

Multi-Pro Municipality Drive Kit
| Description | Part | Price |
|---|---|---|
| Multi-Pro Municipality Drive Kit Includes: Square Anchor Chuck, All Drive Caps (1-3/4", 2", 2-1/4", 2-1/2"), U-Channel Chuck, Extended Anvil
|
301185 | $1,142.71 Add |

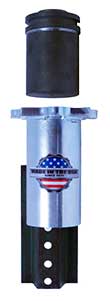

Multi-Pro U-Channel Drive Kit
See Multi-Pro XA
| Description | Part | Price |
|---|---|---|
| Multi-Pro U-Channel Drive Kit Includes: U-Channel Chuck and Extended Anvil
|
301175 | $342.36 Add |

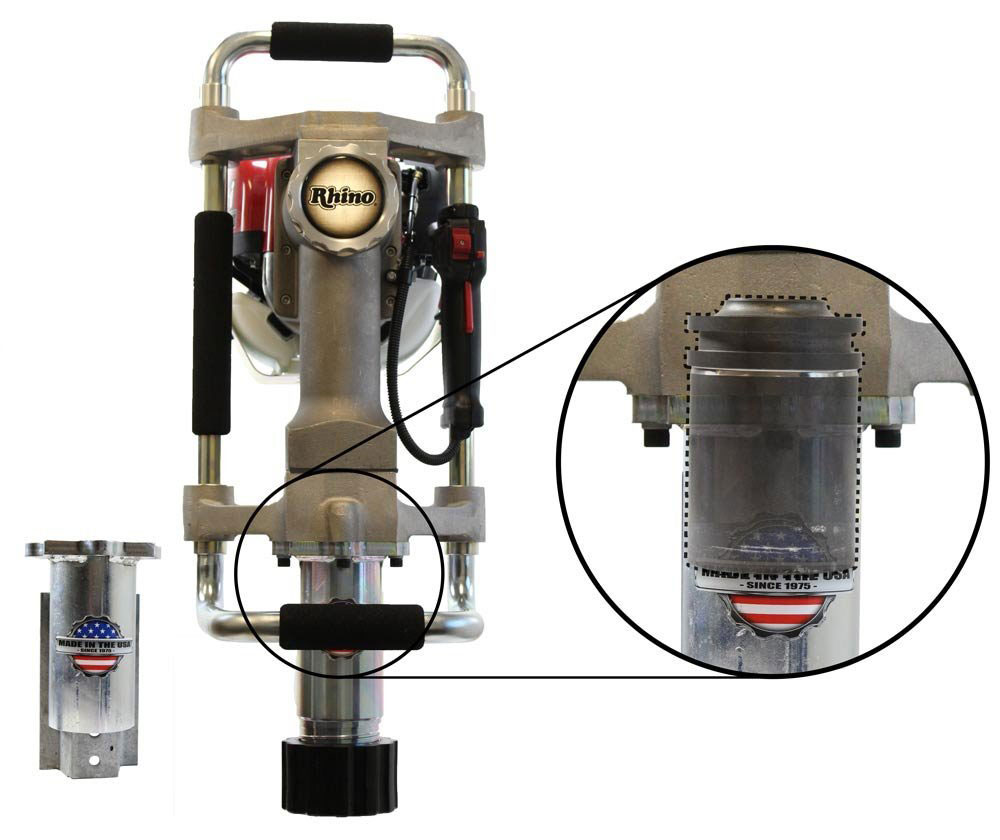

Multi-Pro XAU
With U-Channel Chuck
For Municipalities and Traffic Safety Sign Installation
The Multi-Pro™ XA Channel Post Driver is perfect for public works departments and highway safety sign contractors to install traffic sign posts quickly without the need for heavy equipment.
- All standard features of Multi-Pro XA Post Driver.
- Comes standard with Multi-Pro™ XA Channel Post Chuck.
- Easily Drives Square and U-Channel Posts.
- Accommodates the most frequently driven municipal sign post.
- Drives in multiple soil types and tough or frozen ground.
- Safer than hammers.
- Equipped with Rhino’s CIS™ Vibration Dampening.
- Padded grip for handling comfort.
- Made in the U.S.A.
- Rhino Lifetime Impact Warranty. See warranty statement for details.
XAU
| Description | Part | Price |
|---|---|---|
| Multi-Pro XAU Comes with a U-channel chuck. |
301007 | $2,865.00 Add |
| Multi-Pro XAU with NEW Transport Case Comes with a U-channel chuck. |
311007 | $3,065.00 Add |
XAU with Top Throttle
| Description | Part | Price |
|---|---|---|
| Multi-Pro XAU with Top Throttle | 301014 | $3,080.00 Add |
| Multi-Pro XAU TT with NEW Transport Case Comes with a U-channel chuck. |
311014 | $3,280.00 Add |
Multi-Pro XA
The Multi-Pro™ XA Gas Post Driver is the most versatile driver in the Rhino™ Pro-Series line of gas post drivers. From T-post to large wood posts, the Multi-Pro™ XA can be adapted to handle a wide range of post diameters and materials without needing to change the anvil. Only a chuck change is required depending on the type of post installation.
- Comes standard with Rhino™ Extended Anvil and Longer 2.5” ID Master Chuck
- Includes Rhino™ Chuck-Lok™ 1″, 1-3/4″, 2″ Adapters
- Rhino™ Tension-Grip crankcase cover provides tool-free removal for ease of lubricant application
- Quick change chuck is designed to receive the Chuck-Lok™ Adapter System and be quickly removed when changing accessories
- Two-piece adaptor design allows quick removal of driver from the post
- Equipped with Rhino’s CIS™ Vibration Dampening
- Padded grip for handling comfort
- Powered by Honda™ GX35 4-Stroke Engine
- Shock resistant heat-treated steel components
- High-grade virgin aluminum cast body
- Double sided, sealed bearings on all rotating parts
- Removable bottom handle
- Made in the U.S.A.
- Rhino Lifetime Impact Warranty. See warranty statement for details
The pictured Channel Chuck and Short Chuck are available for separate purchase.
Multi-Pro XA Municipality Drive Kit
| Description | Part | Price |
|---|---|---|
| Multi-Pro XA Municipality Drive Kit Includes: Square Anchor Chuck, All Drive Caps (2", 2-1/4", 2-1/2"), U-Channel Chuck
|
301190 | $1,017.91 Add |

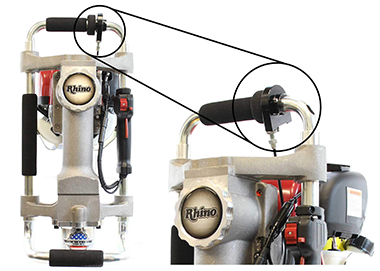

Multi-Pro Tent Stake Driver
The Tent Stake Driver is a Multi-Pro driver with the tent chuck and top throttle already installed. The convenience offered by the top throttle allows less bending for the installer while driving tent stakes, sign bases, and other applications driven into the ground.
| Description | Part | Price |
|---|---|---|
| Multi-Pro MPT Comes with a tent stake chuck and top throttle installed, plus 301509 - Service Kit without O-Ring Cup (50 hr.) |
301012 | $3,080.00 Add |
| Multi-Pro MPT with NEW Transport Case | 311012 | $3,280.00 Add |
Multi-Pro Series Accessories
Accessories & Replacement Parts
| Name | Application | Part | Price |
|---|---|---|---|

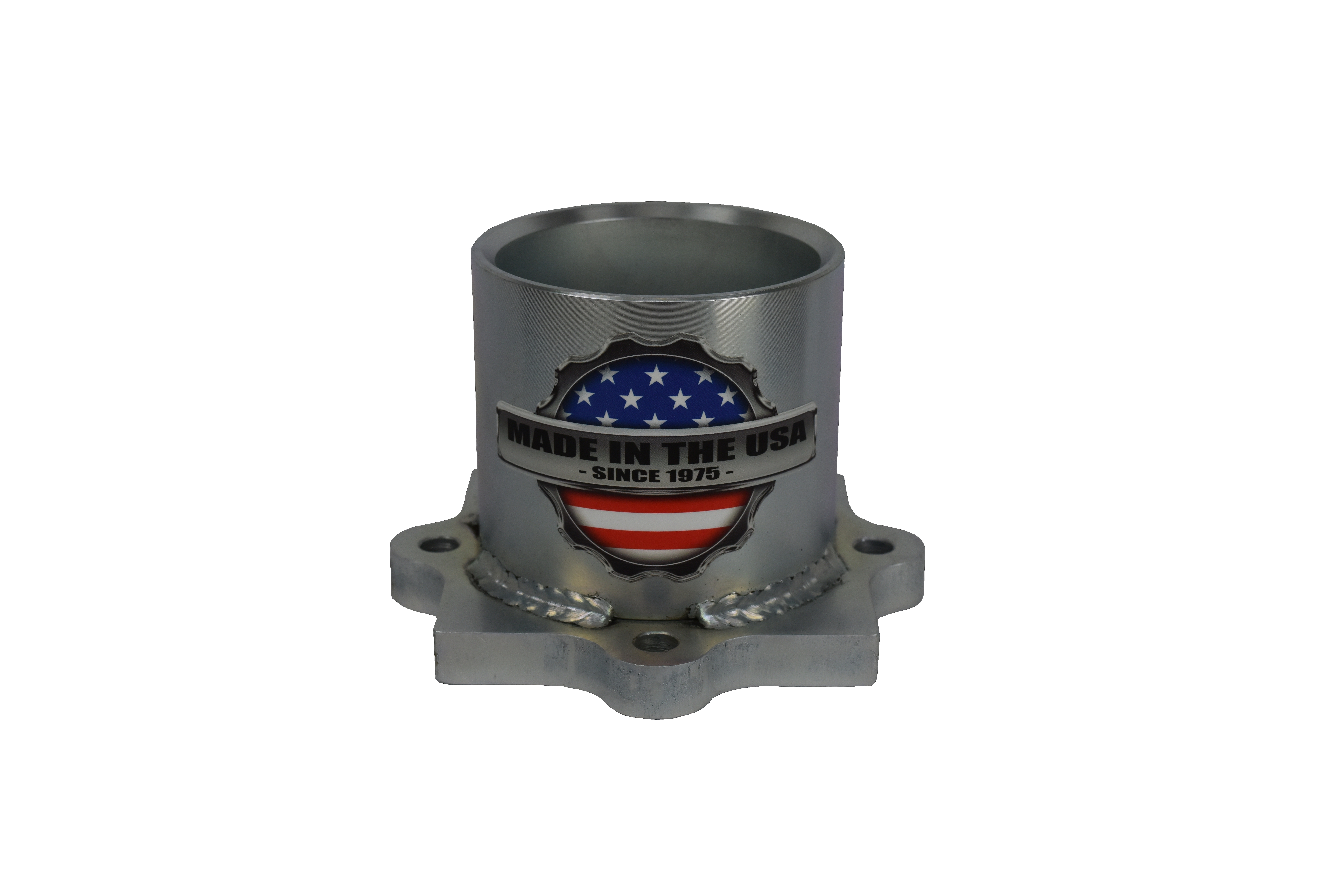

| Tent Stake Chuck Tube 2.7" (ID) | Tent Stake | 301155 | $175.19 Add |

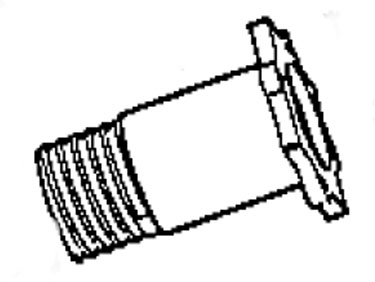

| XA Extended Master Chuck | T-Post | 301420 | $223.28 Add |
Included With Standard Multi-Pro Drivers
| Name | Application | Part | Price |
|---|---|---|---|
| Standard Chuck | 301158 | $170.11 Add | |
| 1" Chuck Sleeve |
Ground Rod | 300900 | $40.19 Add |
| 1-3⁄4" Chuck Sleeve Color: Green  |
T-Post | 300895 | $40.19 Add |
| 2" Chuck Sleeve Color: Black  |
T-Post | 300902 | $40.19 Add |
| Chuck-Loc™ System Locking Nut | 301920 | $48.35 Add |
Transport Cart
- Easily transport your driver and adaptors to job locations
- Includes pouch that holds adapters
| Name | Part | Price |
|---|---|---|
| 290050 | GPD Transport Cart | $454.00 Add |

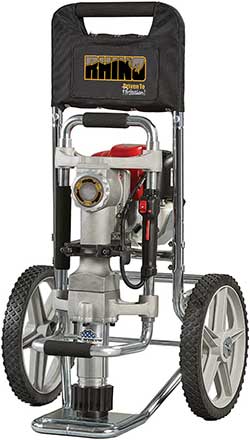

GPD Transport Cart
(Driver not included)

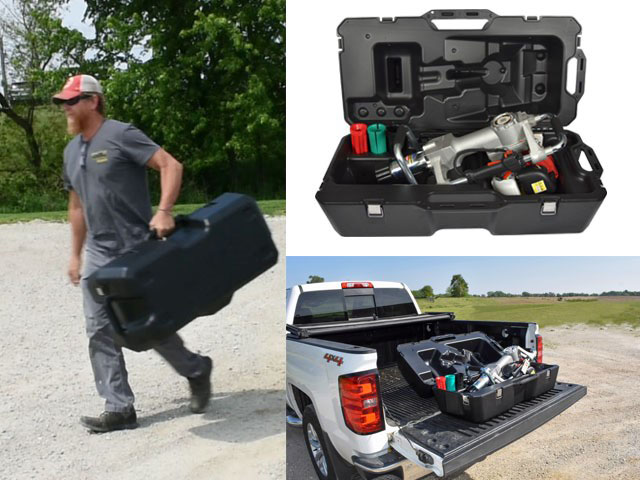

NEW Transport Case
- High-density, double wall construction
- Molded interior fits all Rhino Pro Gas Post Driver models
- Secure, durable metal latches and hinges
| Name | Part | Price |
|---|---|---|
| 301500 | NEW Transport Case for Pro Series Drivers | $225.00 Add |
Transport Case

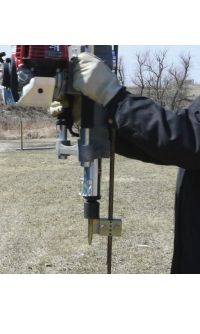

Ground Rod Tools
| Name | Part | Price |
|---|---|---|
| 300940 | Ground Rod Installation Tool Kit with Drive Cap | $342.46 Add |
| 300943 | Ground Rod Installation Tool (only) | $232.44 Add |
| 300944 | Ground Rod Installation Tool Drive Cap | $109.92 Add |

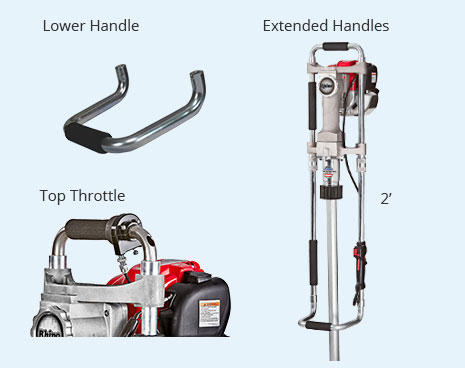

Driver Handles & Top Throttle
| Name | Part | Price |
|---|---|---|
| 301233 | CIS Lower Handle Assembly (Included with Multi-Pro) |
$48.65 Add |
| 301250 |
GPD Extended Handle Kit - 2' long Post Driver is not included |
$218.70 Add |
| 301252 |
GPD Extended Handle Kit - 4' 6" long Post Driver is not included |
$234.73 Add |
| 301600 | Top Throttle Kit | $255.19 Add |
Maintenance
| Part | Description | Price |
|---|---|---|
| 300500 | **Rhino Formula Grease (10 hr. grease) | $11.45 Add |
| 300500-4 | Rhino Formula Grease (10 hr. grease) 4-Pack | $45.80 Add |
| 300506 | **Rhino Formula Grease (10 hr. grease) 12-Pack | $117.36 Add |
| 301509 |
50 Hour Service Kit
|
QUOTE Add |
| 301525 |
50 Hour Service Kit
|
$55.10 Add |
| 301096 |

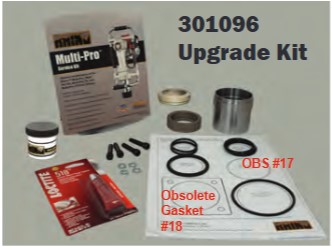

Upgrade Kit for "Gasket-less" Design
|
$184.15 Add |
** The Multi-Pro uses SAE 10W-30 Engine Oil and Rhino SynLube Grease.

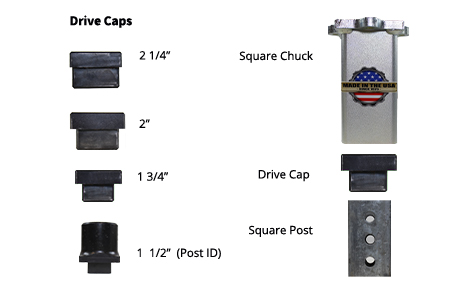

Multi-Pro and Multi-Pro XA Square Accessories
| Description | Part | Price | |
|---|---|---|---|
| Square Anchor Chuck | 301425 | $175.19 Add | |
|
Square Anchor Chuck Required for Drive Caps
|
|||
| 1-3/4" Square Anchor Drive Cap (for 1/2" ID Posts)* | 300957 | $218.70 Add | |
| 2" Square Anchor Drive Cap (for 1-3⁄4" ID Posts)* | 300958 | $218.70 Add | |
| 2-1⁄4" Square Anchor Drive Cap (for 2" ID Posts)* | 300959 | $218.70 Add | |
| 2-1⁄2" Square Anchor Drive Cap (for 2-1⁄4" ID Posts)* | 300960 | $218.70 Add | |
|
* Requires 301425 Square Chuck. Old style Square Chuck and drive caps available below.
|
|||
Multi-Pro Municipality Drive Kit
| Description | Part | Price |
|---|---|---|
| Multi-Pro Municipality Drive Kit Includes: Square Anchor Chuck, All Drive Caps (2", 2-1/4", 2-1/2"), U-Channel Chuck, Extended Anvil
|
301185 | $1,142.71 Add |

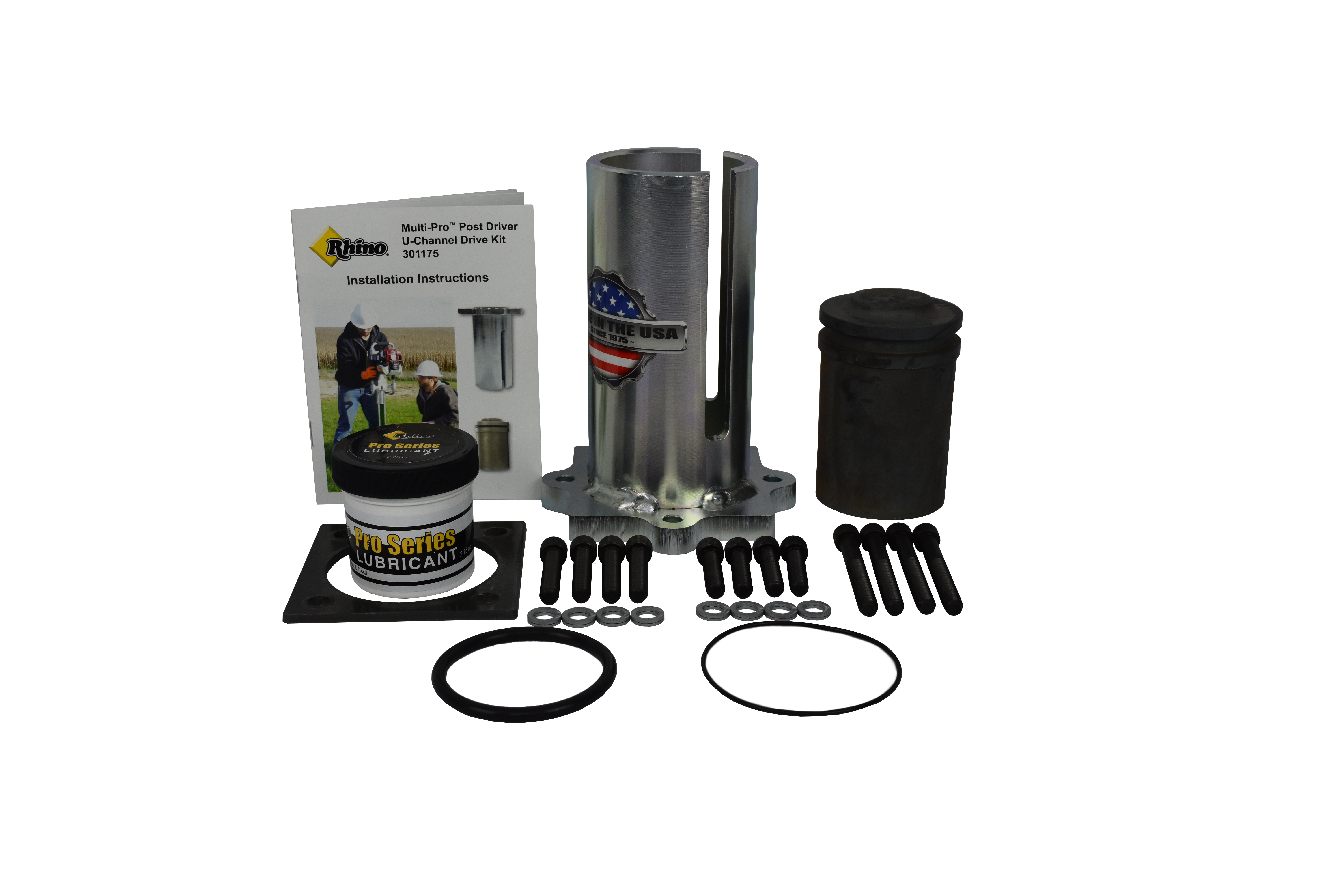

Multi-Pro U-Channel Drive Kit
See Multi-Pro XA
| Description | Part | Price |
|---|---|---|
| Multi-Pro U-Channel Drive Kit Includes: U-Channel Chuck and Extended Anvil
|
301175 | $342.36 Add |
| Description | Part | Price |
|---|---|---|

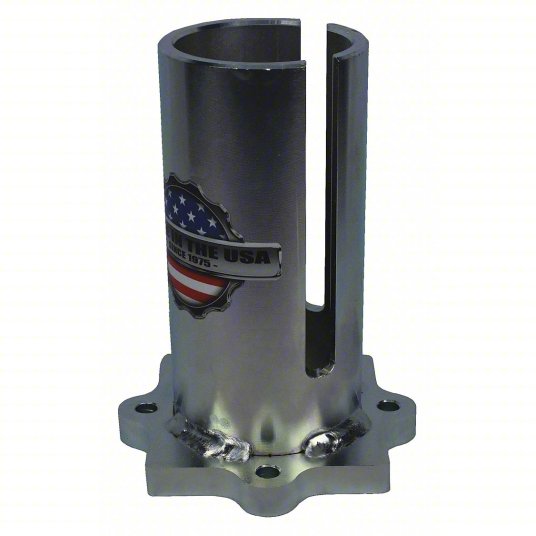

| U-Channel Chuck | 301159 | $180.85 Add |
| Extended Anvil | 301169 | $175.19 Add |
Multi-Pro XA Accessories
Large Wood Post Driving
| Description | Part | Price |
|---|---|---|
| Recommended for wood post in light to moderate conditions only ** Requires Multi-Pro XA driver and Large Adapter Plate |
||

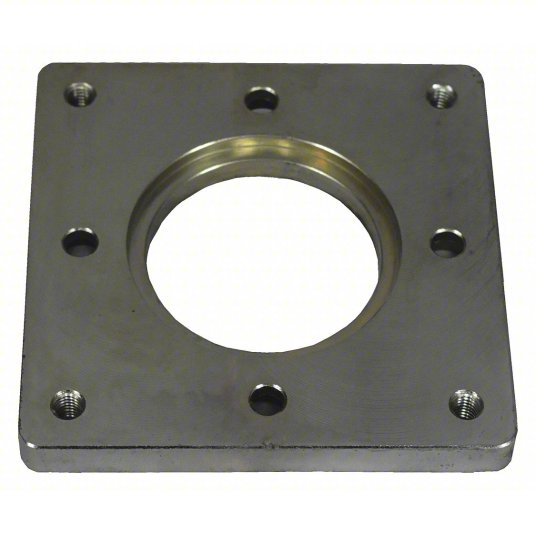

| Large Adapter Plate Required for following chucks |
301400 | $81.30 Add |

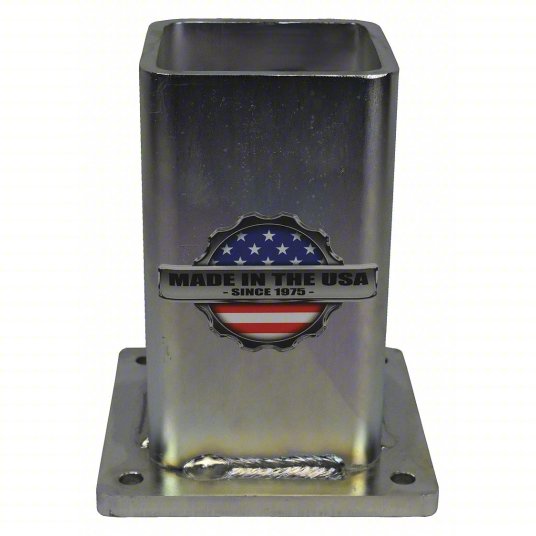

| 3" Square Chuck ** | 301415 | $188.93 Add |

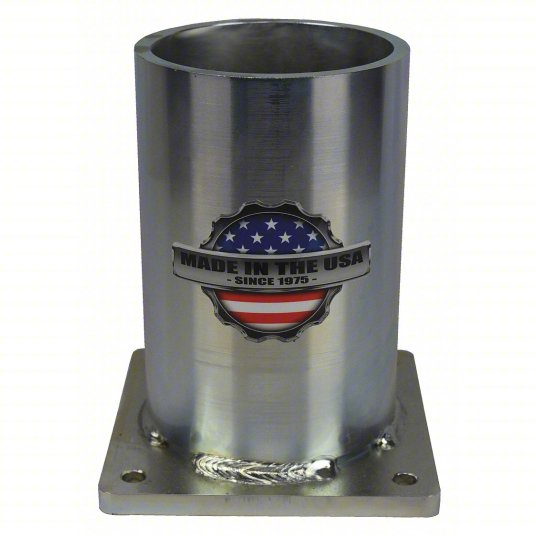

| 3-1⁄2" Round Chuck ** | 301403 | $188.93 Add |
| 4" Round Chuck** | 301405 | $188.93 Add |
Additional Information
Specifications
Part No.: 301002
Overall Dimensions (in): 26 x 10-3⁄4 x 17
Weight (lbs): 44
Chuck ID (in): 2-1⁄2
Post Size (in): 2-3⁄8
Power: 4-stroke, 35.8 cc
Performance (BPM): 1720
Fuel: Regular unleaded gas
Fuel Capacity: 0.67 qt.
Engine Oil: SAE 10W-30
Grease: RHINO® Pro Series Lubricant
Oil Fill Procedure
Service Kit Installation
Lubricant Levels

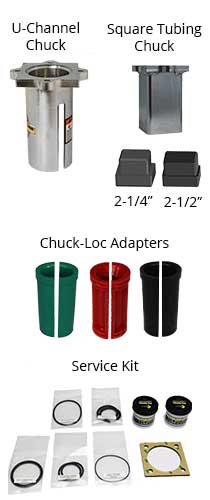

Rental Pro Kit
The Rhino® Rental Pro Kit™ was designed to meet the demands of rental customers and create the revenue expected by rental store owners. The kit assembles the most commonly used adaptors, chucks and drive caps used to drive t-post, fence posts, pipe, tube and channel being driven into a variety of soil types. The bolt on chuck allows the Rental Pro kit to adapt to many different post shapes and sizes.
| Rental Pro Kit | 301951 | $4,180.00 Add
Please Contact Us for distributor pricing. |
Features:
- Powerful Multi-Pro XA to drive U-Channel and wide variety of posts.
- Honda GX35 4 stroke engine eliminates need to mix gas.
- Accommodates the most frequently driven municipal sign posts.
- Square chuck with 2 drive caps for square tube break away sign posts, 2-1⁄4" and 2-1⁄2".
- The Rhino Chuck Lok™ system includes 1", 1-3⁄4" and 2" adaptors that allow the operator to quickly adjust to drive different post sizes in the field.
Includes:
- Multi-Pro XA Post Driver, with Adapter Sleeves (1", 1-3/4" and 2")
- Transport Cart
- U-Channel Chuck
- Square Chuck and 2 Drive Caps (2-1/4" and 2-1/2")
- 50 Hr. Service Kit
