Hydraulic Power Packs

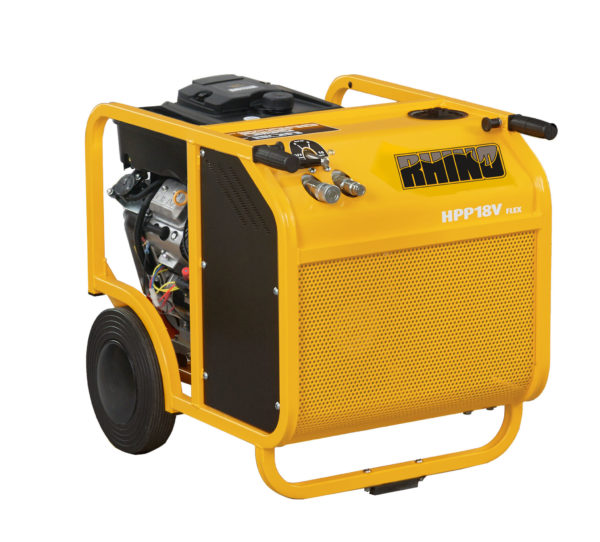

HPP 18V
Hydraulic Power Packs
| Part | Description | Price |
|---|---|---|
| 801230 | HPP 14 | $6,378.00 Add |
| 801214 | HPP 18V | $8,376.00 Add |
Accessories
| Part | Description | Price |
|---|---|---|
| 801226 | Hydraulic Extension Hose (20') | $452.28 Add |
| 801227 | Hydraulic Extension Hose (30') | $664.10 Add |
HPP 14
Rhino™ Hydraulic Power Packs are the power source companions for Rhino’s hydraulic tools. Rhino™ HPPs are designed for professional users who expect maximum operating time, low service cost and durability. The Rhino™ HPP 14 Flex™ has an adjustable flow to supply a wide range of attachable tools.
The Rhino™ HPP 14 Flex™ is equipped with the Vanguard 400 14 Hp (gross power) 4-stroke petrol engine with 3 year global manufacturer’s warranty. The Vanguard engine is efficient, powerful and has a built-in run safe feature that switches off the engine if the oil runs low.
An innovative cooling fan, found on all Rhino Hydraulic Power Packs, greatly reduces the chance of overheating.
Long run times between required maintenance intervals, keeps your crew on the job.
The units are easy to operate, provide more power and lower fuel consumption.
Durable, compact bodies, lightweight frames, wheels, and pull-out handles make them easy to transport.
- Made in U.S.A.
Typically $250-$500 LTL Shipping
LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to residential addresses will be higher.
Specifications
| HPP 14 | HPP 18V | |
|---|---|---|
| Part No. | 801230 | 801214 |
| Standard Equipment | Hand Start, Adjustable Flow, Direct Pump Driven Air-Fan Oil Cooler, Engine Oil Level Switch, Oil-filter with Bypass Protection, Quick Connect Couplings | Hand Start, Adjustable Flow, Direct Pump Driven Air-Fan Oil Cooler, Engine Oil Level Switch, Oil-filter with Bypass Protection, Quick Connect Couplings |
| Weight, lb | 178 | 232 |
| Dimensions LxWxH, in | 28 x 23.4 x 26.4 | 31.7 x 24.6 x 27.4 |
| Oil flow, gpm | Adjustable Control Lever, 5-8 | Adjustable Control Lever, 5-8-10 |
| Max. pressure, psi | 2200 | 2300 |
| Nominal pressure, psi | 1750 | 1750 |
| Engine | Honda GX 390 13 HP Gasoline | Briggs and Stratton Vanguard 18 HP Gasoline |
| Fuel Tank Size, gallon | 1.7 | 2.3 |
| Starter | Recoil | Recoil and Electric |
