Pneumatic Rock Drills





Lightweight drill/chipper

Choosing a Rock Drill

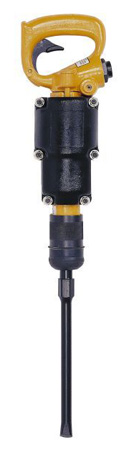

The DKR 36 is a lightweight, versatile machine designed for use on construction sites and in stone-cutting shops.
This powerful, compact drill/chipper is the perfect choice for drilling plug holes from 516" to 1 18" in diameter and up to 12" in depth in concrete floors, walls, and roofs for pipe, cable and ventilation duct installation.  The DKR 36 is also used in drilling wedge holes for rock splitting.

Chipping and scaling

The DKR 36 is also a highly efficient tool for general chipping and scaling work.  Changing from a drilling steel to a chipping tool automatically switches the tool to the chipping function.  The DKR 36 has a built-in lubricator for easy maintenance, and a quick-coupling hexagonal or cylindrial chuck that ensures rapid, simple tool change.

Part Number  Description  Shank Size (in)
Weight
(lb)
Length
(in)
Air Consumption(cfm)
Impact Frequency (blows/min)  Rotation Speed (rpm) Penetration Rate (in/min) Hose Connection (in) Price
AC-8463010350 DKR36R 34 x3 14 R 10 14 34 21.3 2820 250 7.1 34 $1,105.00
3315130800 Repair Set - Steel Retainer Ball (4) and Locking Ring $40.24
Spare Parts List                Safety and Operating Instructions


Light rock drills

Combining power and maneuverability - The lightweight BBD 12 hand-held rock drill is the perfect partner in a wide variety of applications where maneuverability and easy handling are important.  Available in two models, one for horizontal drilling and one for vertical-down drilling, the BBD guarantees powerful, reliable and flexible operation.
Equipped with a D-type handle, the BBD 12D is ideal for horizontal drilling, plug hole drilling, and drilling concrete to a maximum depth of 3 feet.
For vertical-down drilling to 10 feet in depth, Atlas Copco offers the BBD 12T, fitted with a T-type handle, slightly angled to provide the best grip.  The BBD 12T is perfect for concrete driling, drilling for smooth blasting, and seam driling.  All BBD models are equipped with kick-latch type drill-steel retainers for quick and easy steel changing.
Part Number  Description  Shank Size (in)
Weight
(lbs)
Length
(in)
Air Consumption (cfm)
Impact Frequency (blows/min) Rotation Speed (rpm) Penetration Rate (in/min) Hose Connection (in) Price
Horizontal
AC-8311010247 BBD 12D 34 x 4 14 22 22 14 51.1 2580 220 10 58 $2,550.00

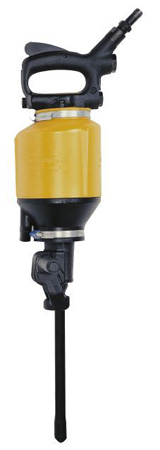

AC-8311010280 BBD 12DS Silenced 34 x 4 14 24 22 14 46.9 2520 220 8 58 $2,680.00

Vertical-Down

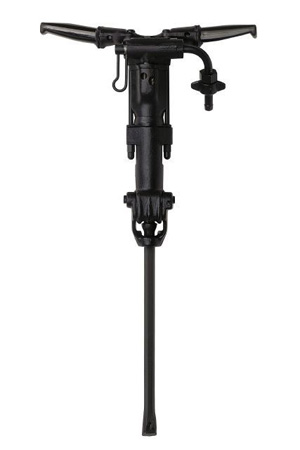

AC-8311010295 BBD 12T-01 78 x 4 14 24 20 51.1 2580 220 6 58 $2,550.00
AC-8311010298 BBD 12TS-01 Silenced 78 x 4 14 27 20 46.9 2520 220 6 58 $2,760.00
9030206400 Rubber Hose with Coupling and Clamp $93.10
8092011059 VAM 01 Water Seperator $267.83
3111006600 Drill Chuck - 78 x 4-14 $183.24

MEDIUM-WEIGHT ROCK DRILLS

Power that's easy to handle

The high power-to-weight ratios and compact, versatile designs of the RH 57 and RH 658 rock drills enable simple positioning and easy handling.  And their high penetration rate means you get the job done quickly, for maximum productivity.
RH drills are designed for bench drilling, secondary drilling, and drilling for smooth blasting.  Because of its light weight, the RH 571 is most suited for smaller jobs.  The more powerful, and slightly heavier RH 658 provides a higher drilling rate and can handle depths up to 20 feet.

Extra flushing and kick-latch retainers

The extra flushing air valve is a special feature that provides simple, rapid cleaning of the drill hole for increased operational efficiency. To simplify the changing of drill steels, the drills are designed with a robust kick-latch type retainer that locks the drill steel into position.  Both machines have rifle-bar rotation, with slower rotation and high impact energy, perfect for drilling in hard rock.  They are also equipped with T-handles for a solid, comfortable grip.
Part Number  Description  Shank Size (in)
Weight
(lbs)
Length
(in)
Air Consumption (cfm)
Impact Frequency (blows/min) Rotation Speed (rpm) Penetration Rate (in/min) Hose Connection (in) Price

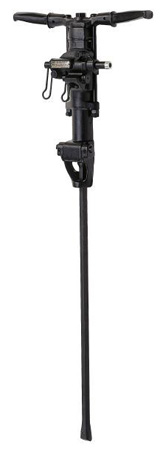

AC-8311030129 RH 571-5L 78 x 4 14 39 20 83 2100 190 11 58 34 CALL
AC-8311030137 RH 571-5LS 78 x 4 14 42 20 83 1980 190 10 78 34 CALL

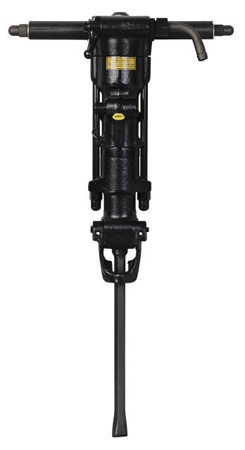

AC-8311030286 RH 658L 78 x 4 14 53 22 14 123.5 2040 215 16 34 34 CALL
AC-8311030289 RH 658L 1 x 4 14 53 22 14 123.5 2040 215 16 34 34 CALL
AC-8311030287 RH 658LS 78 x 4 14 55 22 14 123.5 2040 215 16 34 CALL
9030206500 Rubber Hose with Coupling and Clamp $104.54
8092011059 VAM 01 Water Seperator  $267.83
3115154300 34" Hose Nipple  $10.89
9030204700 Rubber Hose with Coupling and Clamp for RH 658 Drills $123.42
3121002301 Rotation Chuck and Bushing - Oversized for RH 658 Drills  $32.75
3100847881 Piston and Rifle Nut - Oversized for RH 658 Drills  CALL
 Safety and Operating Instructions

ERGONOMIC ROCK DRILLS

For improved safety and increased productivity

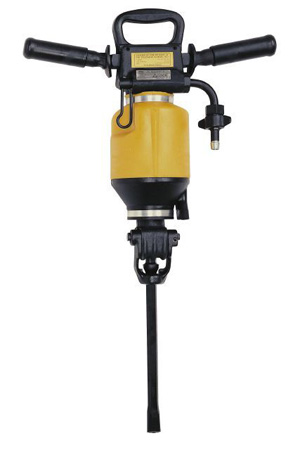

The ergonomically designed BBD 15E and RH 572E, medium-weight rock drills with very high power-to-weight ratios, provide optimum operational safety and productivity.  These low-maintenance drills have high impact energy in relation to weight, and ergonomic features that improve operator comfort.

Reduced noise and vibration levels

The BBD 15E and RH 572E are equipped with spring-dampened handles and highly effective silencers.  The result is reduction in vibration levels transmitted to the operator's hands by more than 75%, and reduction of low-frequency noise levels by 7 dB(A), or more than 50%.  Operator fatigue is minimized, raising productivity.

Choose the right machine

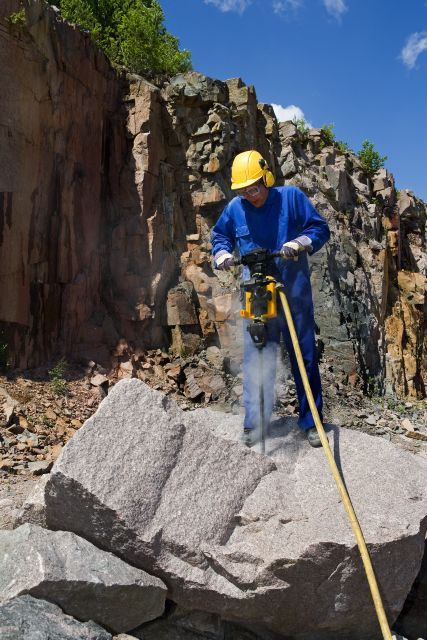

The RH 572E has rifle-bar rotation, with slower rotation and lower impact frequency, for drilling in hard rock.  This drill is ideal for minor bench drilling and other rock drilling applications, such as secondary drilling.
The lighter BBD 15E has ratchet-wheel rotation, with faster rotation and higher impact frequency, for drilling in soft to medium-hard rock.  The BBD 15E is designed for concrete drilling, drilling for smooth blasting and seam drilling - all of which require a high-performance, lightweight, easy-to-handle drill.

Part Number  Description  Shank Size (in) Weight(lbs)
Length
(in)
Air Consumption (cfm)
Impact Frequency (blows/min) Rotation Speed (rpm) Penetration Rate (in/min) Hose Connection (in) Price
AC-8311010402 BBD 15E 34 x 4 14 34 22 34 47 2520 220 8 34 58 $3,270.00
AC-8311010409 BBD 15E 78 x 3 14 34 22 34 47 2520 220 8 34 34 $2,635.00 $1,700.00
AC-8311010410 BBD 15E 78 x 4 14 34 22 34 47 2520 220 8 34 58 $3,270.00
AC-8311010413 BBD 15ET 78 x 4 14 34 22 34 47 2520 220 8 34 58 $3,270.00

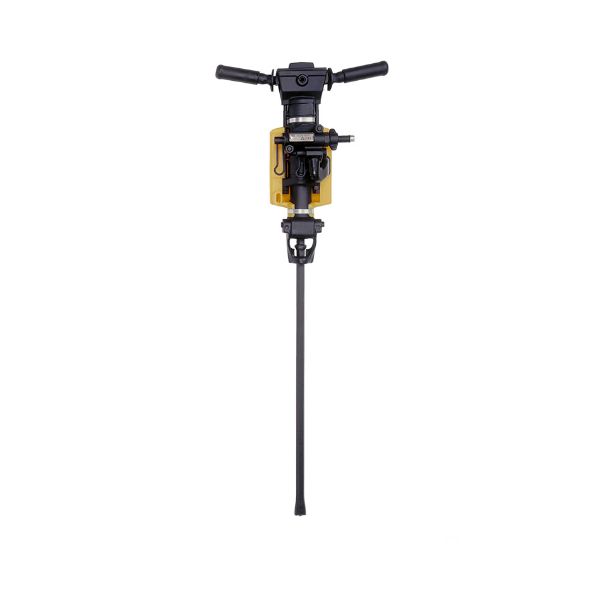

AC-8311030178 RH 572E 78 x 4 14 50 23 79 2040 170 10 14 34 CALL
8092011059 VAM 01 Water Seperator $267.83
3115154300 34" Hose Nipple  $10.89
9000010100 58" Hose Nipple  $6.43
9030206500 Rubber Hose with Claw Couplings  $104.54
3111018581 Rotation Chuck and Tool Bushing for RH 572 Drill   CALL
3115191400 Lifting Handle for RH 572 Drill   CALL
9238270790 Gauge   $2.34
-

-
