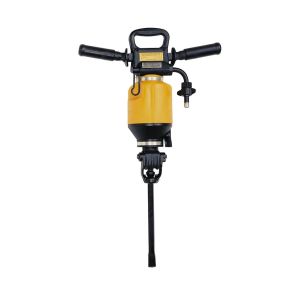

BBD 15E Rock Drill - 3/4 x 4-1/4
Light and easy to handle, BBD rock drills are ideal for those quick jobs and for working in difficult-to-get-to areas. They can be equipped with either D- or T-handles. The ratchet-wheel action provides faster rotation and higher impact frequency for drilling in soft to medium hard rock.
The Right Drill for Your Application
The light-weight BBD 12 rock drill is available in two versions. Equipped with a D-type handle, it is used for horizontal drilling, plug hole drilling, and drilling in concrete to a maximum depth of 1 meter. Equipped with T-handles, the BBD 12T is designed for vertical drilling of up to 3 meters.
The medium-weight BBD 15E has a combined "T/D Handle" for easy carrying. It offers a high power-to-weight ratio, plus high operational safety. The BBD 15E is equipped with spring-dampened handles and a highly effective silencer.
The largest BBD drill is available in a version with a trigger valve, BBD 15ET. Older machines can be retrofitted with a trigger conversion kit.
Features:
- Light weight for easy handling
- Built-in air-flushing gives faster blasting cycles
- Stepless throttle for easy collaring
- Robust kick-latch retainer - change steels quickly and easily
- Spring-dampened handles reduce vibrations by 75%
- Silencer in impact- and wear-resistant polyurethane reduces noise levels by more than 50%
** FREE SHIPPING within the Continental United States
SPECIFICATIONS
| BBD 15E | BBD 15ET | BBD 15ET | BBD 15ET | ||
| Rock Drill Type | Horizontal | Vertical | Vertical | Vertical | |
| Rock Drill Version | Silenced and vibro-reduced | Silenced and vibro-reduced | Silenced and vibro-reduced | Silenced and vibro-reduced | |
| Weight | lbs | 34 | 34 | 34 | 34 |
| Length | in | 22-5⁄8 | 22-5⁄8 | 22-5⁄8 | 22-5⁄8 |
| Air Consumption | cfm | 47 | 47 | 47 | 47 |
| Revolutions | rpm | 220 | 220 | 220 | 220 |
| Pentration Rate | in/min | 8 3/4 | 8 3/4 | 8 3/4 | 8 3/4 |
| Hose Connection | in | 5/8 | 3⁄4 | 5/8 | 5/8 |
| Impact Rate | bpm | 2520 | 2520 | 2520 | 2520 |
| Piston Diameter | in | 1-3⁄4 | 1-3⁄4 | 1-3⁄4 | 1-3⁄4 |
| Stroke Length | in | 1-9⁄16 | 1-9⁄16 | 1-9⁄16 | 1-9⁄16 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s2 | 7 | 7 | 7 | 7 |
| Sound Power Level Guaranteed, Lw (2000/14/EC) | dB(A) | 110 | 110 | 110 | 110 |
| Sound Pressure Level (ISO 11203) Lp, r=1m | dB(A) | 97 | 97 | 97 | 97 |
| Shank Size | in | 3⁄4 x 4-1⁄4 | 7/8 x 4-1/4 | 3⁄4 x 4-1⁄4 | 7/8 x 4-1/4 |
| Part number | AC-8311010402 | AC-8311010410 | AC-8311010412 | AC-8311010413 | |
$3,270.00
|
$3,270.00
|
$3,270.00
|
$3,270.00
|
CONSUMABLES
| Spare Parts List |
| Safety and Operating Instructions |
| VAM01 US Water Separator | 8092011059 | $267.83
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| VAM5A US Water Separator | 8092011083 | $zzcp1 | Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Line Oiler | LO-10PF | $81.00
|
||||
| Rubber Hose with Couplings | 9030206500 | $104.54
|
Whip Check | WCSML | $11.00
|
|
| Hose Nipple - 15E | 3115154300 | $10.89
|
Contractors Air Hose | AIRH-19-50R | $124.00
|
|
| 7/8" Template Gauge | 9238270790 | $2.34
|
Air King Universal Coupling | AM8 | $12.00
|
|
| Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
Dust Control Spray Kit | 9753300015 | $146.87
|
