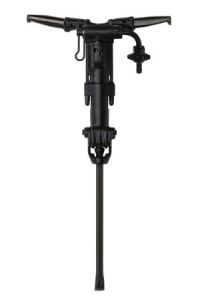

BBD 12T-01 Rock Drill
Light and easy to handle, BBD rock drills are ideal for those quick jobs and for working in difficult-to-get-to areas.
They can be equipped with either "D" or "T" handles.
The ratchet-wheel action provides faster rotation and higher impact frequency for drilling in soft to medium hard rock.
The Right Drill for Your Application
- The light-weight BBD 12 rock drill is available in two versions.
- Equipped with a "D" type handle, it is used for horizontal drilling, plug hole drilling, and drilling in concrete with a maximum depth of 1 meter.
- Equipped with "T" handles, the BBD 12T is designed for vertical drilling of up to 3 meters.
- Older machines can be retrofitted with a trigger conversion kit.
Features:
- Light weight for easy handling
- Built-in air-flushing gives faster blasting cycles
- Stepless throttle for easy collaring
- Robust kick-latch retainer - change steels quickly and easily
- Spring-dampened handles reduce vibrations by 75%
- Silencer in impact- and wear-resistant polyurethane reduces noise levels by more than 50%
** FREE Ground shipping within the Continental United States
SPECIFICATIONS
| Model | BBD 12T-01 | BBD 12TS-01 | |
| Rock Drill Type | Vertical Down | Vertical Down | |
| Rock Drill Version | Standard | Silenced | |
| Weight | lbs | 24 | 27 |
| Length | in | 19-7⁄8 | 19-7⁄8 |
| Air Consumption | cfm | 51 | 47 |
| Revolutions | rpm | 220 | 220 |
| Hose Connection | in | 5/8 | 5/8 |
| Impact Rate | bpm | 2580 | 2520 |
| Piston Diameter | in | 1-3⁄4 | 1-3⁄4 |
| Penetration Rate | in/min | 6 | 6 |
| Stroke Length | in | 1-9⁄16 | 1-9⁄16 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s2 | 16 | 16 |
| Sound Power Level Guaranteed, Lw (2000/14/EC) | dB(A) | 116 | 116 |
| Sound Pressure Level (ISO 11203) Lp, r=1m | dB(A) | 103 | 103 |
| Shank Size | in | 7⁄8 x 4-1⁄4 | 7⁄8 x 4-1⁄4 |
| Part Number | AC-8311010295 | AC-8311010298 | |
$2,550.00
|
$2,760.00
|
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
CONSUMABLES
| H & D Threaded Steel and Bits |
ACCESSORIES & COMMON REPLACEABLE PARTS
| Rubber Hose with Coupling and Clamp | 9030206400 | $93.10
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| VAM 01 Water Seperator | 8092011059 | $267.83
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Drill Chuck - 7⁄8 x 4-1⁄4 | 3111006600 | $183.24
|
Line Oiler | LO-10PF | $81.00
|
|
| Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
Whip Check | WCSML | $11.00
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Air King Universal Coupling | AM8 | $12.00
|
