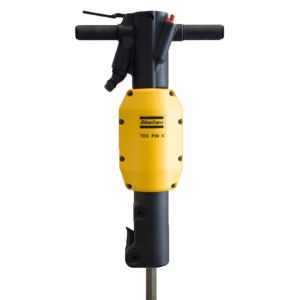

TEX P90 Silenced Paving Breaker
With the TEX P60 and TEX P90 we concentrate on two key factors for demanding customers: Performance and reliability. The TEX P60 and TEX P90 are designed, just like the TEX 140 - 280 series, from a one piece, solid-cast housing, which eliminates the need for separate front heads, back heads and side bolts. This design means 30% fewer parts than in traditional breakdowns.
The TEX P90 is the most hard hitting breaker in the TEX range and ideal for demanding demolition jobs in hard materials.
Minimal parts inventory and easy service
All but three parts in the TEX P60 and TEX P90 are interchangeable, so your spare parts inventory can be kept to a minimum. These heavy-duty breakers allow extremely fast and easy on-site service. A hammer and a mandrel are all you need for almost any service task, wherever you are.
Features:
- Easy to maneuvre - With a low center of gravity, these breakers are well balanced and easy to handle. The unique air inlet swivel, which can be rotated even when pressurized, make the TEX breakers still easier to maneuvre.
- Reduced wear - The anvil block, a tried and tested design from earlier heavy models, not only helps handle the great impact energy, but also helps avoid damage to the hammer mechanism from worn out chisel shanks.
- Controlled power - There is power in abundance, but it is easy to control. Thanks to the SOFSTART™ two-step trigger, the operator can begin to hammer slowly, setting the chisel where it's needed, without a lot of wasted effort.
- Full-shift lubricator - The built-in lubricator ensures sufficient lubrication to minimize tool wear. It is easily accessible, accepts both mineral and synthetic oils and holds enough oil for an entire shift.
- Air-custioned action - TEX P60 and P90 feature air-custioned piston return. This means less vibration during back hammering and blank hammering, which reduces stress on man and machine.
- Optional silencer - The silencer, available as an option, significantly reduces the noise level. Thanks to its slim design, it provides a full view of the chisel and work-piece for maximum control.
Typical application areas:
- General demolition
- For use in medium and hard materials
- TEX P60 - asphalt
- TEX P90 - hard and reinforced concrete
** FREE Ground shipping within the Continental United States
SPECIFICATIONS
| Breaker Type | Standard | Standard | |
| Breaker Version | Silenced | Silenced | |
| Shank Size | in | 1⁄8 x 6 | 1/4 x 6 |
| Weight | lb | 101 | 101 |
| Length | in | 28 | 28 |
| Air Consumption | cfm | 85 | 85 |
| Impact Rate | bpm | 1260 | 1260 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s2 | 16.8 | 16.8 |
| Sound Power Level Guaranteed, Lw (2000/14/EC) | dB(A) | 109 | 109 |
| Sound Pressure Level (ISO 11203) Lp, r=1m | dB(A) | 97 | 97 |
| Part Number | AC-8461022822 | AC-8461022823 | |
$1,475.00
|
$1,475.00
|
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
CONSUMABLES
| Paving Breaker Tools |
| Post Driver Tools |
ACCESSORIES & COMMON REPLACEABLE PARTS
| Universal Claw Coupling - Complete | 9001000506 | $16.92
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Gauge - 1" Hex | 3310150925 | $28.12
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Gauge - 1-1/8" Hex | 3310150928 | $30.22
|
Line Oiler | LO-10PF | $81.00
|
|
| Hose Whip Assy w/ 3.7oz Lubricator | TX7HW | $99.10
|
Whip Check | WCSML | $11.00
|
|
| Air King Universal Coupling | AM8 | $12.00
|
Contractors Air Hose | AIRH-19-50R | $124.00
|
|
| Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
Hose Whip Assy w/ 11 oz Lubricator | TX11HW | $117.40
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
