What more could you want from a class of heavy pneumatic breakers: good power-to-weight ratio, reduced noise and vibration, and extremely durable and productive. For years, these heavy TEX breakers have been proving their value to customers worldwide, under the most demanding of conditions.

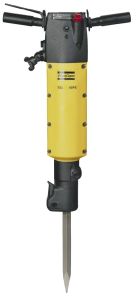

This series incorporates the TEX 33PE and TEX 40PE with spring dampened handles allowing up to 7 times the trigger time of conventional fixed-handled machines at a given level of vibration-exposure for the operator. By reducing the in-use vibration value of the machine, Atlas Copco's HAPS system decreases the negative effects of harmful vibration at a given trigger time. Coupled with the slim silencers, which reduce the noise level by up to 75%, while still providing full view of the chisel, you have machines that can be used for a prolonged period and are extremely productive.

The various models in the series have many common parts and therefore your parts inventory can be kept to a minimum.

Features:

• The slim silencer cuts noise level by up to 75% (as compared to the same machine without noise reduction) and provides the operator with a full view of the chisel.
• The long piston head gives very good guidance in the cylinder, which reduces wear on both components.
• Reduced wear - The anvil bock, a tried and tested design from earlier heavy models, not only helps handle the great impact energy, but also helps avoid damage to the hammer mechanism from worn out chisel shanks.
• The air inlet swivel can be rotated when needed - even when pressurized.  This makes the TEX breaker one very maneuverable machine and together with its excellent balance, gives the oeprator an easy machine to work with, even under difficult worksite conditions.
• An integrated lubricator helps minimize tool wear.  It holds enough lubricant to last an entire shift.  In freezing conditions, it can also be used for anti-freeze.
• Spring dampened handles reduce the negative effects of harmful vibrations
• Air cushioned action - When the machines are working off-load, the piston turns on air cushions at either end of the cylinder, virtually eliminating metal-to-metal contact and reducing vibration and wear.

Typical application areas:

• General demolition
• For use in medium and hard materials such as asphalt and concrete

** FREE Ground shipping within the Continental United States

SPECIFICATIONS

Breaker Type		Vibro-Reduced	Vibro-Reduced
Breaker Version		Silenced	Silenced
Shank Size	in	1⁄8 x 6	1/4 x 6
Weight	lb	93	93
Length	in	30	30
Air Consumption	cfm	85	85
Impact Rate	bpm	1110	1110
Vibration Level 3 Axes (ISO 28927-10)	m/s2	4.2	4.2
Sound Power Level Guaranteed, Lw (2000/14/EC)	dB(A)	111	111
Sound Pressure Level (ISO 11203) Lp, r=1m	dB(A)	99	99
Part Number		AC-8461022805	AC-8461022804
		$1,815.00	$1,815.00

DOCUMENTATION

CONSUMABLES

ACCESSORIES & COMMON REPLACEABLE PARTS

Universal Claw Coupling - Complete	9001000506	$16.92		Rock Drill Oil - 1 Gal	RDO1G	$42.00
Gauge - 1" Hex	3310150925	$28.12		Rock Drill Oil - 5 Gal	RDO5G	$122.00
Gauge - 1-1/8" Hex	3310150928	$30.22		Line Oiler	LO-10PF	$81.00
Hose Whip Assy w/ 3.7oz Lubricator	TX7HW	$99.10		Whip Check	WCSML	$11.00
Air King Universal Coupling	AM8	$12.00		Contractors Air Hose	AIRH-19-50R	$124.00
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills	PB-RD-VDEX-KIT	$1,545.00		Hose Whip Assy w/ 11 oz Lubricator	TX11HW	$117.40
Dust Control Spray Kit	9753300015	$146.87
