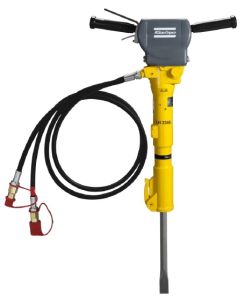

LH 190E Paving Breaker Vibration Reduced
Lightweight, multi-purpose breakers used to break brickwork, frozen soil, asphalt, concrete, as well as for tamping and compaction. The breakers are popular with contractors and rentals for indoor and outdoor renovation and demolition jobs, and are the preferred choice for major railroad companies in tie tamping applications.
Features:
- Vibro-reduction
- Low noise levels
- Slim design
- High power to weight ratio
Applications
- Medium and hard materials as asphalt and concrete
SPECIFICATIONS
| Description |
LH 180 BSP |
LH 180 BSP |
LH 180 BSP |
LH 190E |
LH 190E |
LH 190E |
LH 190E TT |
|
| Weight | lbs | 55 | 55 | 55 | 55 | 72 | 55 | 55 |
| Breaker Version | Vibro-reduced | Vibro-reduced | Vibro-reduced | |||||
| Shank Size | in | 1 x 4-1⁄4 | 1-1/8 x 6 | 1-1/4 x 6 | 1 x 4-1⁄4 | 1-1/8 x 6 | 1-1/4 x 6 | 1 x 4-1⁄4 |
| Length | in | 26 | 26 | 26 | 26 | 26 | 26 | 26 |
| Oil Flow | gpm | 5 | 5 | 5 | 5.3 | 5 | 5.3 | 5.3 |
| Working Pressure | psi | 1378-1595 | 1378-1595 | 1378-1595 | 1378-1595 | 1378-1595 | 1378-1595 | 1378-1595 |
| Maximum Back Pressure | psi | 145 | 145 | 145 | 145 | 145 | 145 | 145 |
| Impace Rate | bpm | 1300-1400 | 1300-1400 | 1300-1400 | 1300-1400 | 1300-1400 | 1300-1400 | 1300-1400 |
| Vibration Level 3 Axes (ISO 28927-10)*, 1 lpm | m/s2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Sound Power Level Guaranteed, Lw (2000⁄14/EC)* | dB(A) | 107 | 107 | 107 | 107 | 106 | 107 | 107 |
| Sound Pressure Level (ISO 11203)* Lp, r=1m | dB(A) | 93 | 93 | 93 | 93 | 93 | 98 | 93 |
| EHTMA Class | C | C | C | C | C | C | C | |
| Part No | AC-1801344336 | AC-1801344337 | AC-1801344339 | AC-1801344341 | AC-1801364360 | AC-1801344344 | AC-1801344379 | |
|
$1,440.00 $770.00 |
$1,440.00 $770.00 |
$1,440.00 |
$2,385.00
|
$2,720.00
|
$2,455.00
|
$1,714.00 $550.00 |
25CONSUMABLES
| Paving Breaker Tools |
| Post Driver Tools |
DOCUMENTATION
| Spare Parts List | ||
| Safety and Operating Instructions | ||
| Hydraulic Power Pac Information | ||
ACCESSORIES & COMMON REPLACEABLE PARTS
| 1801163319 | OFD5 Oil Flow Divider | $1,202.66
|
||||
| AC-1801164232 | OFD 30 Oil Flow Divider | $1,519.61
|
3371814058 | Trigger Valve Kit | $262.49
|
|
| AC-3371801087 | Twin Extension Hose - 23' | $1,033.09
|
3371814065 | Accumulator Kit | CALL | |
| AC-3371801089 | Twin Extension Hose - 39' | $1,307.98
|
3371801083 | Complete Connection Hose | $238.59
|
|
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kti for Paving Breakers & Rock Drills | $1,545.00
|
3371821095 | Label Kit | $46.46
|
|
| 9753300015 | Dust Control Spray Kit | $146.87
|
3371814021 | Seal Kit | $149.63
|
