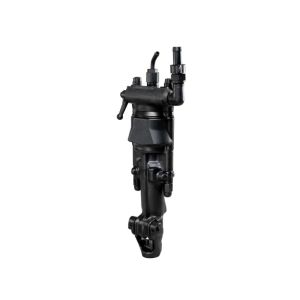

BBD 94DSI Rock Drill
This light pneumatic rock drill has been designed especially for use in the dimension stone industry, drilling holes of 27 – 41 mm (1-1 5⁄8 in). The BBD drill is well-proven and come equipped with an Hex 22 (7⁄8") shank and air flushing as standard (water flushing is available as option). The machine can be equipped with cable or chain feeds, subject to the conditions overleaf. Thanks to stringent quality control of materials and the manufacturing process you will get consistently high performance, reliability and long service life.
Features:
- High performance rock drill for soft to hard rock
- Short stroke and high impact rate makes it ideal for soft rock
- Large piston diameter for high efficiency even at low air pressure
- Ratchet wheel rotation mechanism
Applications:
- Dimension stone industry (DSI)
- Marble and granite quarries
- Cable chain feed drilling
** FREE SHIPPING within the Continental United States
SPECIFICATONS
| AC-8311020610 | $4,498.00
|
| Rock Drill Type | Dimension Stone Rock Drill |
| Rock Drill Version | Standard |
| Weight (lbs) | 62 |
| Length Retracted (in) | 26-3⁄8 |
| Air Consumption (cfm) | 206 |
| Impact Rate (blows/min) | 3300 |
| Piston Diameter (in) | 3-17⁄32 |
| Stroke Length (in) | 1-3⁄4 |
| Largest Reaming Diameter (in) | 2-31⁄32 |
| Hole Diameter (in) | 1 - 1.6 |
| Vibration Level 3 Axes (ISO 28927-10) | 15 m/s2 |
| Sound Power Level Guaranteed, Lw (2000/14/EC) | 125 dB(A) |
| Sound Pressure Level (ISO 11203) Lp, r=1m | 114 dB(A) |
| Shank Size (in) | 7⁄8 x 4-1⁄4 |
CONSUMABLES
| Tapered Drill Steel |
| Tapered Rock Bits |
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
ACCESSORIES & COMMON REPLACEABLE PARTS
| VAM 5A US Water Separator | 8092011083 | $1,516.87
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| 1" Hose Nipple | 9000032600 | CALL | Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Compressed Air Hose w/ 1" Fittings | 9030205100 | CALL | Line Oiler | LO-10PF | $81.00
|
| Water Flushing Hose w/ 1/2" Fittings | 9030206900 | $96.65
|
Whip Check | WCSML | $11.00
|
| Pressure Gauge for Compressed Air & Water Pressure | 9090055080 | CALL | Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| Chuck Bushing Gauge | 3091003800 | CALL | Air King Universal Coupling | AM8 |
$12.00 |
| Water Flushing Conversion Kit | 3121500007 | CALL | Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
| Side Bolt Kit | 3121500029 | $104.47
|
Dust Control Spray Kit | 9753300015 | $146.87
|
| Seal Kit | 3121500092 | $41.86
|
