Rivet Busters

Choosing a Breaking Tool

The APT Model 633, 133 and 1133 Rivet Busters were originally designed to cut rivets off metal structures.  Today the Rivet Buster series is widely known for its tough, powerful tools. They have the ability to perform all types of medium to heavy demolition work. With half the weight of the 60lb. class paving breakers, the ratio of their high impact energy versus their weight makes them the most efficient tool APT makes. The model 133 meets the weight requirements for bridge deck repair work, and are also popular for cutting up underground tanks.

Closed-Nose Features:

  • New closed-nose cylinder captivates the piston, thus adding an extra layer of safety.  Includes traditional retainer system.
  • Choice of 2 handle styles, available in all stroke sizes:  New Pistol-grip style handle with outside trigger or the Classic "D" style handle with inside trigger
  • Three stroke sizes:  6", 8" and 11"
  • Uses jumbo extra heavy steel
  • Deep case hardened alloy steel cylinder
  • Heavy-duty upper and lower sleeves
  • Adjustable exhaust deflector
  • Teflon throttle valve

All styles use JUMBO 11X steel

Comes with Whip Hose Assembly - UF, 12" Hose x 6' with 12" NPT Swivel and standard universal coupling

** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES

paving breaker

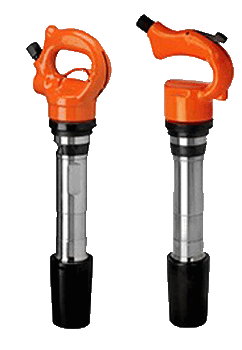

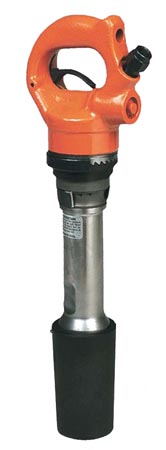

Model 633 6" Stroke Rivet Buster

Description   633 CN 633CN
Part No   18849 18848
Price   $1,460.00 $1,460.00
Bore in 1-316 1-316
Stroke in 6 6
Impact Rate bpm 1100 1100
Air Consumption cfm 42-46 42-46
Weight lbs 28 28
Cylinder Style   Closed Nose Closed Nose
Handle Style   Pistol-Open D-Closed
paving breaker

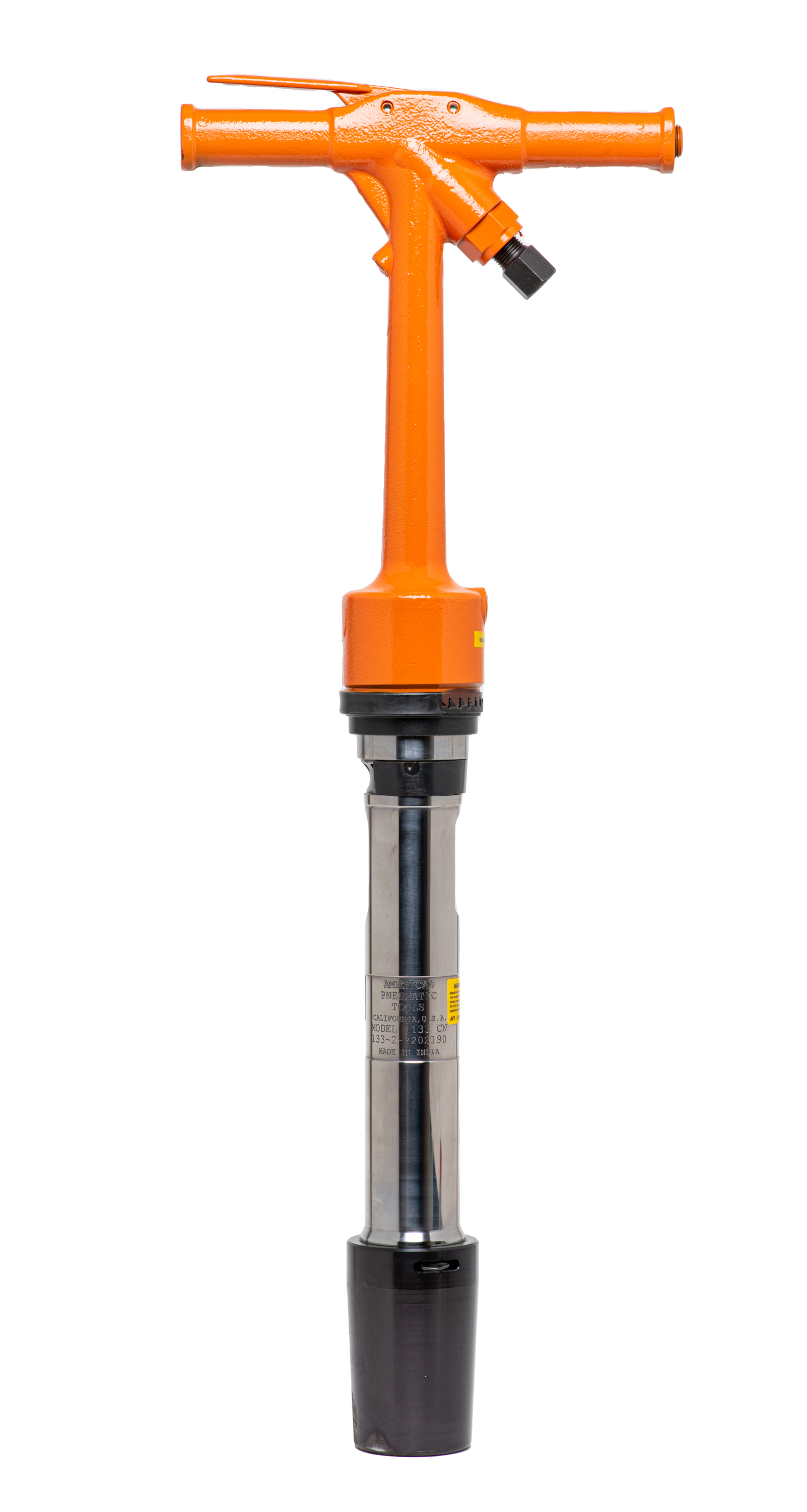

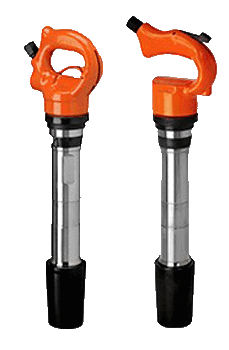

Model 133 8" Stroke Rivet Buster

Description   133CN 133CN 133CN
Part No   18757 18768 19444
Price   $1,520.00 $1,520.00 $1,590.00
Bore in 1-316 1-316 1-316
Stroke in 8 8 8
Impact Rate bpm 1140 1140 1140
Air Consumption cfm 42-46 42-46 42-47
Weight lbs 30 30 36
Cylinder Style   Closed Nose Closed Nose Closed Nose
Handle Style   Pistol - Open D-Closed T-Handle
paving breaker

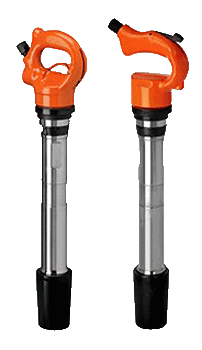

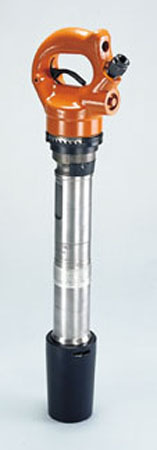

Model 1133 11" Stroke Rivet Buster

Description   1133CN 1133CN 1133CN
Part No   18847 18846 19060
Price   $1,665.00 $1,665.00 $1,770.00
Bore  in 1-316 1-316 1-316
Stroke in 11 11 11
Impact Rate bpm 850 850 850
Air Consumpation cfm 48-52 48-52 48-52
Weight lbs 33 33 39
Cylinder Style   Closed Nose Closed Nose Closed Nose
Handle Style   Pistol - Open D - Open T-Handle
