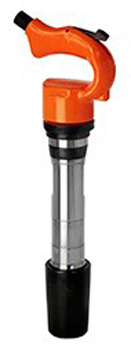

APT 633 Pneumatic Closed Nose Rivet Buster - 6" Stroke, Pistol Grip Handle
The APT model 633 Closed Nose Rivet Buster was originally designed to cut rivets off metal structures. Today the rivet buster series is widely known for its tough, powerful tools. They have the ability to perform all types of medium to heavy demolition work. With half the weight of the 60 lb. class paving breaker, the ratio of their high impact energy versus their weight makes them the most efficient tool APT makes. The model 633 meets the weight requirements for bridge deck repair work, and are also popular for cutting up underground tanks. Rivet busters are offered in 6", 8" and 11" stroke.
The APT model 633 Rivet Buster measures only 20-5⁄8" in length, delivering more power to those tight spaces. Weighing just 28 lbs., it's perfect for limited access work or whenever a compact, light weight and powerful tool fits the bill. This tool features an innovative cylinder design that reduces overall weight without compromising tool strength or hitting force.
Features:
- Deep case hardened alloy steel cylinder
- Uses jumbo extra heavy-duty tool steel
- Heavy-duty upper and lower sleeves
- Adjustable exhaust deflector
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES FOR NON-DEALERS
SPECIFICATIONS
| 18849 | $1,460.00
|
|
| Handle Style | Pistol Grip | |
| Bore | in | 1-3⁄16 |
| Stroke | in | 6 |
| Impact Rate | bpm | 1100 |
| Air Consumption | cfm | 42-46 |
| Weight | lbs | 28 |
| Length | in | 20-5⁄8 |
| Air Inlet | in | 1⁄2 Female NPT |
**Price includes Whip Hose Assembly (#18833) - UF, 1⁄2" Hose x 6' with 1⁄2" NPT swivel and standard universal coupler
CONSUMABLES
| Rivet Buster Tools |
DOCUMENTATION
| Spare Parts List |
| Maintenance and Repair Information |
ACCESSORIES & COMMON REPLACEABLE PARTS
| Retainer Kit (incl. spring, bumper, upper and lower sleeves) | 18741 | $42.45
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| Lower Sleeve | 3171 | $25.35
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Upper Sleeve | 4374 | $18.52
|
Line Oiler | LO-10PF | $81.00
|
| Bumper | 3170 | $8.01
|
Whip Check | WCSML | $11.00
|
| Polyurethane Bumper | 16543 | $10.55
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| Lock Spring | 2994 | $6.22
|
Whip Hose Assy - 6'x ½" Hose with ½" NPT Swivel | 18833 | $75.64
|
| Bag of 25 Lock Springs | USPRG-RB-BAG | $62.00
|
Whip Hose Assy - 6' x ½" Hose with ½" NPT Swivel & 2L Oiler | 18837 | $174.04
|
| O-Ring and Seal Kit | 18785 | $94.12
|
Dust Control Spray Kit | 9753300015 | $146.87
|
| Dust Extraction Kit for Rivet Busters | RB-VDEX-KIT | $1,480.00
|
