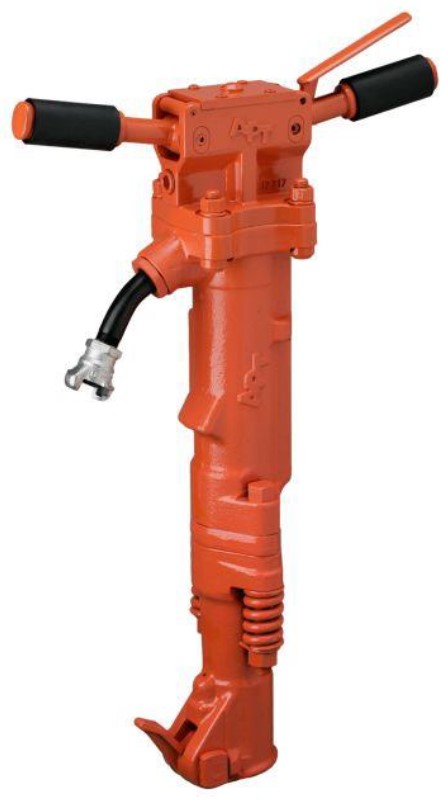

APT 190A Pneumatic Airgo Ergonomic Paving Breaker - 1-1/8 x 6
The Model 190A Airgo-Line Paving Breaker is a 90lb class tool. The ergonomically designed handle helps reduce harmful vibration to the hands and arms of the operator. The versatile tool is based on the standard Model 190, the tool being easily converted to the standard handle or ergonomic handle or vice-versa. No power is lost from the standard tool but does increase efficiency and output due to the reduction in operator fatigue.
Tough and dependable, the high performance Model 190 Paving breaker is the most powerful tool American Pneumatic Tool makes. It is designed for big jobs such as heavy demolition and concrete breaking. Since the Model 190 has the ability to penetrate the hardest concrete, it is the tool of choice for road building and foundation removal.
Features
- Airgo-Line Ergonomic Back Head (interchangeable with standard Back Head) reduces operator fatigue
- Automatic valves
- Drop forged, alloy steel handle
- Built-in automatic oiler
- Rubber handle grips
- Latch type retainer
- Swivel hose connection with universal coupler
- Noise dampening mufflers available
- Four-bolt back head
Mufflers sold separately
** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES
SPECIFICATIONS
| 18618 | $1,705.00
|
|
| Chuck Size | in | 1-1⁄8 x 6 |
| Bore | in | 2-5⁄8 |
| Stroke | in | 6-1⁄8 |
| Impact Rate | bpm | 1350 |
| Air Consumption | cfm | 75-80 |
| Weight | lbs | 90 |
| Length | in | 31 |
| Air Inlet | in | 3⁄4 Male NPT |
CONSUMABLES
DOCUMENTATION
ACCESSORIES & COMMON REPLACEABLE PARTS

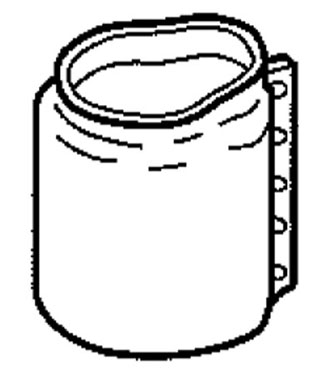

| Muffler | 17753 | $225.51
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| Latch Kit - incl. latch retainer, bolt, bushing, spring, nut, plunger and washer | 18296 | $136.35
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Side Kit - incl. bolt, spring, lock nut and nut | 18581 | $112.47
|
Line Oiler | LO-10PF | $81.00
|
| Hose Whip Assy (3⁄4" x 8' Hose, Univ. Fittings, 2L Line Oiler) | 19059 | $229.34
|
Whip Check | WCSML | $11.00
|
| O-Ring, Seal and Repair Kit | 18780 | $33.21
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Air King Universal Coupler | AM8 | $12.00
|
| Dust Extraction Kit for Paving Breakers & Rock Drills (incl. TAM3P Pail & Vacuum Hose) | PB-RD-VDEX-KIT | $1,545.00
|
