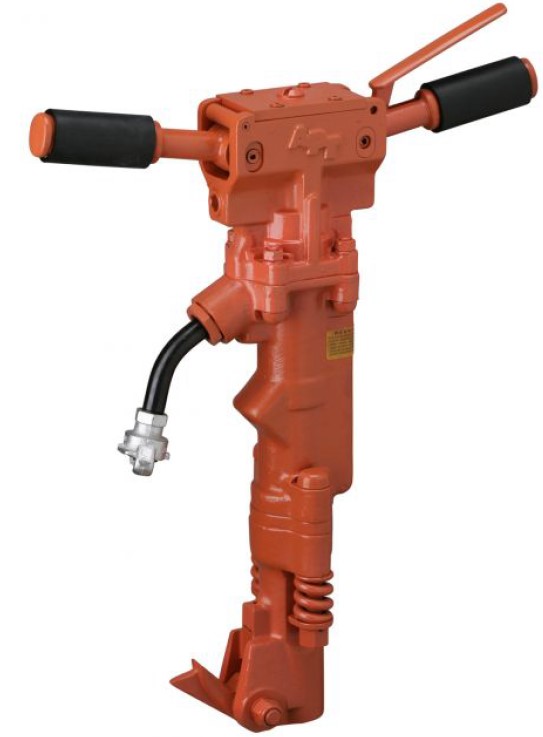

APT 140A Pneumatic Airgo Ergonomic Paving Breaker
The Model 140A Airgo-Line Paving Breaker is a 40lb class tool. The ergonomically designed handle helps reduce harmful vibration to the hands and arms of the operator. This versatile tool is based on the standard Model 140, the tool being easily converted to the standard handle or ergonomic handle or visa-versa. No power is lost from the standard tool but does increase efficiency and ouput due to the reduction in operator fatigue.
The Model 140 is a rugged, yet lightweight Paving Breaker designed for light to medium construction work. It is ideally suited for plant maintenance, such as light demolition of floors, masonry walls, pavement, and frozen ground. This tool is also very popular for bridge deck jobs.
Features
- Airgo-Line Ergonomic Back Head (interchangeable with standard Back Head) reduces operator fatigue
- Automatic valves
- Drop forged, alloy steel handle
- Built-in automatic oiler
- Rubber handle grips
- Latch type retainer
- Swivel hose connection with universal coupler
- Noise dampening mufflers available
- Four-bolt back head
Mufflers sold separately
** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES
SPECIFICATIONS
| 18041 | $1,520.00
|
|
| Chuck Size | in | 1 x 4-1⁄4 |
| Bore | in | 1-7⁄8 |
| Stroke | in | 4-1⁄4 |
| Impact Rate | bpm | 1500 |
| Air Consumption | cfm | 48 |
| Weight | lbs | 46 |
| Length | in | 24 |
| Air Inlet | in | 1⁄2 Male NPT |
CONSUMABLES
DOCUMENTATION
ACCESSORIES & COMMON REPLACEABLE PARTS
| Muffler | 18099 | $225.51
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| Latch Kit - incl. latch retainer, bolt, bushing, spring, nut, plunger and washer | 18301 | $91.74
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Side Kit - incl. bolt, spring, lock nut and nut | 18299 | $157.75
|
Line Oiler | LO-10PF | $81.00
|
| Hose Whip Assy (3⁄4" x 8' Hose, Univ. Fittings, 2L Line Oiler) | 19059 | $229.34
|
Whip Check | WCSML | $11.00
|
| O-Ring, Seal and Repair Kit | 18776 | CALL | Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 11 oz Lubricator | TX11HW | $117.40
|
| Dust Extraction Kit for Paving Breakers & Rock Drills (incl. TAM3P Pail & Vacuum Hose) | PB-RD-VDEX-KIT | $1,545.00
|
