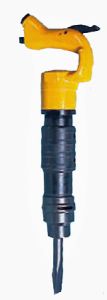

TEX 317 & 318 Chipping Hammer
Screw-on Handle with Outside Trigger, Standard Spring Retainer
TEX 317, 318, 319, and 419 are powerful chipping hammers equipped with rugged handles. Designed to provide years of trouble-free service, these hammers are equipped with oil-resistant neoprene exhaust deflectors and available with your choice of .580" hex or .680" round bushings.
Optional ball retainer is available on TEX 317, 317D, 319 and 419 models.
***Shipped with 6' hose whip - 3/8" NPT swivel
SPECIFICATIONS
| Description | Part No | Tool Retainer | Handle Type | Weight (lbs) | Length (in) | Air Consumption (cfm) | Impact Rate (bpm) | Shank Size (in) | Price |
| TEX 317P | AC-9238981760 |
Standard Spring |
Open Handle Outside Trigger |
17 | 15 | 32 | 2200 | .580 Hex | $605.00
|
| TEX 317P | AC-9238981750 |
Standard Spring |
Open Handle Outside Trigger |
17 | 15 | 32 | 2200 | .680 Round | $605.00
|
| TEX 317D | AC-9245998305 |
Standard Spring |
D-Handle | 17 | 15.25 | 36 | 2200 | .580 Hex | $605.00
|
| TEX 318P | AC-9238981765 | Cap |
Open Handle Outside Trigger |
17 | 15 | 32 | 2200 | .580 Hex | $605.00
|
| TEX 318P | AC-9245996940 | Cap |
Open Handle Outside Trigger |
17 | 15 | 32 | 2200 | .680 Round | $595.00
|
| TEX 318D | AC-9245998308 | Cap | D-Handle | 18 | 16 | 32 | 2200 | .580 Hex | $575.00
|
CONSUMABLES
| Chipping Hammer Tools |
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions - Not available at this time |
ACCESSORIES & COMMON REPLACEABLE PARTS
| Complete Retainer | P107243 | $139.14
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Bushing - Round | P001550 | $38.79
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Bushing - Hex | P001551 | $38.79
|
Line Oiler | LO-10PF | $81.00
|
|
| Retainer Lock Spring | P070994 | $7.51
|
Whip Check | WCSML | $11.00
|
|
| Bag of 25 Universal Retainer Lock Spring | USPRG-CH-BAG | $60.00
|
Contractors Air Hose | AIRH-19-50R | $124.00
|
|
| Water Separator - 3/4" NPT | 8900005001 | $308.49
|
Hose Whip Assy w/ 1.4oz Lubricator | TX2HW | $86.65
|
|
| Vacuum Dust Extraction Kit | CH-VDEX-KIT | $1,371.43
|
Hose Whip Assy w/ 3.7oz Lubricator | TX5HW | $99.10
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip - 10' x 1/2" red hose, 3/8" NPT BENT swivel | 9246020363 | $122.89
|
|
| Hose Whip - 6' x 1/2" Heavy Duty Black Hose, 3/8" Male Universal STRAIGHT Connection | 18839 | $77.92
|
