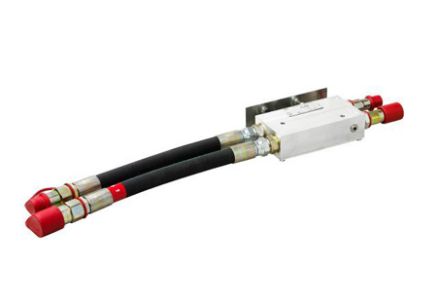

OFD30 Oil Flow Divider
OFD 30, 31GMP MAX FLOW - The oil flow divider allows you to run tools from hydraulic-powered carriers by reducing flow and pressure. An extension hose is required to connect the divider to the tool.
Features:
- Built-in adjustable pressure relief valve
- Connect hydraulic tools to different power sources such as excavators, trucks, skid-steers and tractors
** FREE SHIPPING within the Continental United States
| Specifications | |
|---|---|
| AC-1801164232 | $1,519.61
|
| Maxmimum Oil Flow (gpm) |
31 |
| Regulated Oil Flow (gpm) | 396-476 |
| Pressure Limiting Valve - Adjustable (psi) | 0-3046 |
| Pump Connection (female) | 3⁄4" |
| Tank Connection (male) | 3⁄4" |
| Tool Connection - Pressure (male) | 1⁄2" |
| Tool Connection - Tank (female) | 1⁄2" |
| EHTMA Class | D |
| Documentation |
|---|
| Spare Parts List |
| Safety and Operating Instructions |
| Accessories: | ||
|---|---|---|
| AC-3371801087 | Twin Extension Hose - 23' | $1,033.09
|
| AC-3371801089 | Twin Extension Hose - 39' | $1,307.98
|
